AK-UC3300GSJ

Name: AK-UC3300GSJ
Brand: Panasonic
SKU: AK-UC3300GSJ
Price: 23017.84 EUR
Availability: OutOfStock

Panasonic

EAN: 4010869302982

Native 4K studio camera 12G-SDI output/ TICO over SDI output BT.2020

go to the technical sheet

€ 23.017,84

€ 21.411,94 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

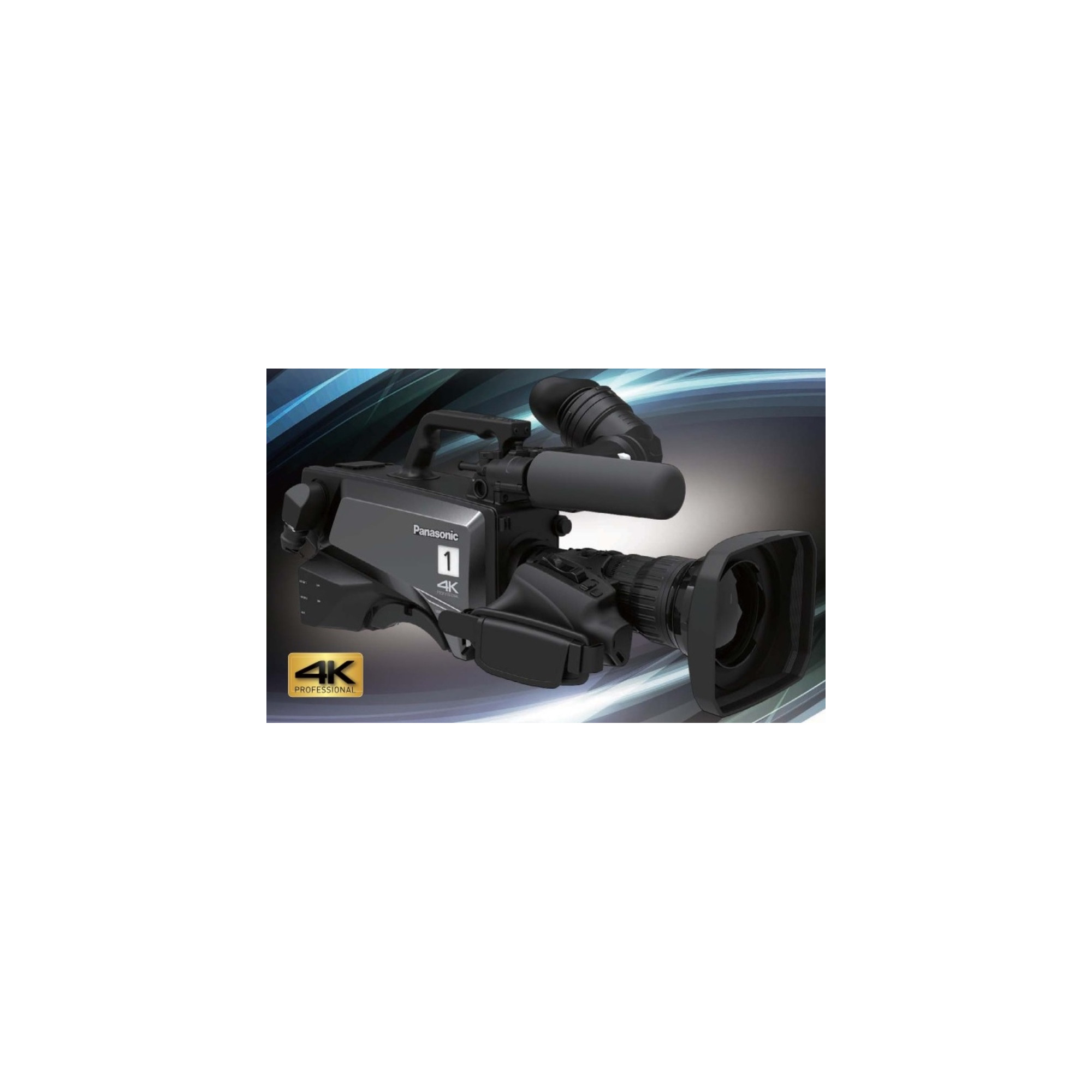

The AK-UC3300 4K studio camera system is designed for professional broadcast use. Equipped with a 11-megapixel sensor, it is ideal for high-resolution 4K video shooting. A 2x HD high-speed video shooting function provides excellent operability when shooting rapid movements such as during sports and live events.
Key features

4K video output with horizontal / vertical resolution of 2,000 TV lines with a large 11-megapixel image sensor.
Supports 1/100 second high-speed reading to rolling shutter distortion.
Supports High Dynamic Range (HLG) and ITU-R BT.2020 wide color space.(with AK-UCU600 connected)
Supports HD Hi-Speed (2x).(with AK-UCU600 connected)
12G-SDI output/ TICO over SDI output /(with AK-UCU600 connected).SMPTE ST2110 supported with optional(with AK-NP600).

Upgrade to a Studio Camera that Delivers Today and For Tomorrow: Shoot HD and 4K with the AK-UC3300

Capture memorable moments with the AK-UC3300 studio camera system from Panasonic. Designed to deliver HD and 4K video, our latest studio camera is ideal for shooting a variety of productions for TV broadcast, worship services, education and more.

Realize Excellent Color Reproduction with High Sensitivity and Low Noise

The AK-UC3300GJ/UC3300GSJ 4K Studio Camera is equipped with a large 11-megapixel sensor. Oversampling obtains high-resolution 4K video shooting with a horizontal resolution of 2,000 TV lines while an S/N ratio of 62 dB or more is maintained at high sensitivities. In addition to the 2x speed HD high-speed shooting function, the skew reduction function realized through the high reading speed (1/100 of a second) provides excellent operability when shooting rapid movements such as during sports and live events.

Multiformat Support and Flexible Operation

Shoot in 4K and HD with simultaneous UHD and HD output. This studio camera can be adapted to the application. Support various next-generation production environments by combining with AK-UCU600PJ / UCU600EJ / UCU600PSJ / UCU600ESJ Camera Control Units (CCU) to deliver 12G-SDI output, TICO*1 over SDI output and SMPTE ST2110*2 output.

Supported Formats
UHD 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/23.98p, 2160/29.97PsF, 2160/25PsF, 2160/23.98PsF, 2160/23.98PsF & over 59.94i
HD 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF
720/59.94p, 720/50p
HD (High Speed) 1080/59.94p-120fps, 1080/50p-100fps, 1080/59.94i-120fps, 1080/50i-100fps, 720/59.94p-120fps, 720/50p-100fps

Live Video Equipment Lens B4 2/3" Monitors Camcorders - Accessories

Panasonic

AK-UCU500EJ

€ 12.929,22 VAT included

Available in 14 days

Panasonic

AK-MSU1000GJ

€ 15.437,12 VAT included

Available in 19 days

Fujinon

UA22x8BERD-S8

€ 24.528,83 VAT included

Available in 124 days

Panasonic

AK-HVF100GJ

€ 9.127,02 VAT included

Available in 14 days

Panasonic

AK-HBU500GJ

€ 18.748,47 VAT included

Available in 19 days

The AK-UC3000 Series 4K Studio Handy Camera is a 4K broadcast-use camera equipped with a newly developed MOS sensor.

When operated in HD format, it exhibits excellent operability with B4-mount HD lenses, achieving high sensitivity HD images (F10/2000 lx) withlow noise (S/N 60 dB). While including functions appreciated in the conventional model such as DRS and CineGamma, the AK-UC3000Series adds new features such as focus assist, flash band compensation, and skew reduction which is realized through high-speed scanfrom the MOS sensor.

There are additional functions to improve shooting experience including enhanced shockless gain (-6 dB to 36 dB),a user gamma function, black gamma correction according to the pedestal setting, multi-step DNR and easy matrix adjustment.

AK-UC3000 Series achieves excellent image quality and operability. When used with AK-UCU500 Camera Control Unit, it is capable of 4K(3840x2160/60p) image output, high-image-quality uncompressed long-distance transmission and the AK-HRP1000/HRP1005 RemoteOperation Panel equipped with a colour LCD to provide visibility of the display for smooth control.

The camera and camera control unit can be connected for approximately 2,000-meter long-distance transmission of video signals when power is supplied from the camera control unit. The remote operation panel and the camera can be connected using dedicated cable. (In addition, there is a plan to support IP connection using LAN-cable.)
