AK-MSU1000GJ

Name: AK-MSU1000GJ
Brand: Panasonic
SKU: AK-MSU1000GJ
Price: 26734765 NGN
Availability: OutOfStock

Panasonic

EAN: 885170260603

Master Control Unit per AK-UC3000 - AK-HC5000

go to the technical sheet

₦ 26,734,765.00

₦ 24,869,549.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

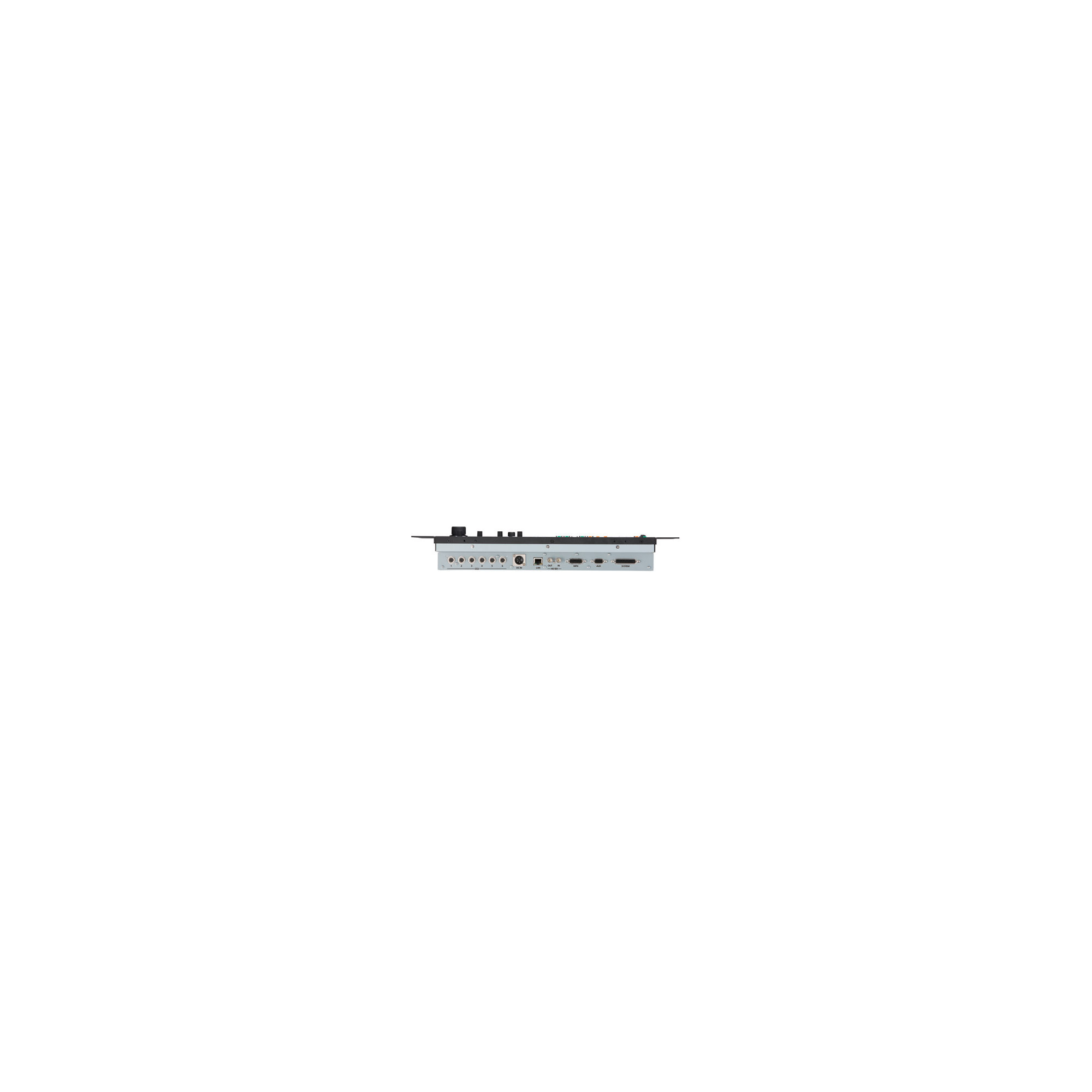

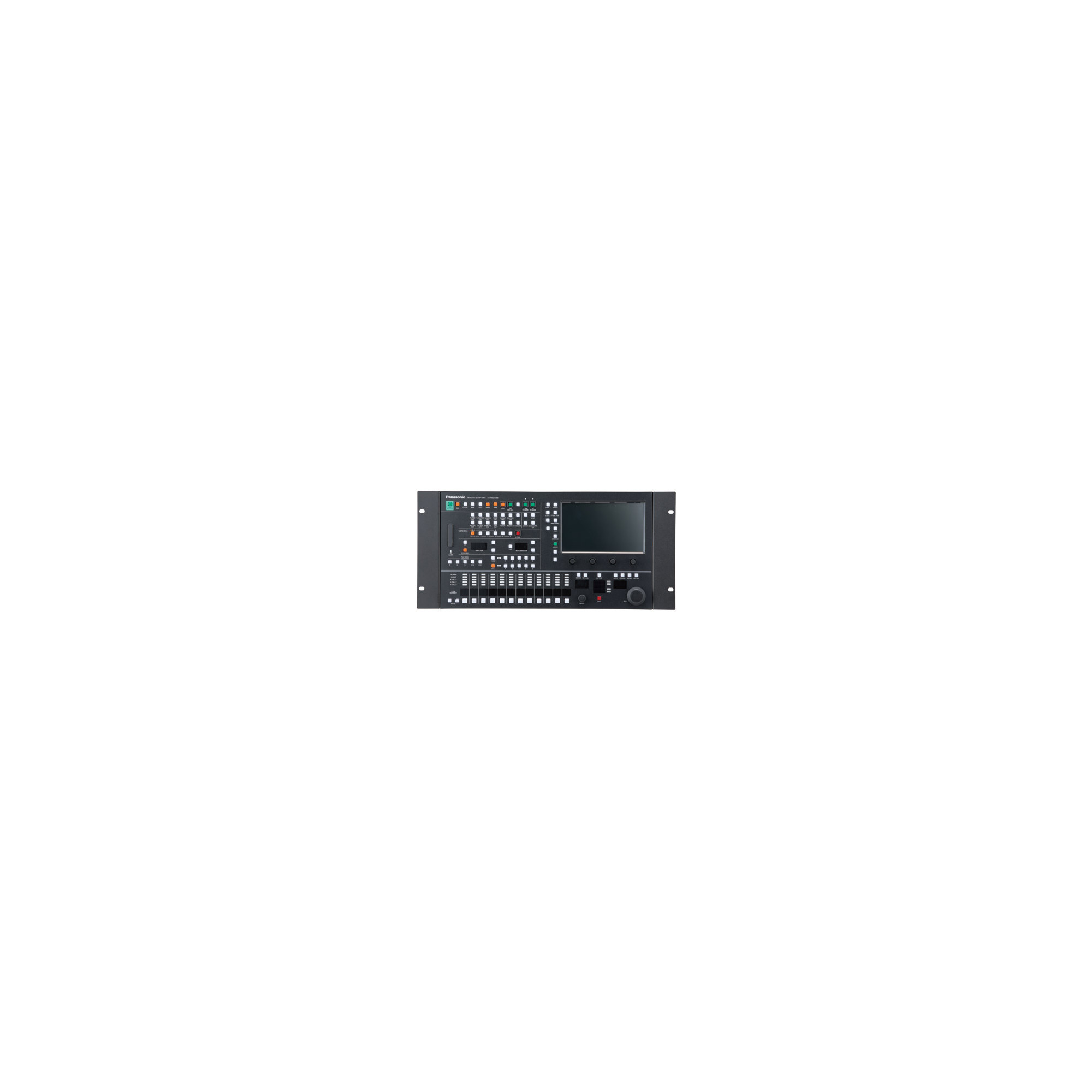

Panasonic Master Control Unit per AK-UC3000 - AK-HC5000
IP and serial connections supported.
IP connection: Up to 99 units
Serial connection: Up to 6 units
7 inch Touch Panel LCD
HD SDI Input (Monitoring) (1080i)
Power DC12 V(DC10 V - DC17 V) or PoE+ (via PoE+ Hub)

Adjustment Functions Scene file, ND filter, CC filter, Color temperature (COLOR TEMP), Master gain (MASTER GAIN), Shutter (SHUTTER), Master pedestal (MPED), Iris (IRIS), Camera selection
Power Supply 12 V DC (DC input range: 10 V - 16 V DC) 42 V - 57 V DC (PoE+ power supply)
Power Consumption 1.6 A (Power supply: 12 V DC) 0.6 A (PoE+ power supply)
Operating Temperature 0°C to 40°C (-4°F to 140°F)
Weight Approx. 4.0 kg (8.82 lb)
Dimensions (W x H x D) 486 mm x 222 mm x 81.5 mm (19-5/32 inches x 8-3/4 inches x 3-7/32 inches) (including mounting brackets and dial heights)
CCU Control : Power DC 12 V (DC 10 V - DC 17 V) or PoE+ (via PoE+ Hub)
Maximum Cable Length When CCU connected: 50 m (164 ft)
