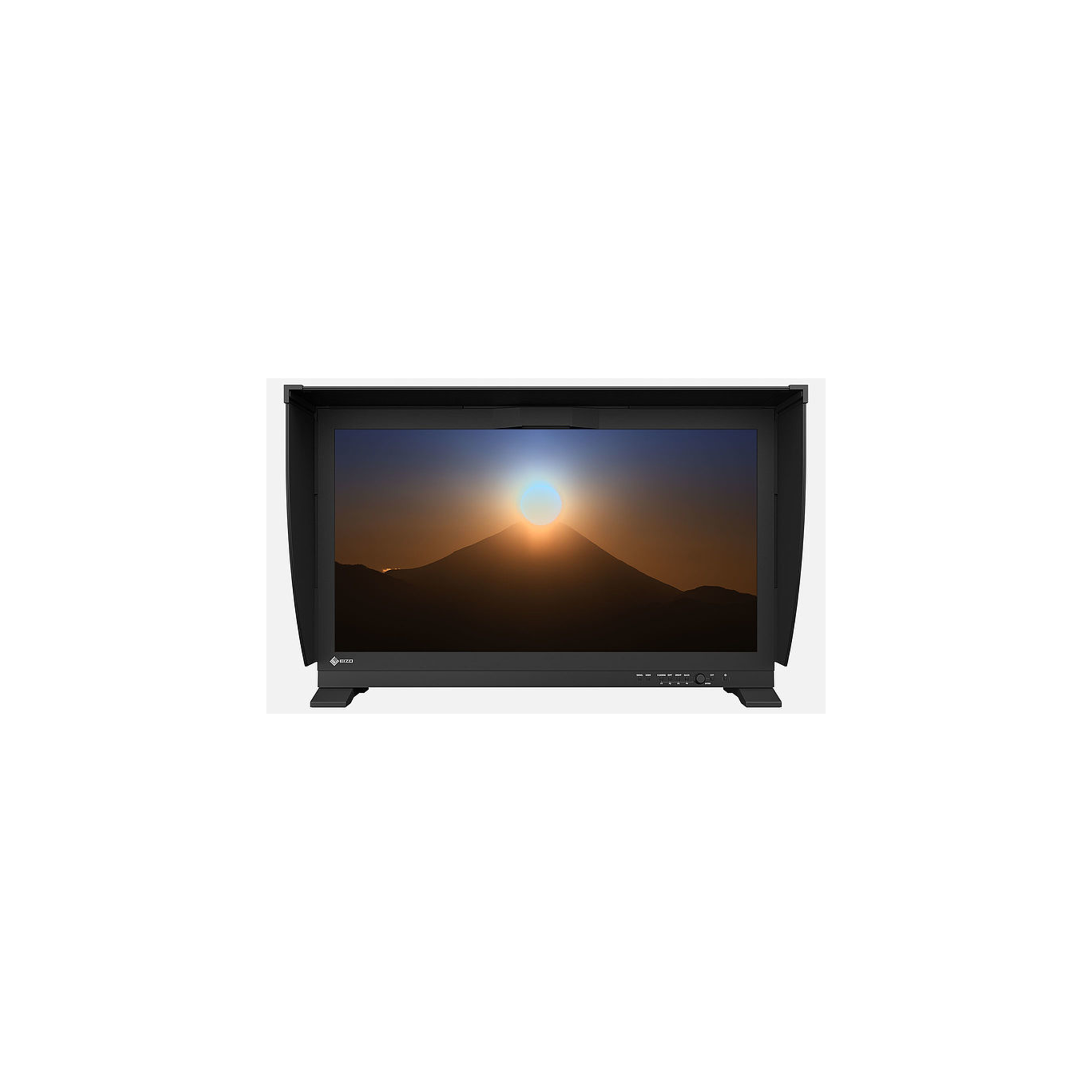

CG3146 ColorEdge

EIZO HDR Technology
EIZO's ColorEdge PROMINENCE HDR reference monitors are the first to overcome the severe drawbacks of other HDR technologies available in the market, so they can be used reliably for post production work.

Auto Brightness Limiter (ABL) equipped in other HDR OLED monitors limits the monitor's ability to display lighter scenes with tones over a specific range. This causes those light areas to appear dimmer and the color duller as a result.
Local dimming uses an area control backlight system which adjusts the brightness in sections of the screen depending on the content displayed. However, when an object on the screen falls outside of the area of the backlight that is adjusted, a "halo" effect appears, making it impossible to achieve full color accuracy in smaller details.
EIZO's ColorEdge PROMINENCE CG3146 achieves a true HDR visual experience without ABL or Local Dimming to ensure you always see accurate colors and brightness in every pixel.

Gamma Curves
ColorEdge PROMINENCE CG3146 supports two gamma curves used for HDR video - hybrid log-gamma (HLG) and perceptual quantization (PQ) curve. HLG is compatible with SDR displays and is suitable for live television broadcasting. PQ curve approximates the human visual system in terms of color and light perception, making it ideal for films, streaming, and other video content. Both gamma curves were standardized by the International Telecommunication Union (ITU) as ITU-R BT.2100. In addition, the PQ curve was standardized by the Society of Motion Picture and Television Engineers (SMPTE) as ST-2084.

Built-In Sensor to Automate Your Workflow
The ColorEdge PROMINENCE CG3146 is the first HDR reference monitor in the world to be equipped with a built-in sensor which calibrates the monitor to stay color accurate. This eliminates the need for a third-party calibration device and streamlines color management so you can stay more focused on the creative process. Calibration information is saved directly to the monitor, so you do not need to recalibrate if connecting to more than one PC.

ColorNavigator 7 Color Management Software
ColorNavigator 7 is the latest calibration and quality control software for ColorEdge color management monitors. It combines all the features of EIZO's previous color management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.

High Brightness and Contrast
ColorEdge PROMINENCE CG3146 achieves the 1000 cd/m2 high brightness level needed for HDR content display. It also offers a typical contrast ratio of 1,000,000:1 for displaying true blacks.

DCI 4K Resolution
ColorEdge PROMINENCE CG3146 displays the DCI-4K standard (4096 x 2160) which is more than four times that of full HD (1920 x 1080). It is ideal for creating, editing, and referencing with 2D and 3D CGI, VFX, compositing, and color grading.

SDI Connectivity
The ColorEdge PROMINENCE CG3146 is equipped with a Single-Link 12G/6G/3G/HD-SDI and Dual- or Quad-Link 3G*/HD-SDI connections for seamless transmission of 4K video data. The SDI connections support 2SI (2 sample interleave) to ensure picture is always maintained during transmission. VPID (Video Payload ID) is also supported for SDI connections.

Flexible Connection
Furthermore, the monitor has an HDMI and DisplayPort input located conveniently on the side of the monitor for flexible connection to a range of other video devices. Four USB downstream ports and one upstream port are also equipped.

Video Compatibilities
The monitor's HDMI and DisplayPort inputs support DCI 4K at 60p. HDMI input supports 12-bit 4:2:2 at 50/60p and DisplayPort input supports up to 10-bit 4:4:4 at 50/60p.

Wide Color Gamut
The wide gamut faithfully reproduces 99% of the DCI-P3 standard used in post production for faithful reproduction of color.

3D LUT for Accurate Color Display
A 3D LUT is included which adjusts colors individually on an RGB cubic table. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.


Here you can find the complete supported resolution chart
