17.3'' 4K Rackmount Broadcast Monitor

go to the technical sheet

₦ 1,428,729.00

₦ 1,329,050.00 VAT excl.

Available 1 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

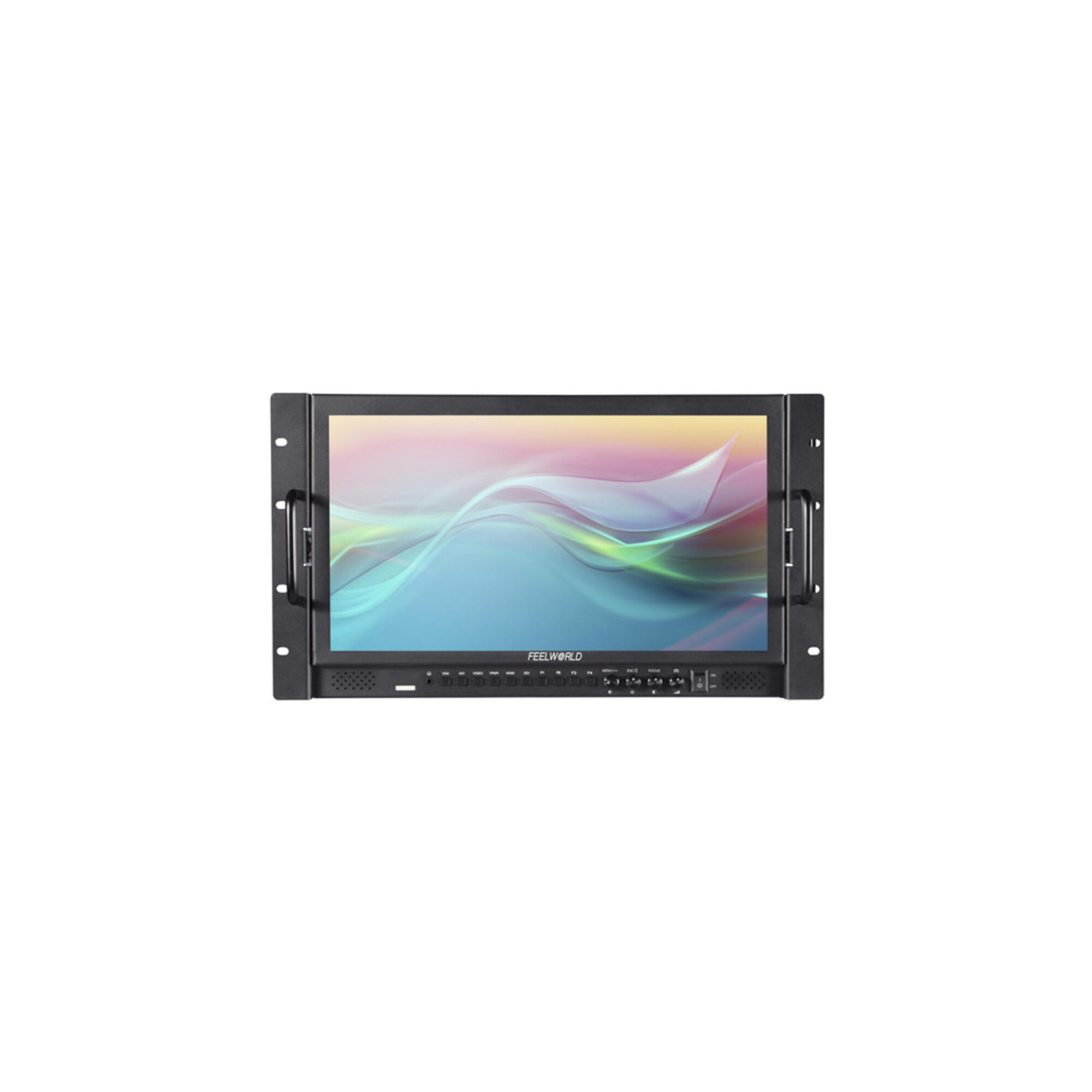

The 17.3" 4K Rackmount Broadcast Monitor from FeelWorld features a 1920 x 1080 display and supports up to UHD 4K30 signals. It offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. These connections are provided on the rear panel along with an integrated V-mount battery plate and 4-pin XLR and barrel power inputs. A headphone jack, built-in speakers, 3-color LED tally light, and control and function buttons are provided on the front. This rackmount version comes with rack ears with built-in handles on the front. The monitor's image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across the four front-panel function buttons.

Key Features
1920 x 1080 resolution display
Supports up to UHD 4K30 signals
HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
HDMI, 3G-SDI, component BNC, composite BNC outputs
178 / 178° viewing angle
Color depth: 16.7 million colors
Tally port
Built-in red/green/yellow LED tally indicators
3.5mm stereo headphone jack
Built-in speakers
Integrated V-mount plate
300 cd/m² brightness
4-pin XLR and DC barrel power ports
Image Analysis Functions
Peaking focus assist
Check field
Camera mode
Pixel-to-pixel
Center marker
Safe marker (80, 85, 90, 93, 96, 2.35:1)
Image flip (horizontal, vertical, and horizontal and vertical)
Image freeze
Zoom all
U/D and L/R zoom

Screen
Panel type: LCD
Display Size: 17.3 "/ 43.9cm
Resolution: 1920 x 1080
Aspect Ratio: 16: 9
Viewing angle
Horizontal: 178 °
Vertical: 178 °
Touch screen: No
Maximum brightness: 300 cd / sqm
Contrast Ratio:
700: 1
Dot density: 0.1989 x 0.1989 mm
Pixels Per Inch (ppi): 127 ppi
video:
1 HDMI type A input (HDMI 1.4) 1 input
BNC (3G-SDI)
1 input 3BNC (component) 1 input
BNC (composite) 1 input
DVI -I 1 input
HDMI type A (HDMI 1.4)
1 x BNC output (3G-SDI)
1 x 3BNC Output (Component)
1 x BNC Output (Composite)
Built-in audio: HDMI
SDI
Audio I / O:
1 x 2 RCA inputs
1 x 1/8 "/ 3.5mm headphone output
Integrated speaker: 2
Power I / O:
1 x 4-pin XLR input
1 x barrel entrance
Other I / O:
1 x DE-9 / DB-9 (Tally)
Media / memory card slot: None
Format support
Video format:
HDMI
DCI 4K: 24
UHD 4K: 30 / 29.97 / 25/24 / 23.98
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
1080PsF: 24 / 23.98
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p
480p
576i
480i
SDI
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50 1080PSF
: 98: 23
/59.94/50/30/29.97/25/24/23.98
576i
480i
Power
DC input power: 9 to 24 Vdc
Battery type: 1 x V mount
Power Consumption: 26W (maximum)
Environmental
operating temperature: 14 to 122 ° F / -10 to 50 ° C
Storage temperature: -4 to 140 ° F / -20 to 60 ° C
General
Size: 16.3 x 11 x 1.4 "/ 41.4 x 28 x 3.5cm
The weight: 7.28lbs / 3.3kg
Packaging information
Package Weight: 10.35lbs
Box Dimensions: 20.4 x 16.1 x 6.1"

FeelWorld 17.3'''' 4K Rackmount Broadcast Monitor
Mini HDMI Cable
V-Mount Battery Plate (Preinstalled)
3A Power Adapter
Tally Kit
Limited 1-Year Warranty
