AV-UHS5M2G

Name: AV-UHS5M2G
Brand: Panasonic
SKU: AV-UHS5M2G
Price: 10507899 NGN
Availability: OutOfStock

Panasonic

EAN: 4010869297196

12G-SDI Output Expansion Unit for AV-UHS500 Switcher

go to the technical sheet

₦ 10,507,899.00

₦ 9,774,789.38 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

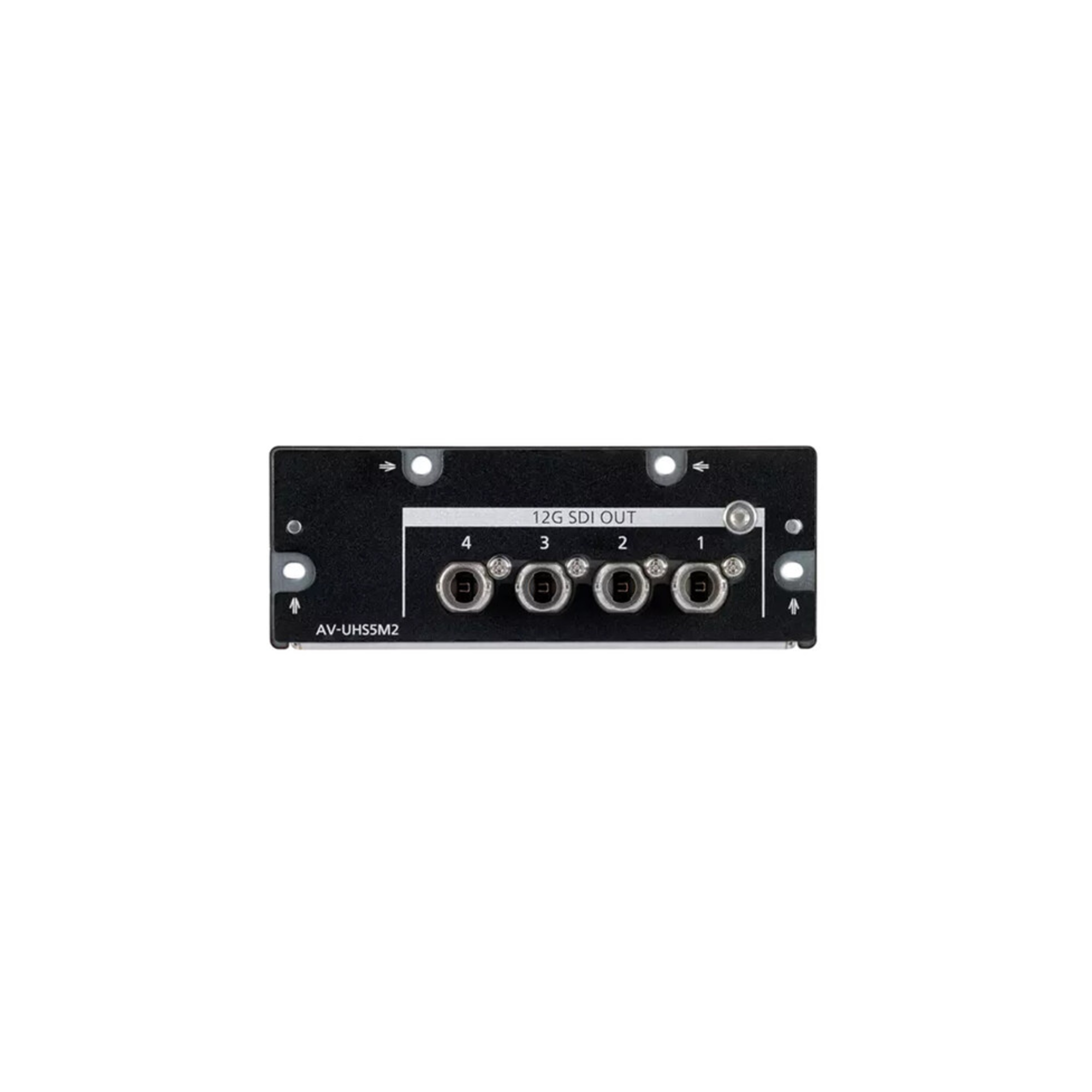

Panasonic 12G-SDI Output Expansion Unit for AV-UHS500 Switcher

Expand the output ports on your AV-UHS500 Live Switcher using this Panasonic 12G-SDI Output Expansion Unit and its four 12G/3G-SDI configurable outputs.
All four of the BNC ports can perform down-conversion, color space conversion, and HDR/SDR conversion.
They can also be assigned as PGM, OVW, CLN, ME PGM, MV1, MV2, AUX1 to AUX4, and Key Out on your switcher.
The unit installs into one of the two available slots on the switcher, which also supplies it with power.

Output Ports: 4 x BNC, 12G-SDI
Output:
- Down-Converter
- Color Space Conversion
- PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, Key Out
SDI: 12G-SDI, 3G-SDI, HD-SDI
SMPTE:
- SMPTE ST 2082-10
- SMPTE 292
- SMPTE 292M
Power Supply: 12 VDC
Power Consumption: 15 W, 1.2 A
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 10 to 90 % (Non-Condensing)
Storage Humidity: 10 to 90 % (Non-Condensing)
Dimensions: 6.6 x 4.4 x 1.7" / 167 x 112 x 42 mm
Weight: 11.2 oz / 371 g
