HS-3200

Name: HS-3200
Brand: Datavideo
SKU: HS-3200
Price: 9322.78 EUR
Availability: OutOfStock

Datavideo

EAN: 672255007952

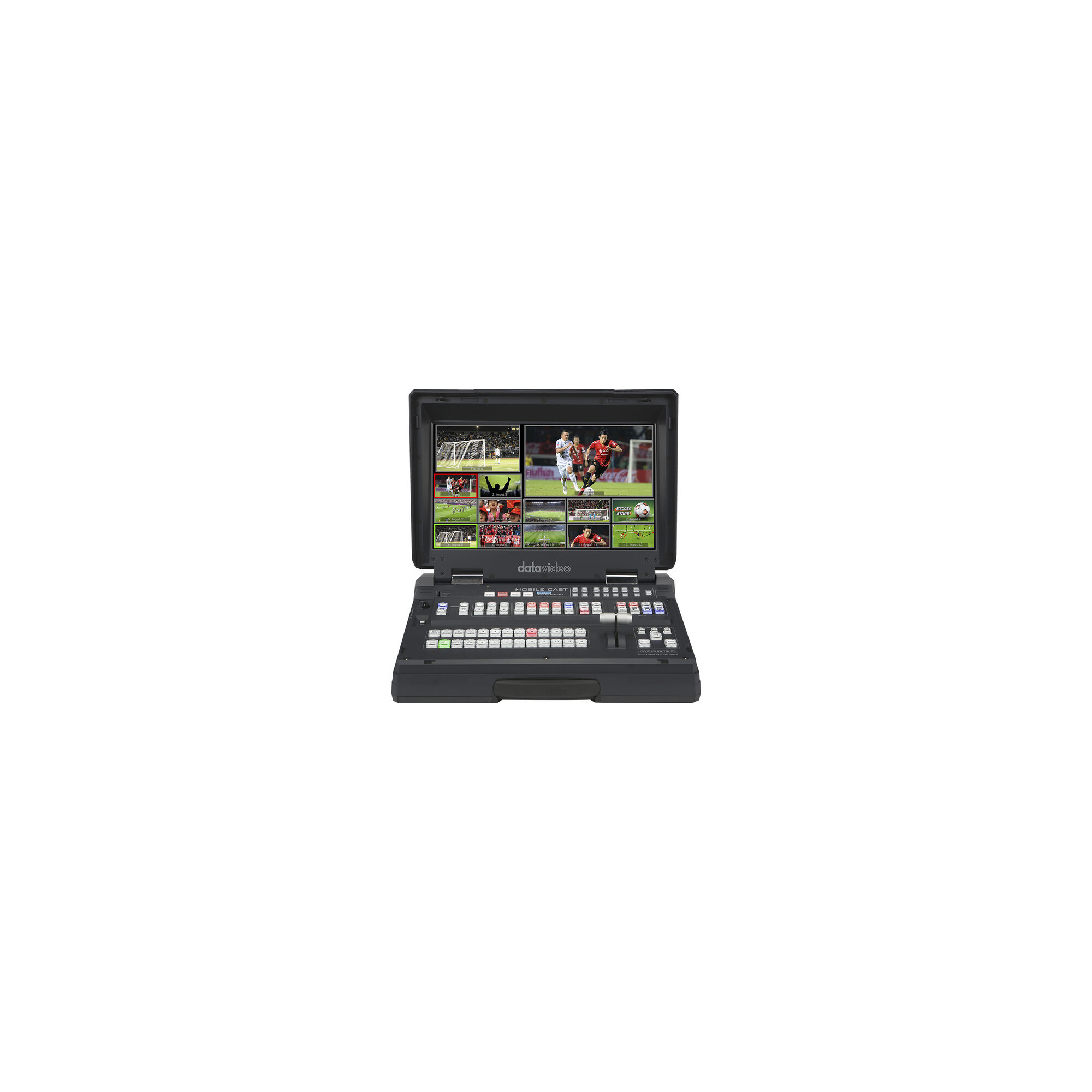

HD 12-Channel HD Portable Video Streaming Studio (Hand Carry)

go to the technical sheet

€ 9.322,78

€ 8.672,35 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Portable Production unit, designed as a suitcase providing; 12 inputs(8 x SDI and 4 x HDMI), 9 Outputs (6 x SDI and 3 x HDMI), Simultaneous Live Streaming & Recording, 4 Keys for chromakey, linear and luma keys as well as PiP, 2 DSK's for linear and luma keys 2 static or animated logos, WIPE, MIX, DVE and CUT transitions, 32 WIPE patterns, any input (1-12) can be used as a frame store

17.3" Full HD 1080p Video Monitor
Multiview Display
8 x SDI and 4 x HDMI Video Inputs
5 x SDI and 4 x HDMI Video Outputs
4 x Video Keyers
H.264 Media Streaming
USB Port for Firmware Upgrade
SD Card Slot for Local Storage
32 x Wipe Patterns
Clip Player

The 12-Input HD-SDI & HDMI Mobile Streaming Studio with 17.3" LCD Monitor from Datavideo is a 12-channel portable switcher with 1080p60 (3G) high-definition support, 12 digital inputs including eight SDI and four HDMI with embedded audio, and five SDI plus four HDMI outputs for connecting an HD recorder and external monitors.

The Mobile Studio also features chroma/luma keying, DSK, PiP, a wipe generator, still stores, logo insertion, and a built-in title overlay system for use with a separately available character generator.
17.3" Full HD video monitor with multiview
Four upstream keyers that support chroma/luma key
Multiview displays video input sources, preview video, and program video
Lightweight and portable design for live events and TV programs that need to mix a variety of video and audio sources
Easy-to-use video streaming and recording device for professional video producers

Intercoms

Datavideo

ITC-100

€ 1.663,01 VAT included

Available in 19 days

Video Standard
Full HD
Video Format
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Input Routable / Crosspoint
All 12, repeatable
Video Input
8x SDI, 4x HDMI
Computer Graphic Interface
4 via HDMI
Down-converted Output
1x SDI
Video Output
5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
3x HDMI PGM only
Analogue Audio Input
4x Balanced XLR
Analogue Audio Output
2x Balanced XLR
Digital Embedded Audio Support
Input 2 channels,
Output 4 channels
Audio Delay Calibration
Up to 16 frames
A+V Switching
Yes
USK
4
DSK
2, support Lumakey & Linear key
(Key / Fill)
Picture in Picture
8 (4x Keyer, 4x Flex Source)
Logo Insertion
2
Title Creator
Yes, CG-200 software free download
Built-in Audio Mixer
----
Built-in Monitor Display
17.3" HD TFT LED backlit, 1920x1080 pix
Built-in Intercom & Tally
----
Streaming
Streaming
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control
Web browser UI for configuration and control Socket commands
Recording File System
FAT, exFAT, NTFS
Recording File Format
MP4
Streaming & Recording Setting Control
Web UI for system configuration and control
Others
Special Features
4 Chroma-Key Virtual Studio
9 stinger transition and 4 user preset
Built in TC-200 CG interface
Streaming encoder and recorder
12x9 matrix seamless switch
Dimension (LxWxH)
455 x 355 x 134 mm
Weight
17.8 Lbs (8.1 kg), Reinforce Plastic Case
Power
DC 12V, 11A
Operating Temp. Range
0~40 °C
What''s in the Box
1 x HS-3200 Unit
1 x AD Switch DC 12V with AC Cord
