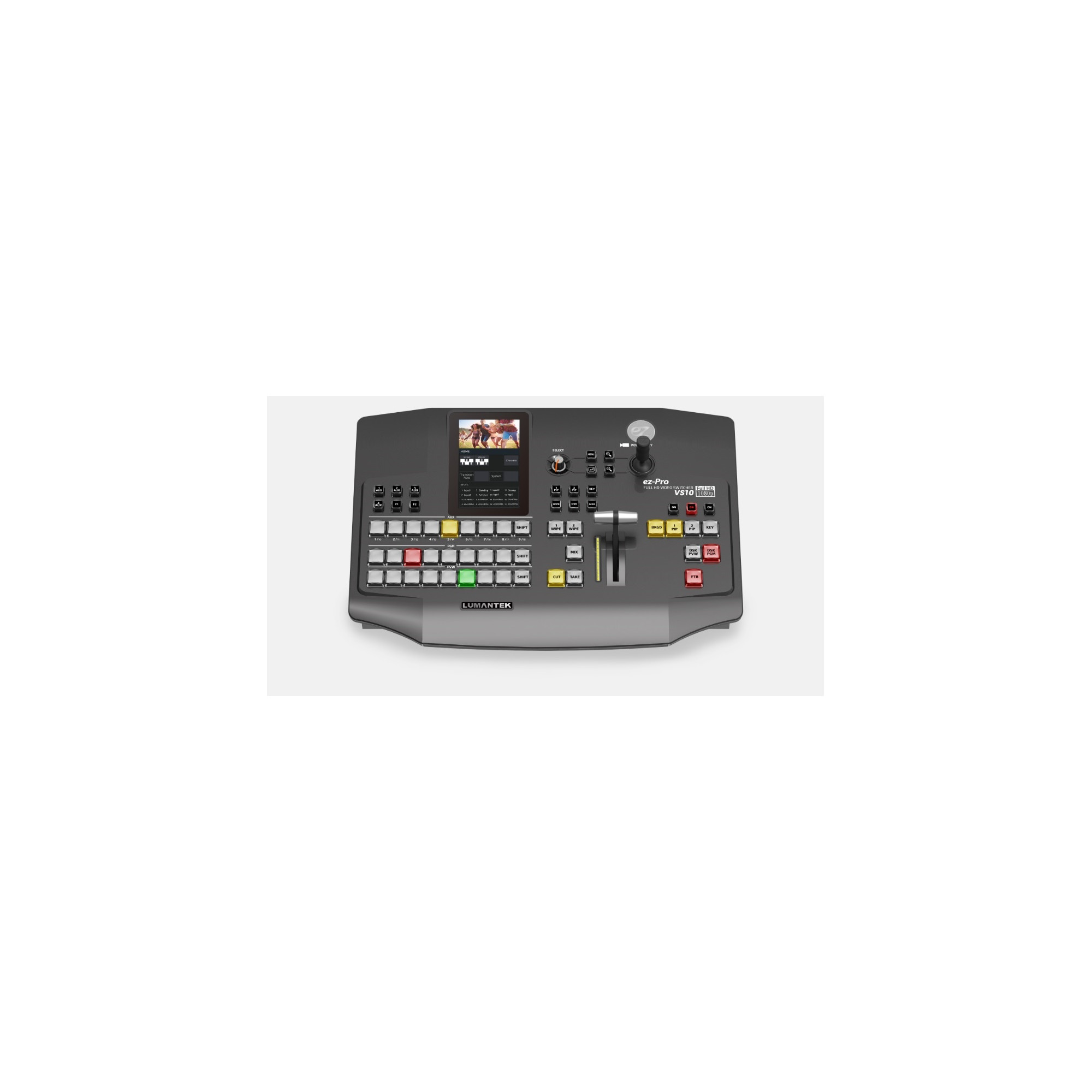

Again, LUMANTEK gives you another switcher good for live events but with more ports than before. More screens to monitor in a single switcher with a larger touch screen to control.
Personalize your Multiview Layout
You can choose from many layouts to show the multiview screen.You can move them as you want and name as you want. Configure your own layout through our utility
(Win OS or Mac OS), save it on a USB disk,and plug it into VS10 to load your layout.
Our LCD touch screen and buttons make this switcher user-friendly.
You can learn fast, and it is easy to control both video and sound. Also make us of the rotary switch and joystick to operate the switcher.
All 10 inputs built in in Scaler
ez-Pro VS10+ comes with internal scalers in all input ports. Adjust freely using our touch screen menu.
ez-Pro VS10+ has 2 Picture in Picture (PIP) capabilities, 1 Still Image which covers the whole screen, and Luma and Chroma Keyer. You can mix both features and key out the PIP and assimilate a hand language translator PIP.
LUMANTEK carefully calibrated the fan noise to provide more comfort to its users while enabling the switcher to operate at its maximum performance.S10 allows to set any SDI input ports as Fill or Key.
InputOutputSDI: 8HDMI: 2SDI: 4x AUX, 2 x PGMHDMI: 1 x PGM, 1 x Multiview
Input accepted resolutions:
480i59/576i501080p60/1080p59/1080p50/1080p30/1080p29/1080p25/1080p24/1080p231080i60/1080i59/1080i50/720p60/720p59/720p50
Output possible resolutions:
1080p60/1080p59/1080p50/1080p30/1080p29/1080p25/1080p24/1080p23/1080i60/1080i59/1080i50/720p60/720p59/720p50
