SLXD1-J53

SLXD1-J53

Shure

Digital Wireless Bodypack Transmitter J53 (562 - 606 MHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 295,64

€ 275,01 VAT excl.

€ 303,21
Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

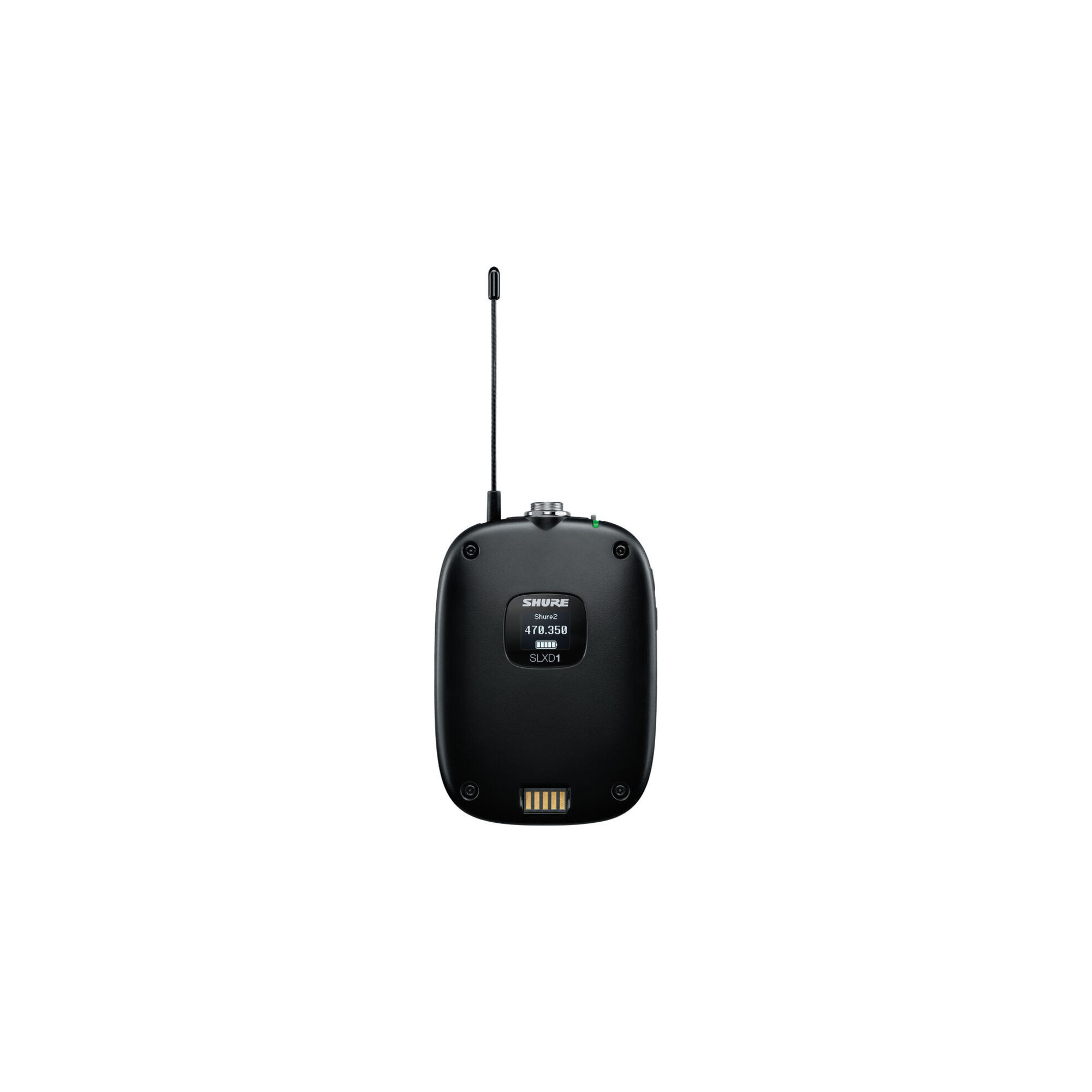

The Shure SLXD1 is a bodypack digital wireless microphone transmitter compatible with SLX-D receivers. It delivers crystal-clear, 24-bit digital audio quality and reliable RF performance—well suited for use in small- to medium-sized venues and houses of worship, or with A/V installations in conference, educational, or corporate facilities.

The SLXD1 operates in a 44 MHz UHF tuning range with 1760 frequencies available and features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).
User Friendly, Compact, and Lightweight

The SLXD1 features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances, or a dedicated WA305 locking instrument cable for use with a guitar/bass (mic and cable available separately).
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
An easy-to-read LCD shows important information.
1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
The discreet, ergonomic housing is constructed from tough, lightweight ABS plastic and features a fixed 1/4 wave antenna.

Convenient Power Management Options

The SLXD1 operates for up to 8 hours on two AA batteries or an SB903 rechargeable battery (available separately).
The SB903 lithium-ion rechargeable battery offers convenient power management with zero memory effect and precision metering in hours and minutes on the transmitter's LCD screen.
The SBC203 dual-battery recharging station (available separately) charges two SB903 batteries at once—it fits the external contacts on the transmitter so you don't have to remove the batteries to recharge.

Frequency Range 20 Hz to 20 kHz
Band 470 to 534 MHz
Housing Cast aluminum
Mic Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime At 10 mW:
Shure SB900: up to 10 hours
Alkaline: up to 9 hours
Audio Input Connector: 4-pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 Mohm
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting = +20: -120 dBV, A-weighted, typical
RF Output Connector: SMA
Antenna Type: 1/4 wave
Impedance: 50 Ohm
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW
Note: See frequency range and output power table, varies by region
Dimensions (H x W x D) 3.38 x 2.57 x 0.92" (86 x 65 x 23 mm)
Weight 4.9 oz (138 g), without batteries
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 12.677 x 4.882 x 3.228"
