WL183

Shure

Omnidirectional Lavalier Microphone for Shure Radio Kits
go to the technical sheet
₦ 422,098.00

₦ 392,649.00 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

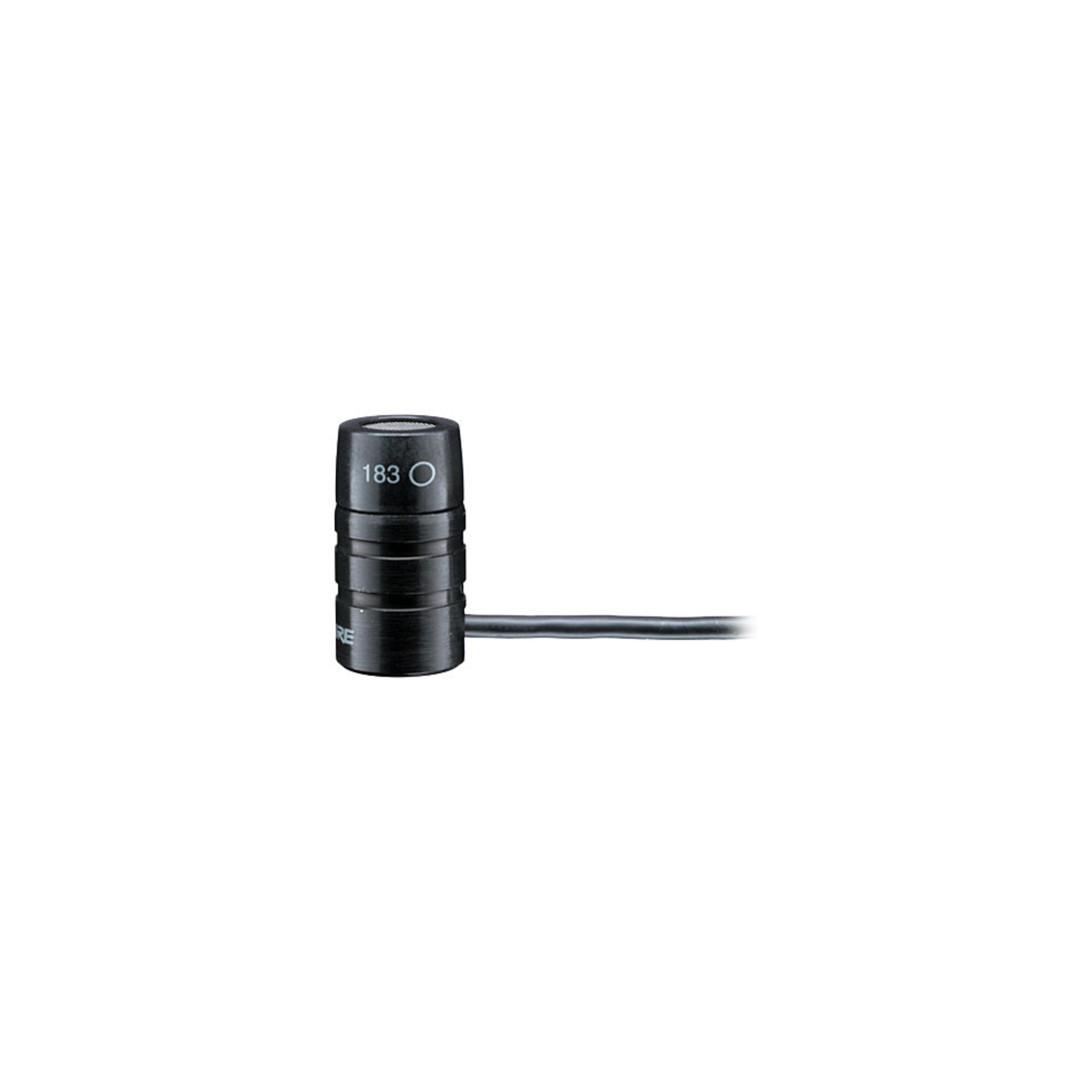

The Shure WL183 is a miniature omnidirectional microphone designed for general recording and sound reinforcement application. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity. The 4 foot (1.2 meter) cable cable terminates to a 4-pin TA4-female connector, compatible with Shure wireless transmitters and power supplies.

Miniature Profile
The miniature profile of the WL183 capsule allows the microphone to be easily concealed during performances or video shoots.

Omnidirectional Pattern
The omnidirectional polar pattern provides a 360 degree pick up range, enabling a generous signal pick up without added noise.

TA4 Female Connection
The 4 foot (1.2 meter) cable terminates to a TA4 female connection, compatible with Shure wireless transmitters and power supply modules.

Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Response 50 Hz - 17 kHz
Dynamic Range (Typical) 102.5 dB
Signal-to-Noise Ratio Output Noise: 22.5dB SPL
Maximum Input Sound Level 125 dB
Power Requirements +5v DC on Pin 2, Return on Pin 1 (Ground) Provided by Wireless Transmitters
Output Impedance 1800 ohms
Output Connectors TA4F Mini 4-Pin Connector
Pad None
Low Frequency Roll-Off None
Dimensions Cable Length - 4 feet (1.2m)
