URX-P40K33

Name: URX-P40K33
Brand: Sony
SKU: URX-P40K33
Price: 691869 NGN
Availability: InStock

Sony

EAN: 4548736106635

Wireless Receiver for Sony Uwp-D Series Freq. 566,025 ~ 630,00 MHz

go to the technical sheet

₦ 691,869.00

₦ 643,599.00 VAT excl.

Available 1 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

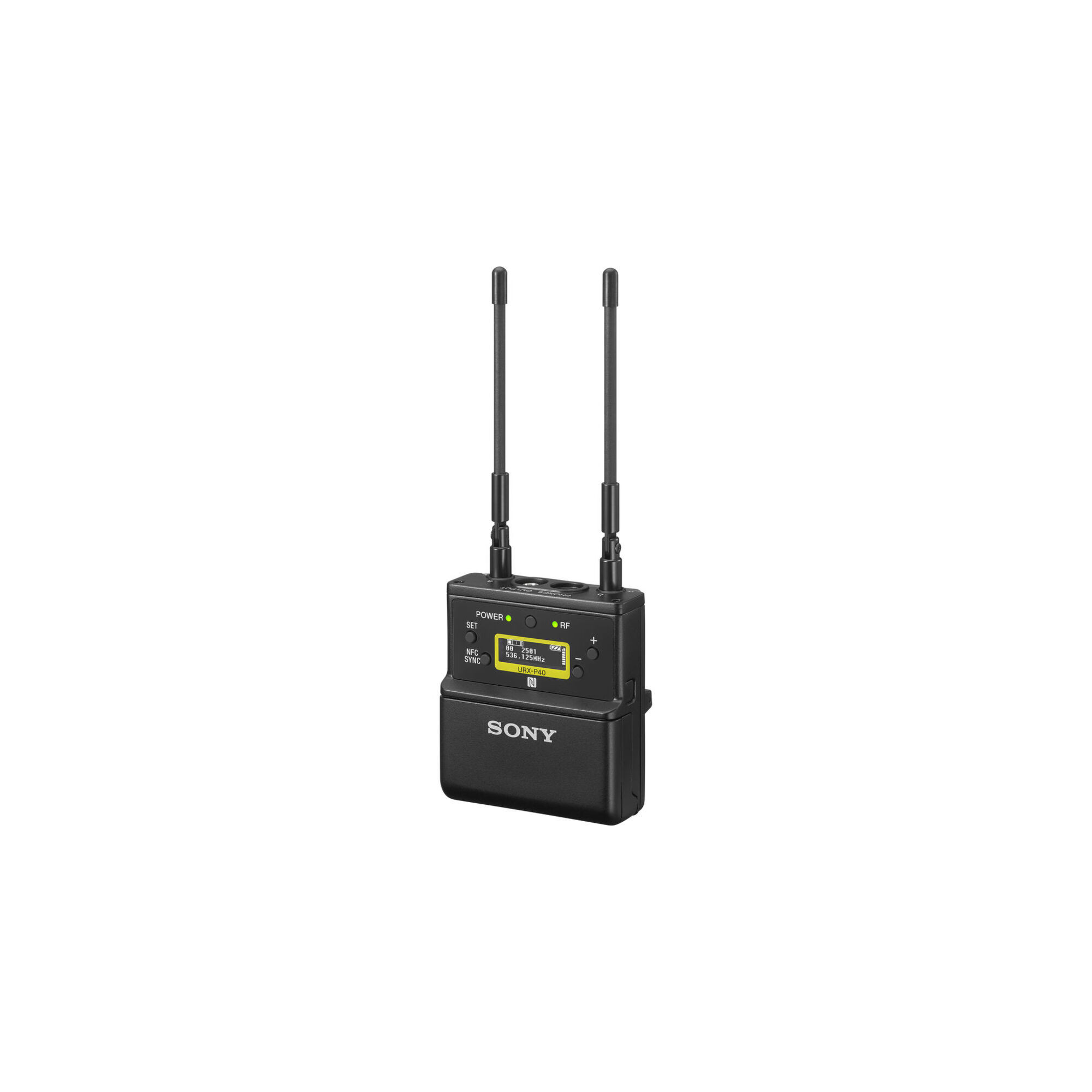

The Sony URX-P40 is a camera-mount wireless receiver that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The receiver is packed with professional features including NFC Sync and Channel Memory functions, which handle time-consuming setup and adjustments for you, so you're ready to shoot within seconds.

The URX-P40 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. This low-profile camera-mount receiver is designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe.

The URX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.

Microphones Wireless Power Supply & Chargers

Sony

UTX-B40K21

₦ 665,263.00 VAT included

Available 1 unit in 4 Days

Sony

SMAD-P5

₦ 88,848.00 VAT included

Available in 34 days

Sony

EC-0.46BX

₦ 73,368.00 VAT included

Available 2 unit in 4 Days

Sony

BATC-4AA

₦ 42,730.00 VAT included

Available in 14 days

Adcom

Senn to WRT 2019Edition - Adcom

₦ 61,005.00 VAT included

Available in 15 days

Lindy

Micro USB 5V 2A

₦ 23,864.00 VAT included

Available in 14 days

General Specifications
Oscillator Type : Quartz-controlled PLL synthesizer
Reception Type : True diversity method
Antenna Type : 1/4 wavelength antenna cable (adjustable angle)
Carrier Frequencies : 566,025MHz ~ 630,00 MHz
Frequency Response : 23 Hz to 18 kHz (typical)
S/N Ratio : 60 dB (1 kHz sine wave, 5 kHz modulation)
Distortion (T.H.D) : 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay
&emsp,Approx. 0.35 ms (analog output)
&emsp,Approx. 0.24 ms (digital output)
Audio output connector : 3.5 mm diameter 3-pole locking mini-jack, external connection

Audio output level
&emsp,-60 dBV (3.5 mm diameter 3-pole locking mini-jack, analog output, 0 dB audio output level)
&emsp,-20 dBFS (external connection, digital output, 0 dB audio output level)
&emsp,-50 dBFS (external connection, analog output, 0 dB audio output level)
Analog audio output adjustment range : -12dB - +12dB (3 dB steps)
Headphone output connector : 3.5 mm diameter mini-jack
Headphone output level : Max. 10 mW (16 ohms)

Power supply
3 V DC (two LR6/AA alkaline batteries)
5 V DC (powered by USB Type-C connector)
Battery life : Approximately 6 hours
Battery life measured with two Sony LR6/AA alkaline batteries at 25 C. SCREEN MODE set to auto power off.

General
Operating temperature : 0 to +50 C
Transport/storage temperature : -20 °C to +55 C
Dimensions : 63 × 70 × 31 mm (W/H/D) (excluding antenna)
Weight : Approximately 131 g (batteries not included)
