Shure

Digital Wireless Bodypack Transmitter J53 (562 - 606 MHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 309,33

€ 287,75 VAT excl.

€ 317,26
Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

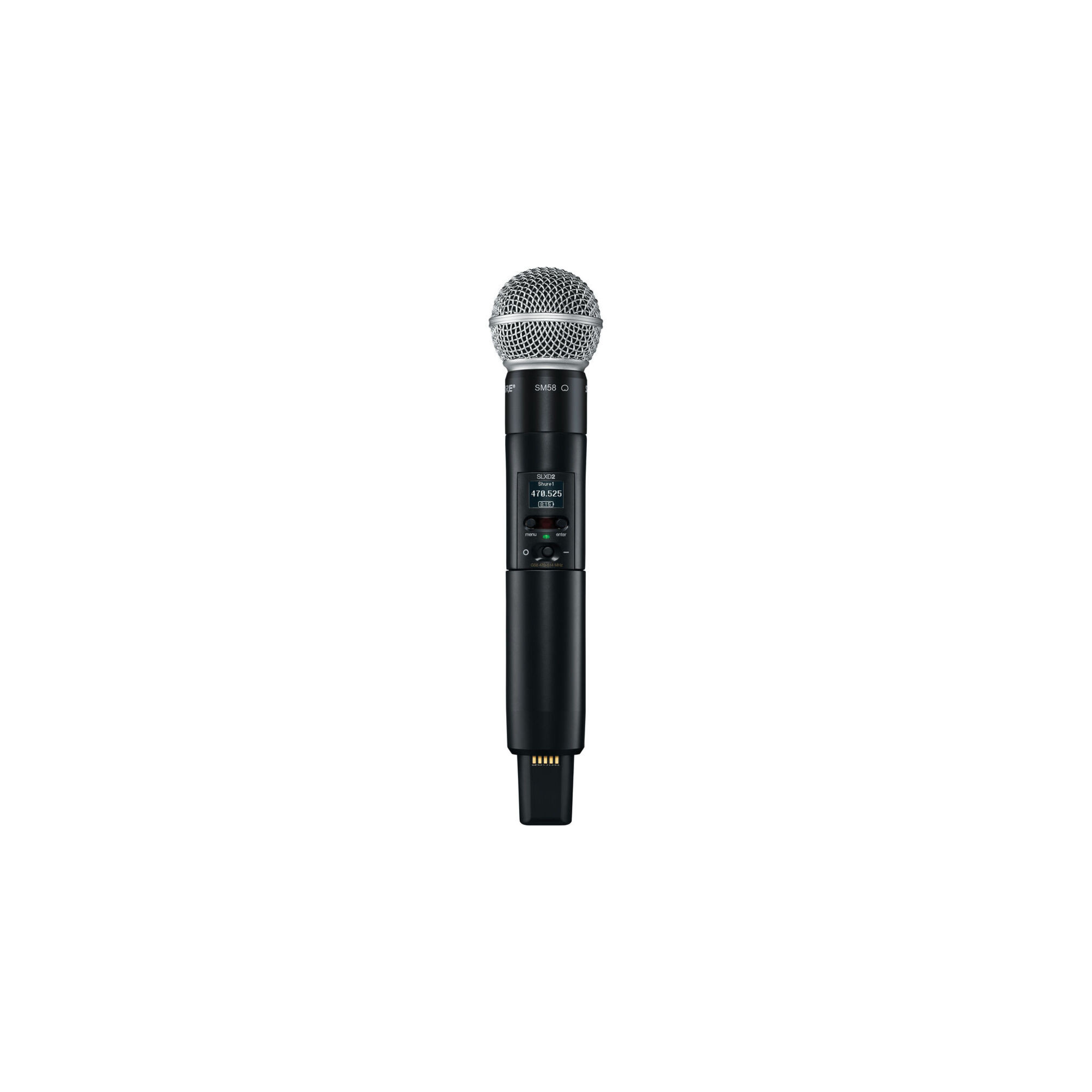

The Shure SLXD2/SM58 is a digital handheld wireless microphone transmitter compatible with SLX-D receivers. It comes equipped with the legendary SM58 dynamic capsule, an industry standard for vocal performers and presenters. The capsule features a cardioid polar pattern that minimizes background noise and feedback, and its brightened midrange and bass roll-off gives you that sought-after warm and clear vocal reproduction.

The system operates on a 44 MHz UHF tuning range with 1760 frequencies available. The transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or a rechargeable SB903 battery pack (available separately).

The SLXD2/SM58 handheld transmitter delivers crystal-clear, 24-bit digital audio quality and reliable RF performance in a lightweight, yet durable aluminum housing. It is well suited for use in small- to medium-sized venues and houses of worship and with A/V installations in a conference, educational, or corporate facilities.
Clear, Accurate Audio with Interchangeable Capsule

The unit delivers clear, reliable 24-bit digital audio.
The interchangeable capsule design allows you to replace the SM58 capsule with a Shure capsule that's ideal for your application and simply screw it onto the transmitter—including the Beta 87A, KSM8, and Beta 58A capsules.

User-Friendly Features in a Rugged Housing

The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
An easy-to-read LCD shows important information.
1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Convenient Power Management Options

The transmitter runs for up to 8 hours on two AA batteries.or an SB903 rechargeable battery (available separately).
The SB903 lithium-ion rechargeable battery offers convenient power management with zero memory effect and precision metering in hours and minutes on the transmitter's LCD screen.
The SBC203 dual-battery recharging station (available separately) charges two SB903 batteries at once—it fits the external contacts on the transmitter so you don't have to remove the batteries to recharge.

System
Wireless Transmission Digital UHF
RF Frequency Band G58:
470 to 514 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328'' / 100 m
Max Systems per Setup 32
Sample Rate/Resolution 24-Bit
Latency 3.2 ms
Encryption None
Transmitter 1
Transmitter
Form Factor Handheld
RF Output Power 1 / 10 mW
Audio I/O None
Pad None
Muting None
Audio Input Level 8.2 dBV
Auto-Level Control No
Gain Range 0 +21 dB
Signal Processing None
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
Sync Method IR
Antenna Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time 1.25 to 5.5 Hours
Approx. Battery Life 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity None
Display & Indicators LCD (Battery Status, Channel, Group, Power)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 1.5 x 6.9" / 37.1 x 176 mm
Weight 5.2 oz / 147 g
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 50 Hz to 15 kHz
Sensitivity -54.5 dBV/Pa
CMRR None
Diameter 1.97" / 50 mm
General
Packaging Info
Package Weight 1.47 lb
Box Dimensions (LxWxH) 11.2 x 5.3 x 3.3"
