Shure

Digital Wireless Omni Black Earset Microphone System J53 (562 - 606 MHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.101,00

€ 1.024,19 VAT excl.

€ 1.129,24
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

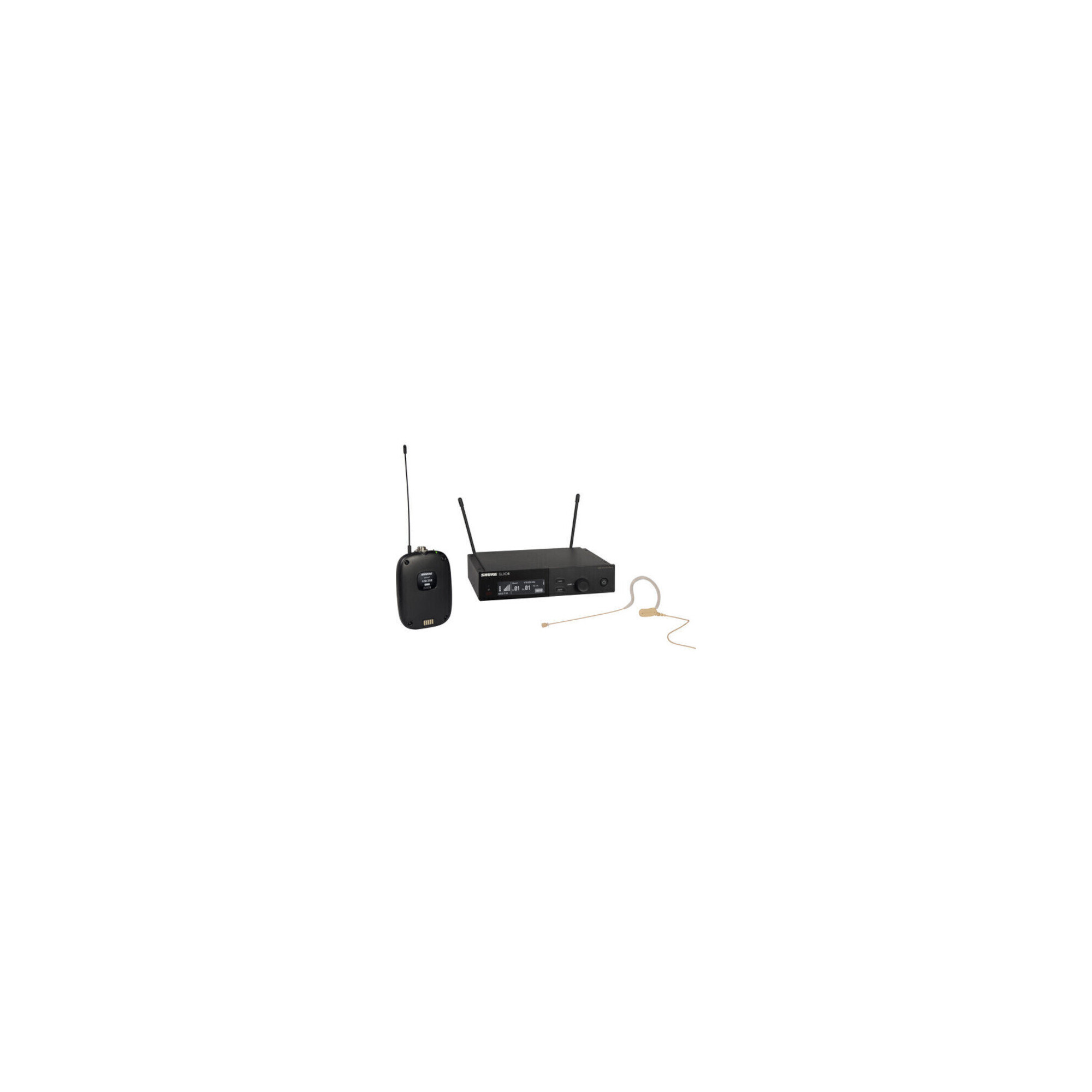

The Shure SLXD14/153T offers presenters, instructors, clergy, and performers a wireless earset microphone system that's dependable, easy to set up, and features crystal-clear digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs and long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration comes with a tan MX153 omnidirectional subminiature earset microphone. The earset's ultralightweight, comfortable, and flexible design is discreet, stable, and easy to place over either ear, while the mic delivers natural vocal reproduction for a wide variety of applications. The compact bodypack transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

The all-metal, rackmount SLXD4 receiver offers an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What's more, setting up multiple systems is made fast and easy via the Ethernet port, which links them together for quick, coordinated frequency scans from a single receiver.

Frequency Range 20 Hz to 20 kHz
Band 470 to 534 MHz
Housing Cast aluminum
Mic Offset Range 0 to 21 dB (in 3 dB steps)
Battery Type Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime At 10 mW:
Shure SB900: up to 10 hours
Alkaline: up to 9 hours
Audio Input Connector: 4-pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 Mohm
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting = +20: -120 dBV, A-weighted, typical
RF Output Connector: SMA
Antenna Type: 1/4 wave
Impedance: 50 Ohm
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW
Note: See frequency range and output power table, varies by region
Dimensions (H x W x D) 3.38 x 2.57 x 0.92" (86 x 65 x 23 mm)
Weight 4.9 oz (138 g), without batteries
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 12.677 x 4.882 x 3.228"
