HD-NDI-CUBE

Name: HD-NDI-CUBE
Brand: Aida
SKU: HD-NDI-CUBE
Price: 502.72 EUR
Availability: OutOfStock

Aida

EAN: 0686091739809

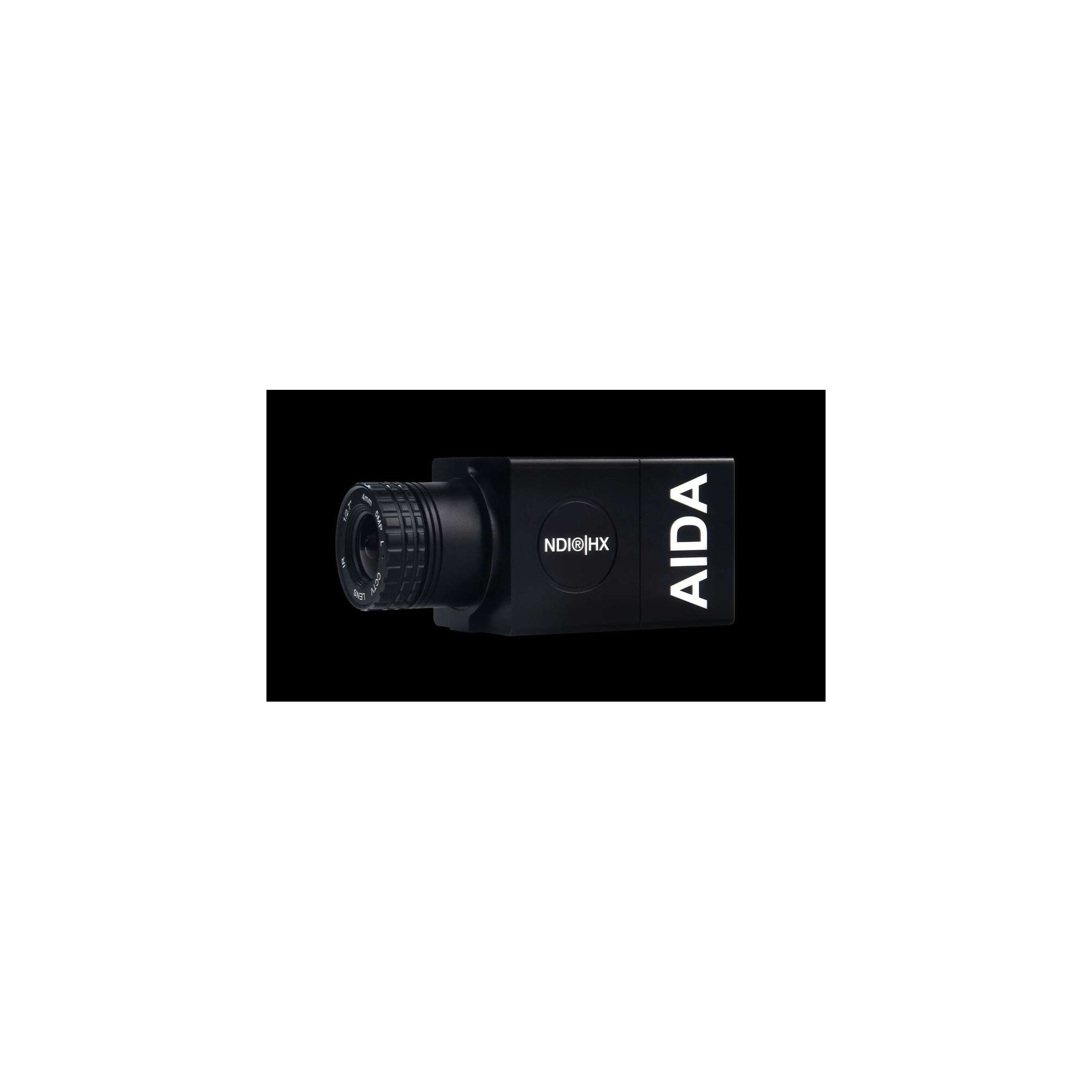

FHD NDI |HX/IP POV Camera

go to the technical sheet

€ 502,72

€ 467,65 VAT excl.

Available in 9 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

•Full-HD 1/2.8" Progressive Scan CMOS sensor capable of 1080 60p
NDI®|HX2/HDMI video.
•Accessible Web UI to stream directly to social media platforms
and control image parameters over IP.
•Versatile design with top and bottom tripod mounts for unique
shot creation.

•OSD breakout cable provides power or control over serial
RS485 communication.
•Flawlessly relays multi-channel embedded audio via NDI®|HX2
•Perfectly suited for beginning and existing NDI® Setups.

VIDEO
Image Sensor: 1/2.8" Progressive CMOS
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.9 (H) x 2.9 (V)
Resolution: 1080p, 1080i, 720p
Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p
24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p

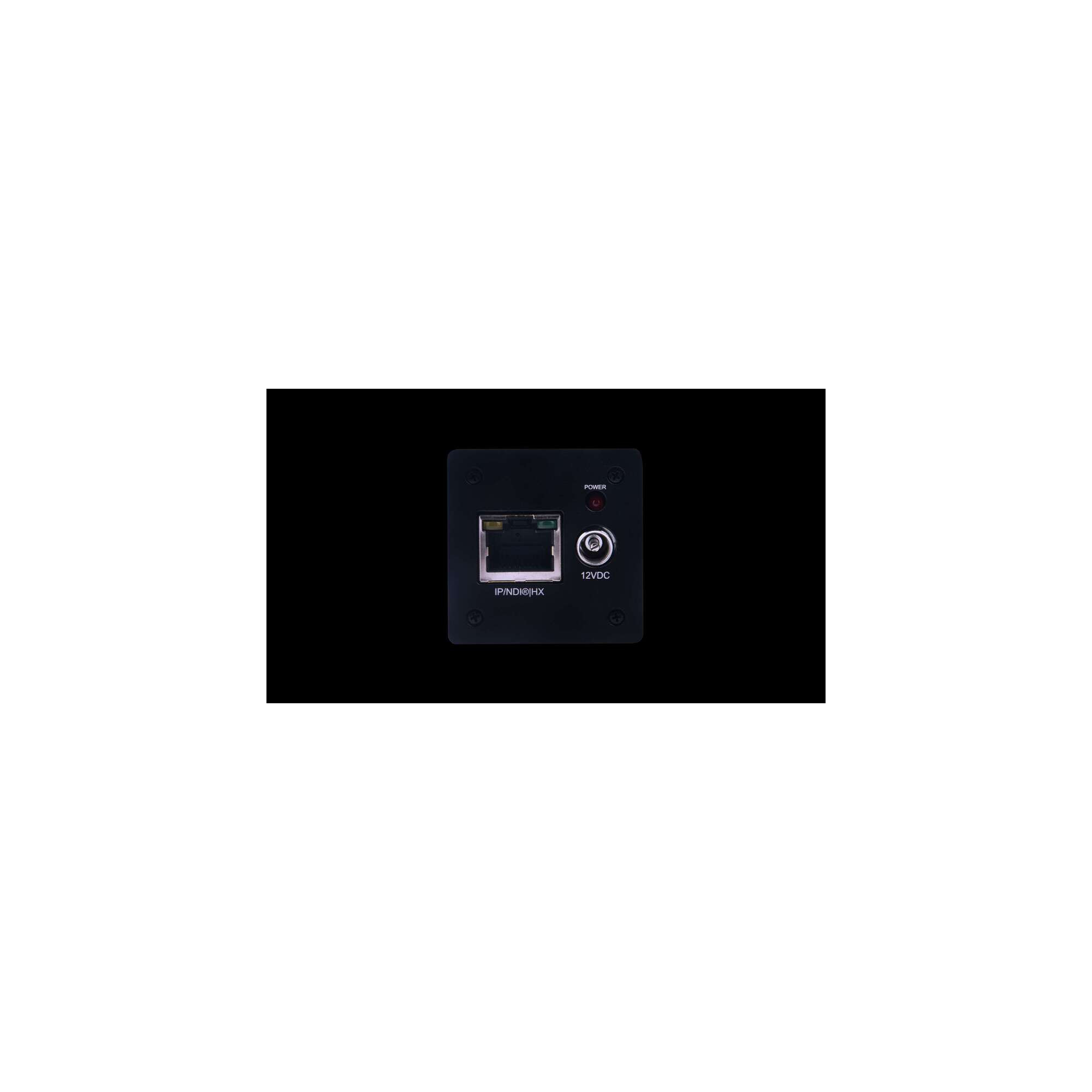

Output: HDMI, RJ45, NDI|HX2
IP Rate: 1920 x 1080 @ 3~60
1280 x 720 @ 3~60
1024 x 576 @ 3~60
620 x 360 @ 3~60
Color Space: 4:2:2 (YCbCr) 10bit

LENS
Lens:C/CS Mount (Default 4mm HD Lens)

AUDIO
Input: 3.5mm TRS Stereo Audio Port
Sample Rate: 16/24/32 Bits

PHYSICAL
Camera Control: Protocol: VISCA RS485, VISCA Over IP
Control: OSD Button or Web UI
Operation Temp: 32°F - 104°F

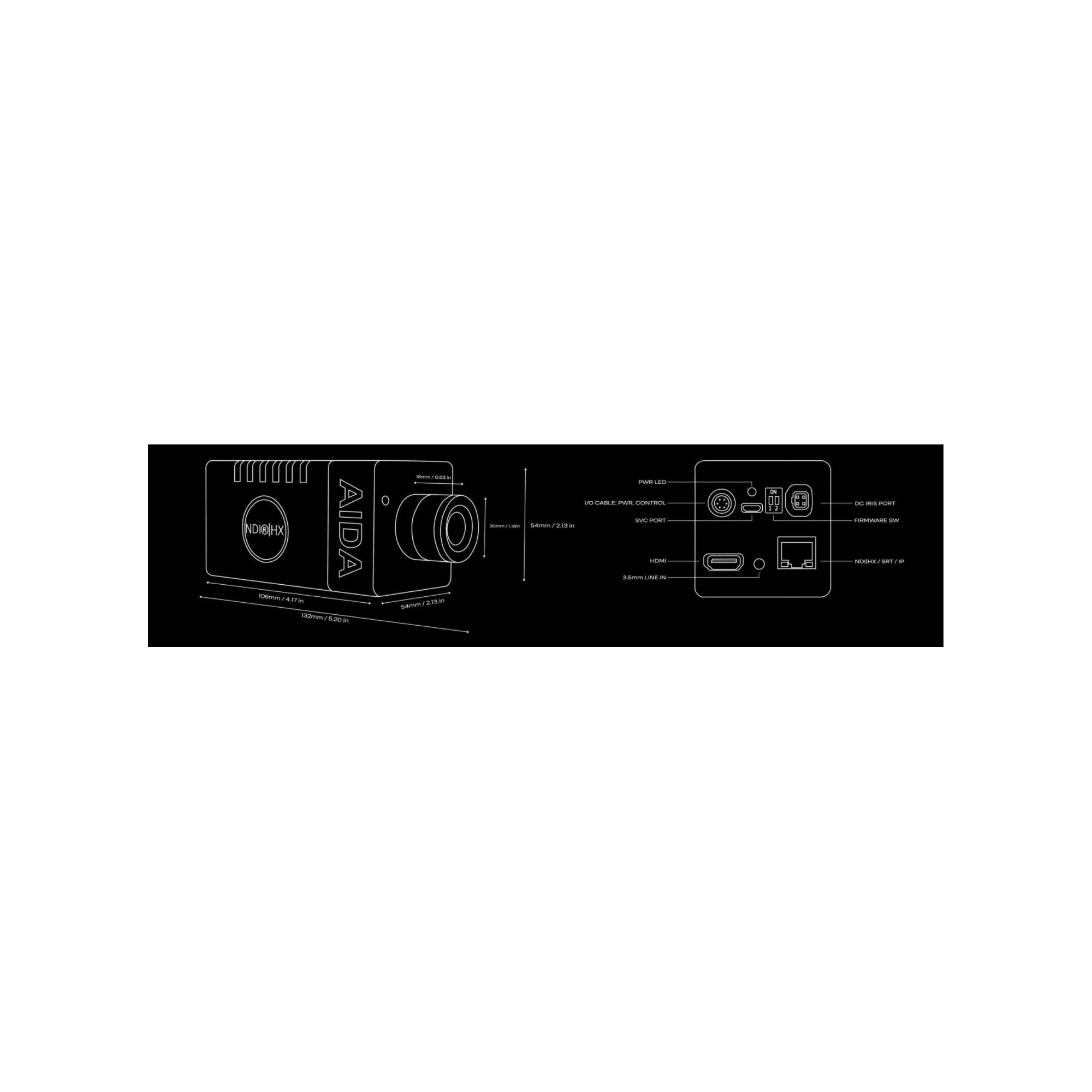

Dimension: 54mm x 54mm x 127mm /
2.125" x 2.125" x 5"

(With default 4mm Lens)
Power: 12VDC (+9 - +15VDC)/ POE
