Aida

0783970765000
AIDA Imaging FHD 120fps NDI|HX3 POV Camera, Up to 1080p120 Video
go to the technical sheet
€ 802,12

€ 746,16 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

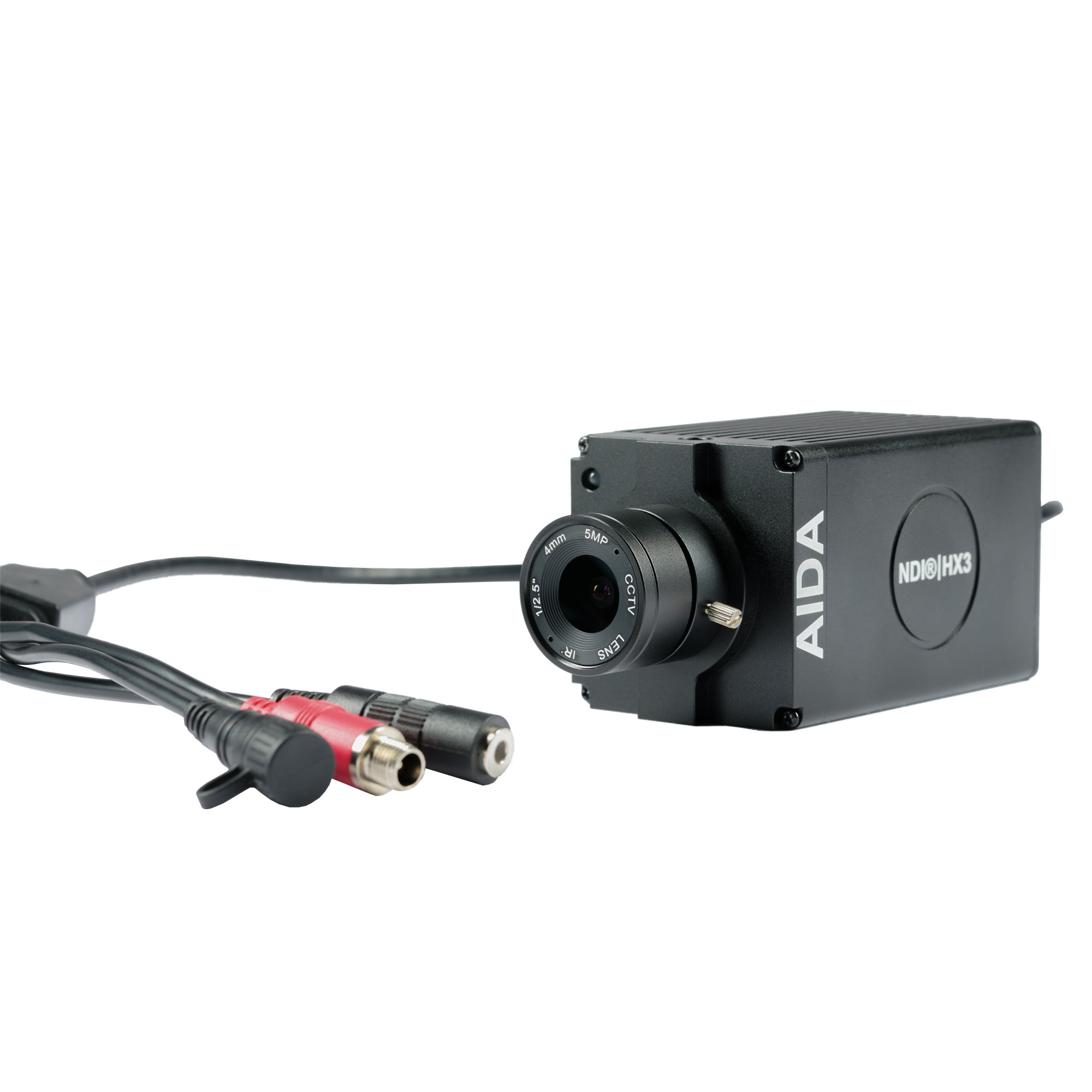

AIDA Imaging FHD 120fps NDI|HX3 POV Camera, Up to 1080p120 Video - Black

This FHD 120fps NDI|HX3 POV Camera from AIDA Imaging provides an industry leading 1080p120 video over HDMI or IP output thanks to its native NDI|HX3 support.
Low-latency broadcast signals, power, and data communication can be delivered over a single connection.
The camera comes with a pre-installed 4mm CS-mount lens.

AIDA Imaging offers this innovative POV camera capable of capturing full HD images at a stunning 120 frames per second with an 80° horizontal field of view.
Pairing this high-speed functionality with NDI|HX3 IP streaming compatibility, the HD-NDI3-120 camera outputs uncompressed video signals at up to 60 MB/s.
Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable.

Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately).
HDMI output with embedded audio is also available.

General
Compatibility: Newtek NDI|HX
Image Sensor: 1/3" Progressive CMOS
Effective Pixels (H x V): 1920 x 1080
Resolutions
° NDI|HX/HDMI: 1080p120/100
° NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50
Lens: 5MP 4mm CS-Mount
Field of View: 80°
Color Spaces: 4:2:2 (YCbCr) 10bit
Minimum Illumination:
° Day: 0.2 Lux
° Night: 0.1 Lux

Inputs / Outputs
USB I/O: 1 x USB-C Female Input/Output
Video I/O:
° 1 x HDMI Output
° 1 x RJ45 Output
Audio I/O: 1 x 1/8" / 3.5 mm Line Input

Power
Power Source: AC Adapter with Power Brick (Included), PoE
DC Input Power: 12 VDC

Environmental
Environmental Protection: None
Operating Temperature: 32 to 104°F / 0 to 40°C

Physical
Mounting:
° Top: 1 x 1/4"-20 Thread
° Bottom: 1 x 1/4"-20 Thread
Color: Black
Cable Length: Not Specified by Manufacturer
Dimensions: 3.35 x 1.93 x 1.93" / 8.51 x 4.9 x 4.9 cm
Weight: 0.8 lb / 350 g

AIDA Imaging FHD 120fps NDI|HX3 POV Camera
4mm 5MP Lens
USB Cable
C-Mount Cap Adapter
Sensor Cap
