GEN3G-IPC-200
Aida
₦ 1,552,899.00 VAT excl.

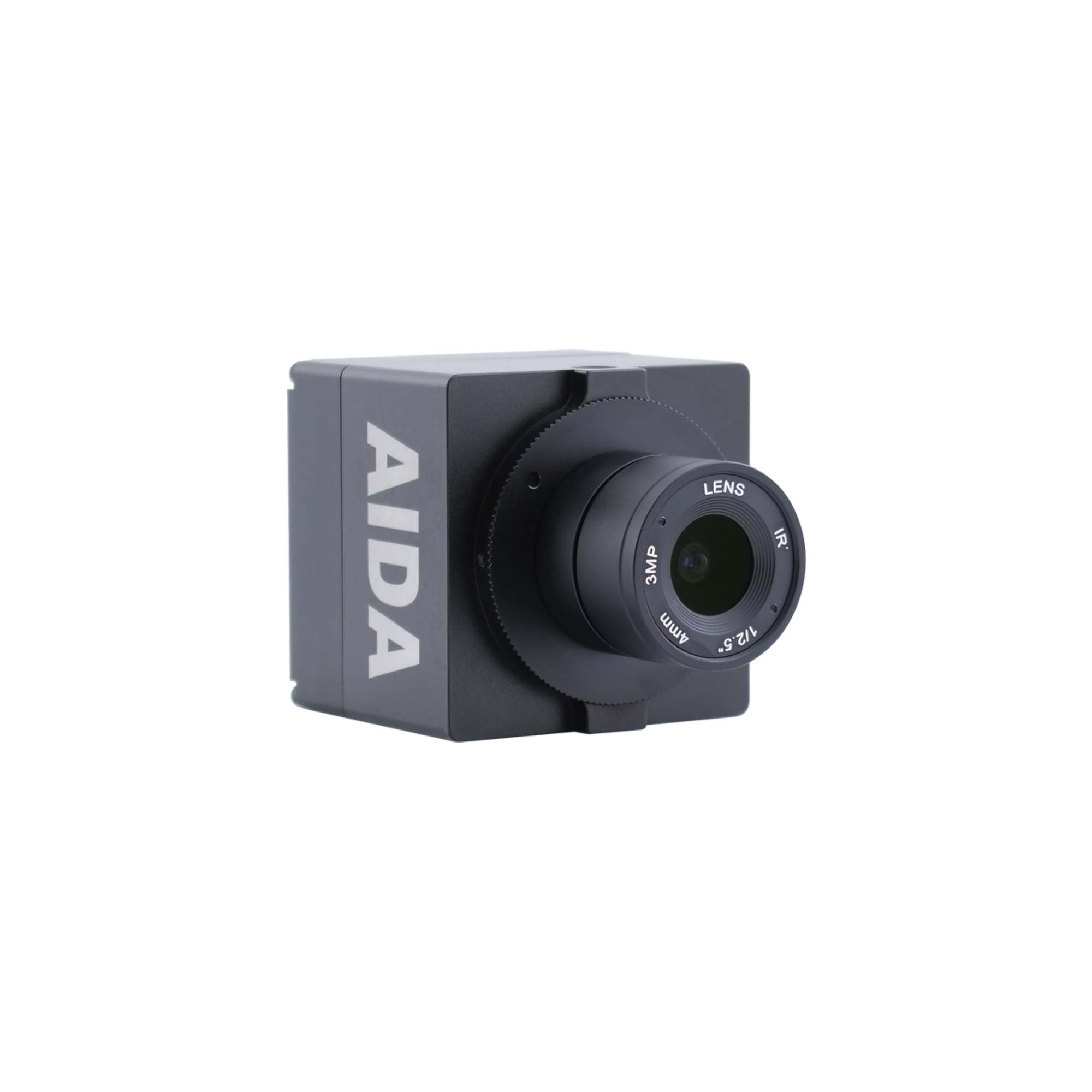

Professional Broadcast POV Camera - A fraction of the size at a fraction of the price
The GEN3G-200 is a compact HD 3G-SDI Broadcast Camera that produces clear and crisp HD video suitable for use in a broad range of HD video applications. The camera features Self-Adaptive Genlock Tri-level Sync, built-in OSD for customizable image settings, and an interchangeable lens design. This makes it compatible with auto-iris CS and C mount lenses and audio input that can relay embedded audio via SDI & HDMI. The GEN3G-200 is the go-to camera for various video production workflows.
MAIN FEATURES
Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
Tri level sync Genlock synchronizes GEN3G cameras and other system components for seamless vertical interval switching between sources.
3G/HD-SDI & HDMI seamless video performance.
Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
Self-Adaptive Resolution Feature captures your reference feed instantly.
Black Level Set-up provides the better color transition from digital to analog.
Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
Flawlessly relays embedded audio via SDI & HDMI.
Built-in OSD controls for customizable image settings.
Versatile, compact, and rugged design.
RCC-6-SDI
RCC-25-SDI
RCC-16-SDI
RCC-10-SDI
RCC-3-SDI
RCC-100-SDI
Belden 1505A HD-SDI 100 - Adcom Cable
Belden 1505 HD-SDI 050 AVV - Adcom Cable
Belden 1505A HD-SDI 075 AVV - Adcom Cable
Belden 1505A HD-SDI 025 AVV - Adcom Cable
Belden 1505A HD-SDI 100 AVV - Adcom Cable
Mars T1000
BR-CZ1 Orange
BR-235105
BR-235155
C-1670-8MP
CCS-USB
Video
-----------------------------------------
Image Sensor 1/3 inch Progressive CMOS
Sensor Size 5.346mm x 3.003mm (16:9)
Effective Pixels Horizontal : 1920, Vertical : 1080
Pixel Size : 2.75 µm x 2.75 µm
Resolution : 1080p & 1080i: 1920 x 1080 - 720p & 720i: 1280 x 720
Resolution/Rate:
° 1080 60p/59.94p/50p/30p/29.97p/ 25p
° 1080 60i/59.94i/50i
° 720 60p/59.94p/50p/30p/25p
Output : HD-SDI/3G-SDI (1 BNC) - HDMI 1.3a
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination : 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance : Auto & Manual (9,000 K - 11,000 K)
Lens
-----------------------------------------
Lens C/CS Mount (Default 4mm HD Lens)
Audio
-----------------------------------------
Audio Input : 3.5mm Analog Audio Input through I/O Cable
Sample Rate : 16 / 24 / 32 Bits
Standard
-----------------------------------------
SMPTE SMPTE 292M, SMPTE 424M
Synchronization
-----------------------------------------
Genlock External : Tri-Level Input
Physical
-----------------------------------------
Camera Control : RS-485, OSD Button
Operation Temp : 32° F - 104° F
Dimension : 49mm x 49m x 71mm / 1.92" x 1.92" x 2.79" (With default 4mm Lens)
Weight : 180g / 0.39lbs (With default 4mm Lens)
Power : 6W at 12VDC (+9 - +15VDC)
