CV228

Name: CV228
Brand: Marshall
SKU: CV228
Price: 922026.43 NGN
Availability: OutOfStock

Marshall

Broadcast camera, IP67 weatherproof, 4mm lens, 3G-SDI output

go to the technical sheet

₦ 922,026.43

₦ 857,699.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 92,202.64

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

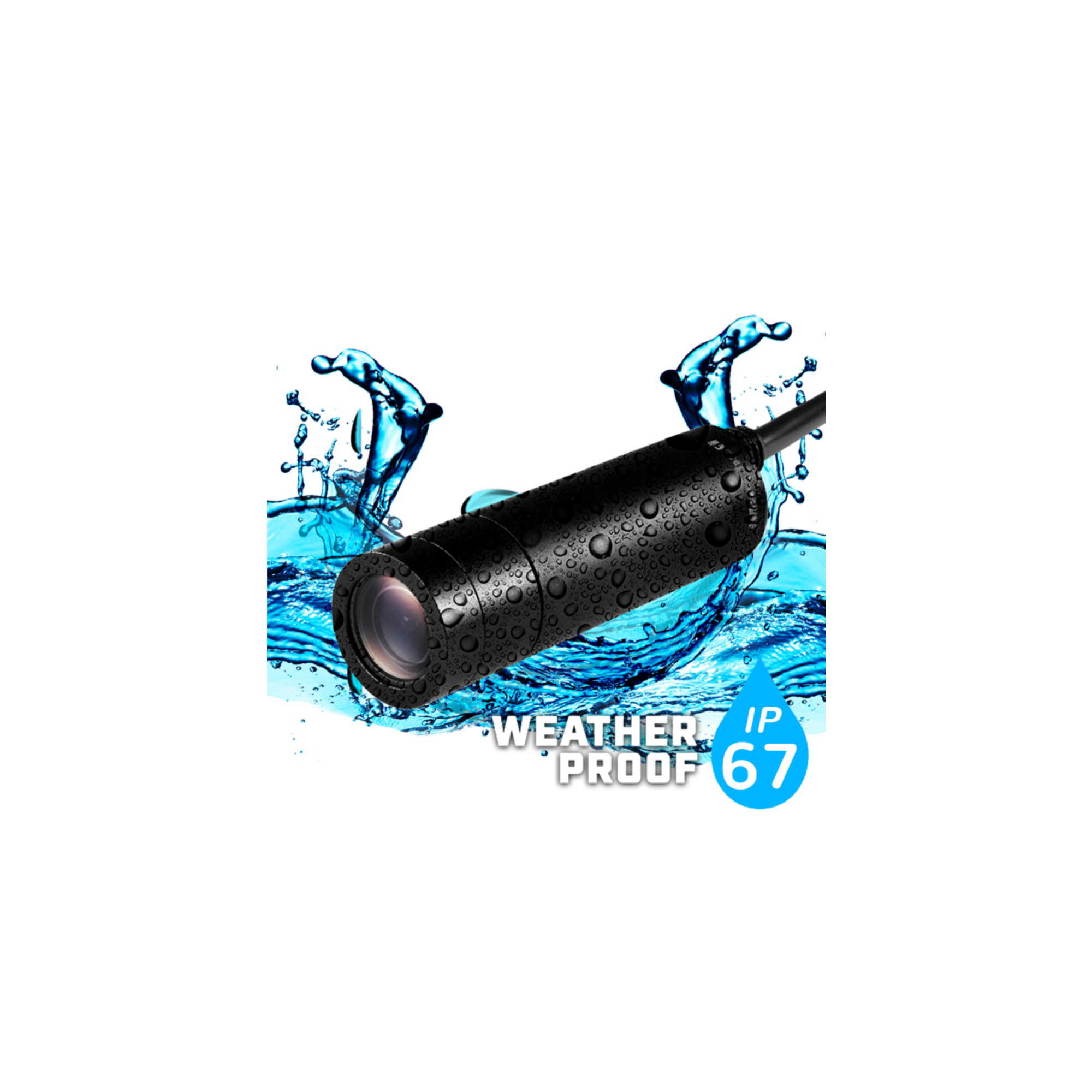

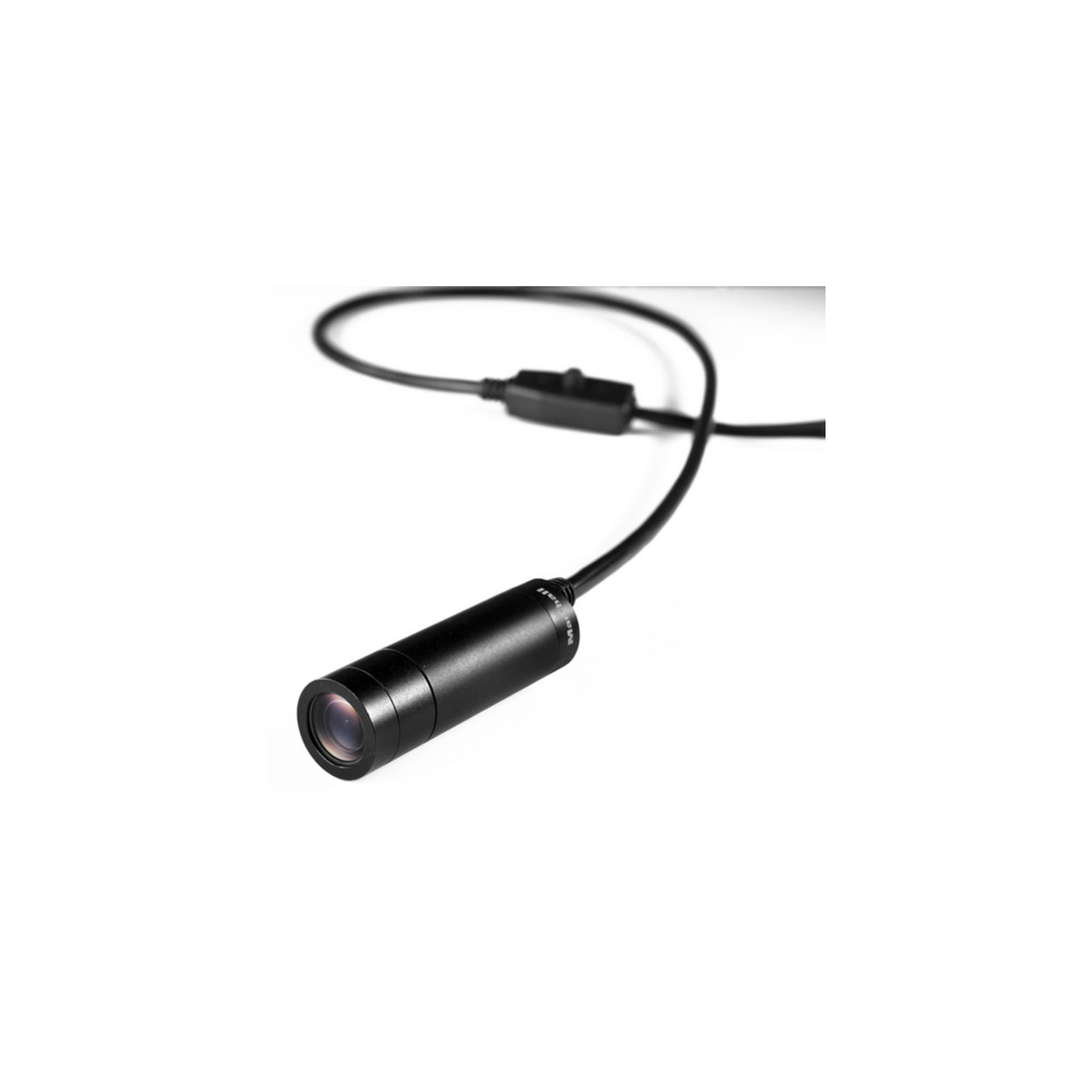

IP67 Weatherproof Lipstick-Style Broadcast Camera with 4mm Interchangeable Lens - 3G-SDI Output

- Ultra-compact lipstick-style camera measuring just 62.5mm x 19.5mm x 19.5mm
- M12 interchangeable lens mount
- 4mm M12 lens included
- 3G-SDI video output connector
- 1/2.86" 2.5 megapixel sensor
- 1920×1080 up-to 60P
- IP67 rain & dust protection rating
- Integrated 10' I/O breakout cable with control joystick

CV228 can be positioned in discreet locations with the ability to withstand dirty, dusty and wet environments due to its IP67 rain and dust protected housing.
Despite its compact form factor, CV228 produces high-quality video delivered over full-size 3G/HD-SDI in Progressive or Interlaced resolutions up to 1920×1080.

Utilising the latest Sony sensor and processor technology, CV228 produces professional images with a low noise threshold, even in dim lighting conditions.
Easily select between 60, 59.94, 50, 30, 29.97, 25fps at 1080p, 1080i, and 720p resolutions.
For remote matching and adjustment, CV228 supports RS-485 control, allowing precision picture adjustments to be performed from control rooms, OB vans or broadcast trucks.

Stands - Hardware - Tools

Manfrotto

244MICRO-AR

₦ 207,850.18 VAT included

Available 4 unit in 4 Days

Manfrotto

244microKIT

₦ 259,557.68 VAT included

Available 0 unit

Manfrotto

244MICRO

₦ 187,156.43 VAT included

Available in 14 days

Sensor
Sensor Type: 1/2.86" 2.5 Megapixel
Effective Pixels: 1981×1288
Pixel Size: 2.75(µm) x 3.2(µm)

Resolution & Frame Rates
HD 1920x1080p: 25, 29.97, 30, 50, 59.94 & 60
HD 1920x1080i: 50, 59.94 & 60
HD 1280x720p: 25, 29.97, 30, 50, 59.94 & 60

Input & Output Connectors
Video Output: 1x 3G-SDI
Remote Control: 1x RS-485 Interface
Power Input: 1x Locking Barrel 12V DC Power Connector

Lens
Mount Type: M12
Focal Length: 4mm
Max. Aperture: f/2.0
Focus: Manual

Image Control Settings
White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)

Control Protocol
Control Protocol: RS-485

General
IP Rating: IP67
I/O Cable Length: 10'' (3.05 m)
Power Input: 12V DC
Power Consumption: Max. 6W
Weight: Approx. 195g (with I/O Cable)
Dimensions: 62.5mm (l) x 19.5mm (w) x 19.5mm (h)
