GP-KH232HE

Name: GP-KH232HE
Brand: Panasonic
SKU: GP-KH232HE
Price: 3584855 NGN
Availability: OutOfStock

Panasonic

Micro Camera Full HD 1/3" 1 MOS 2000lux

go to the technical sheet

₦ 3,584,855.00

₦ 3,334,749.00 VAT excl.

Available in 19 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

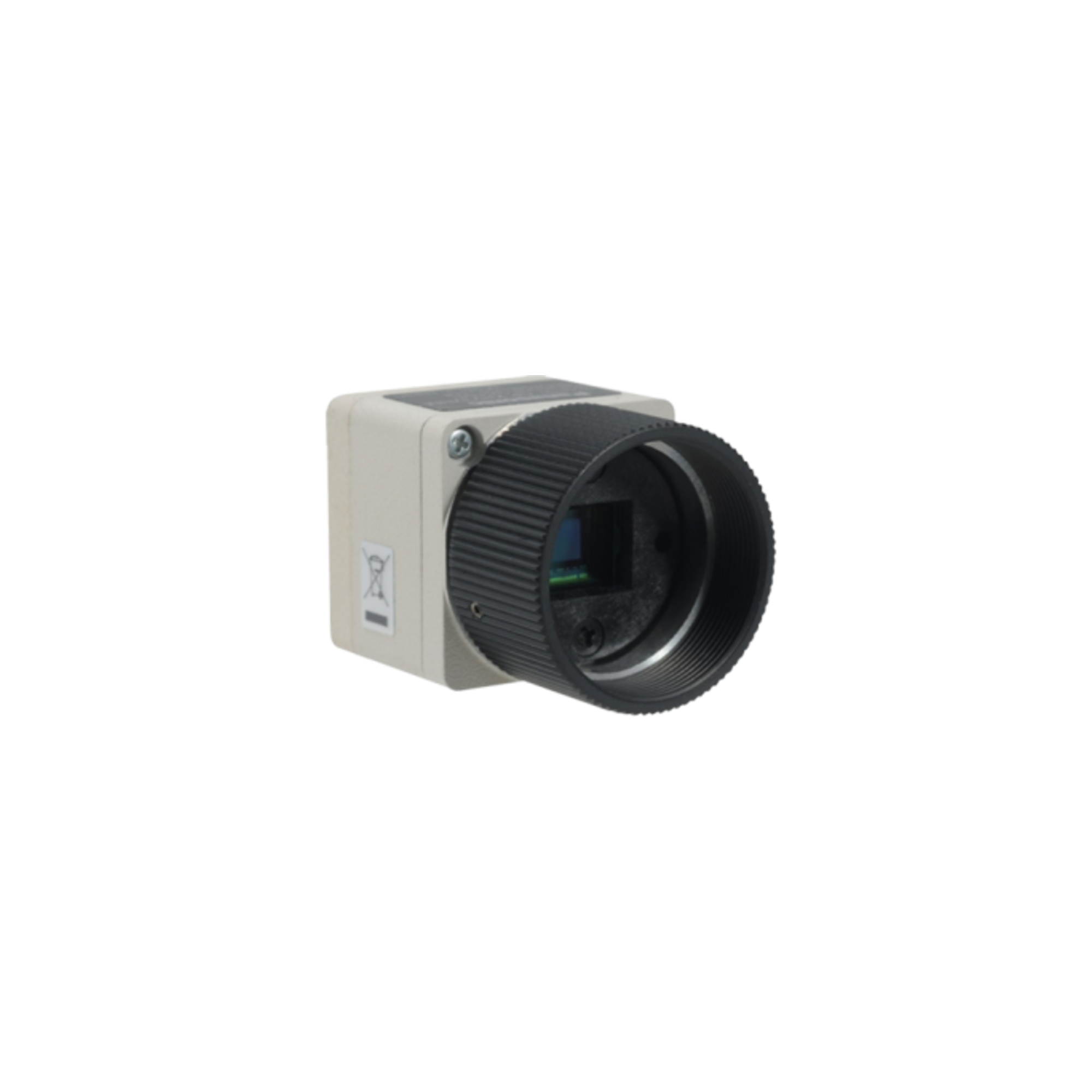

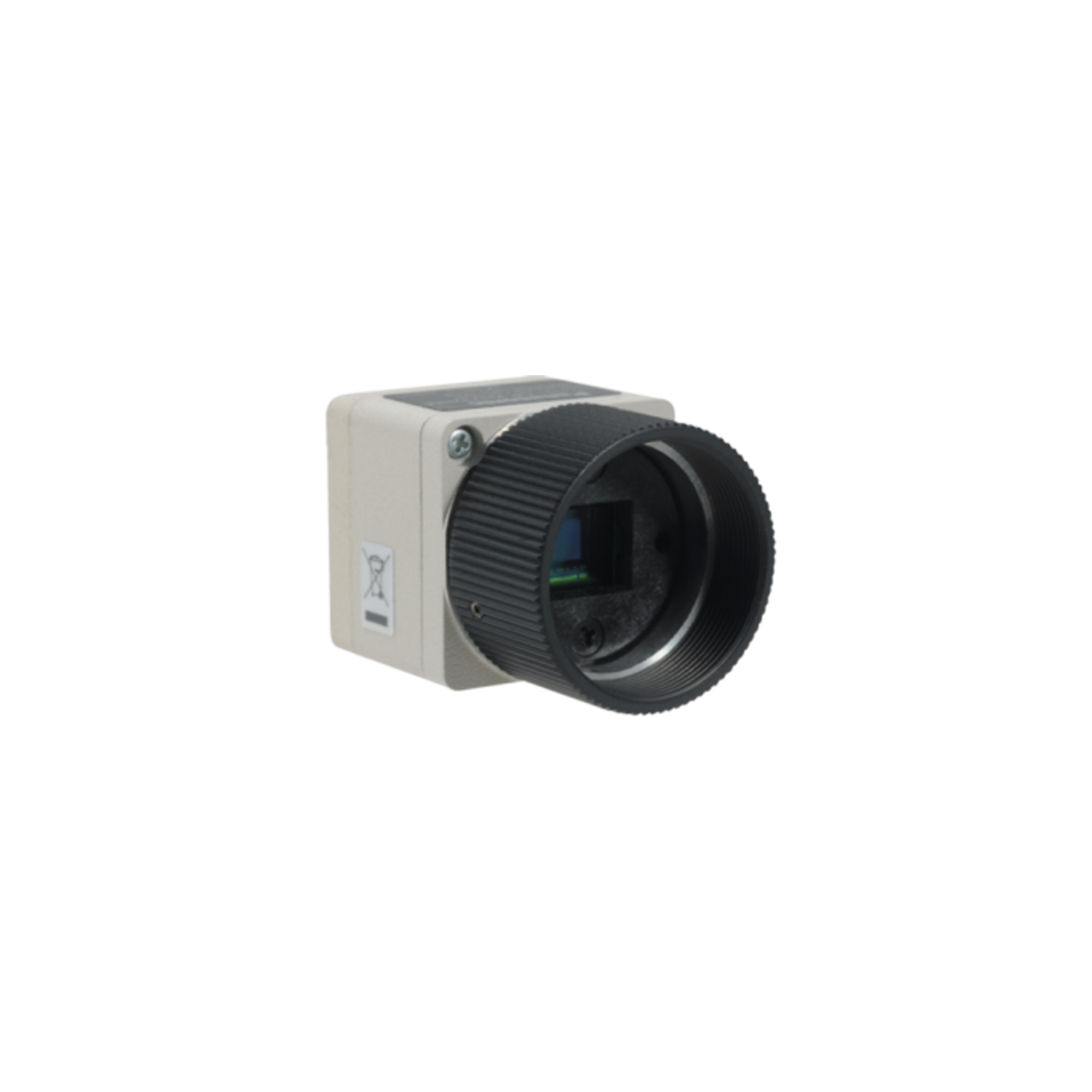

The Panasonic GP-KH232HA 1MOS HD Remote Camera Head is used with the GP-KH232CUA/CSA Camera Control Units (available separately) to provide a solution for various specialty applications. The camera head features a 1/3" type MOS sensor that captures high-definition images in 900 TVL. The head allows for direct attachment of C-mount lenses or a microscope attachment (both available separately) to meet your requirement. You can also attach a fiber or bore scope (available separately) via an adapter (not included) for remote visual inspection applications.

Note: A separately available HD Camera Cable of suitable length is required to connect the remote camera head to the CCU. Lenses and other attachments not included.

Used with the GP-KH232CUA/CSA HD Camera Control Units

1/3" type Full HD single MOS sensor

900 TVL (typical) horizontal resolution

Internal or external synchronization

Minimum illumination of 5 lux (f/1.4, Gain: High, 30% output, at center)

Accepts C-mount lenses (not included) or a microscope attachment 1

A bore scope or fiber scope may also be connected using separately sold adapters

Compact and lightweight at just 1.8 oz

Cables & Connectors Power Supply & Chargers

Panasonic

GP-KC23202V

₦ 740,405.00 VAT included

Available in 19 days

Panasonic

GP-KC232M4

₦ 1,067,635.00 VAT included

Available in 19 days

Panasonic

GP-KC23206V

₦ 1,058,820.00 VAT included

Available in 19 days

Panasonic

GP-KC23215V

₦ 1,948,705.00 VAT included

Available in 19 days

Panasonic

GP-NT15MPU16-105

₦ 218,815.00 VAT included

Available in 19 days

Download

Datasheet

Download (2.1MB)

For Use with GP-KH232CUA and GP-KH232CSA HD Camera Control Unit
Image Sensor 1/3" type Full HD MOS
Synchronization Internal or external
Scene Illumination Required: 2000 lux (3200K, f/8)
Minimum Illumination 5 lux (f/1.4, Gain: High, 30% output, at center)
S/N Ratio 54 dB (at output using 1080i)
Horizontal Resolution 900 TVL at center (typical, at 1080i output)
Recommended Lenses: Fujifilm DF6HA-1B, HF9HA-1B, HF12.5HA-1B, HF16HA-1B, HF25HA-1B, HF35HA-1B, HF50HA-1B 1
Please Note:

The recommended C-mount lens aperture ranges from f/2.8 to f/16. A lens whose projection length of the lens mount section is 9/32" (7 mm) or less should be used.
close
Video Outputs HDMI, RGB/YPbPr, S-video when GP-KH232CUA is used
HDMI, RGB/YPbPr, SDI when GP-KH232CSA is used 2
Please Note:

HDMI, RGB/YPbPr, S-video, SDI outputs are available on the CCU.
close
Video Formats S-Video: 480/59.94i, 576/50i (GP-KH232CUA only)
RGB/YPbPr: 1080/59.94i, 1080/50i, 1080/29.97p(sF), 1080/25p(sF),720/50p, 720/59.94p, 576/50p, 576/50i, 480/59.94p, 480/59.94i
HDMI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97p(sF), 1080/25p(sF), 720/59.94p, 720/50p, 576/50p, 576/50i, 480/59.94p, 480/59.94i
SDI: 1080/59.94i, 1080/29.97p(sF), 1080/50i, 1080/25p(sF), 720/59.94p, 720/50p, 576/50i, 480/59.94i (GP-KH232CSA only) 3
Please Note:

Available after processing from the CCU.
close
Ambient Operating Temperature 32 to 104°F (0 to 40°C)
Ambient Operating Humidity 30 to 90%
Dimensions (W x H x D) 1.09 x 1.06 x 1.53" (2.80 x 2.70 x 3.90 cm)
Weight Approximately 1.8 oz (48.0 g)
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 5.3 x 3.8 x 2.6"
