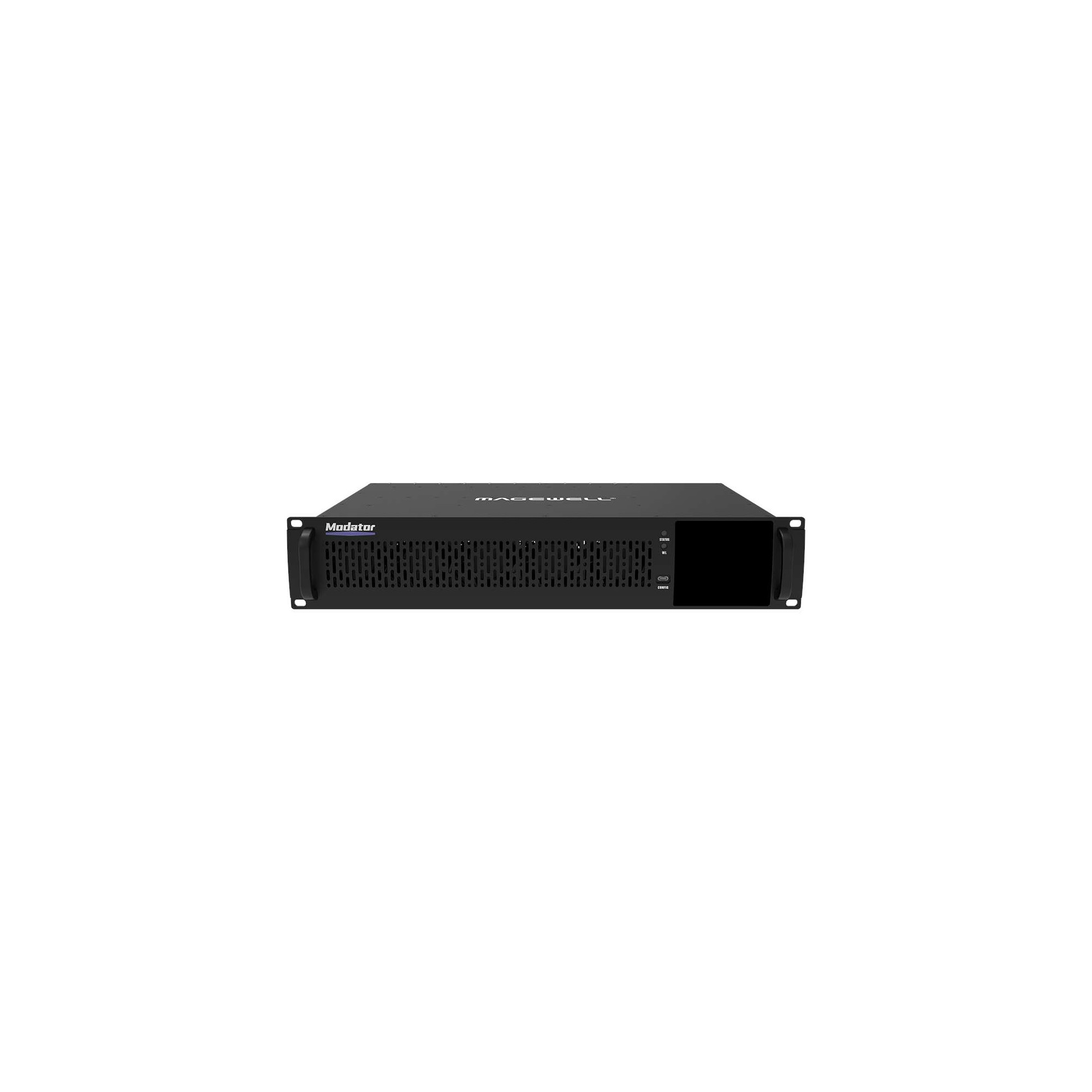

Modator 2U

Interfaces
10* Modator slots supporting hot swap of Magewell modules
1* RJ45 1000Mbps Ethernet port for configuration
1* USB Type-C port for configuration

Power and Power Consumption
Hot-swappable dual power supply modules for safety and redundancy
AC: 100-240V, 7-3.5A, 60/50Hz
Maximum power consumption of the chassis: 200W
Maximum power consumption of each slot: 20W
Standby power consumption: 11W (Touchscreen off), 11.9W (Touchscreen on)
No-load power consumption: 17W (Touchscreen off), 17.9W (Touchscreen on)

Status Indication
Status indicator:
- Blue: Working
- Flashing Blue: Standby
Warning light:
- Red: Error
- Off: Normal
Power indicator:
- Green: Output on and OK
- Flashing Green: Standby or Cold Redundancy
- Red: Error or fault
Buzzer:
- Beeping: Error
- Off: Normal

Touchscreen
Dimension: 91mm x 81mm

Control
Touchscreen:
- Power on/off the device
- Display the device information
- Display information about the connection state of each slot and information of inserted modules
- Display and edit Ethernet information
- Display logs to trace important events
- Display notifications of errors
Web UI:
- Provides comprehensive information regarding the device
- Provides basic information and working status regarding connected modules
- Supports managing and configuring the device, such as changing device name, enabling beeper, updating firmware, setting network, etc.
- Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provides HTTP APIs

Supported Modules
- Pro Convert for NDI to HDMI module
- Pro Convert for NDI to AIO module
- Pro Convert HDMI 4K Plus module
- Pro Convert HDMI Plus module

Working Environment
Operating temperature: -10 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

Physical
Form factor: 482mm (L) x 275mm (W) x 88 mm (H)
Weight: 5.6kg (with 10 blank panels)

1x High density server rack, for Magewell Encoder/Decoder modules
