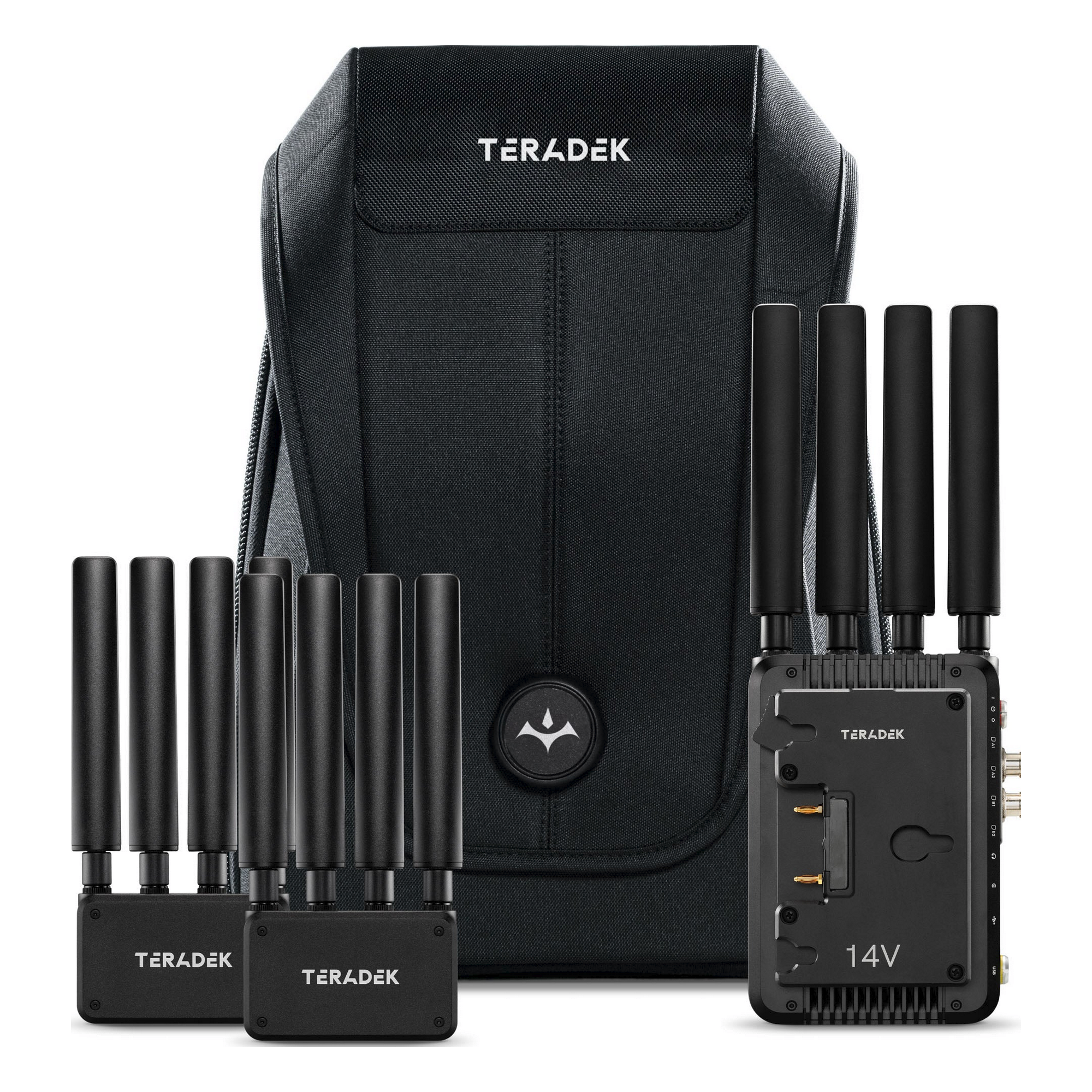

2x Prism Mob. Backpack MkII VM

Prism Mobile Backpack
Bonding: Support for up to 4 additional Node Modems using 5-pin connectors and external power
Supported Modems: Node II | Node II CBRS | Node 5G
Power Input:
- Requires external power from standard PTAP adapter, Gold, V-Lock Battery Plates NOTE: 26V IS NOT SUPPORTED.
- Recommended Battery: Anton Bauer Batteries

Prism Mobile 5G
Video Inputs:
- 1x SD/HD/3G/6G/12G-SDI (75 O BNC)
- 1x HDMI 2.0 Type-A
Hdr Support: Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Video Outputs: 1 x SD/HD/3G/6G/12G-SDI (75 Omega BNC)
Supported Modes: Single Encode, Bi-directional Encode/Decode (additional license)
Bonding: Teradek Bonding Protocol, Teradek Reliable Transport (TRT)
Supported Resolutions:
4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i 480i
Video Compression:
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main
Supported Video Bitrate: 250 kbps to 85 Mbps
Video Format Conversion Support: Built in video scaler and deinterlacer
Number Of Encoder Streams: Up to one 4KDCI p60 4:2:2 10bit
Color Correction:
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
Protocol Support:
Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, TLS, IGMP
Supported Video Transport Protocols:
- Teradek Reliable Transport (TRT)
- Secure Reliable Transport (SRT)
- RTMP/RTMPS
- MPEG-TS, DASH (UDP, TCP, TCP Server, Multicast)
- RTSP/RTP
- RIST
- HLS Client
- Integrated CDNs (YouTube, Facebook, Vimeo),
- WHIP
Remote Control: Teradek Core Cloud, Private SDK
Audio Compression: AAC-LC
Audio Bitrate: 32kbps to 512kbps
Inputs:
Audio Input: Embedded over SDI | 3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Outputs:
Audio Output: 3.5mm Stereo Headphone output | Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)
Network:
Ethernet: 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless: WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration
Power:
Power Input: 2 Pin Circular Locking Connector
Nominal Power Consumption: 20W Nominal, 36W Max
Auxilary Power Input: 6-28V DC
Physical:
Construction: Milled Aluminum
Mountability: Camera-back, Gold, Gold 26V and V-Lock mounts. Can be mounted with 1/4" 20 mounting hole
Dimensions: 5.9"W x 3.9"D x 1.3"H [162 x 92 x 35mm]
Weight: 23.4oz [664g] without plates, 30.5oz (864g) with plates

1x Prism Mobile 5G V-Mount
1x Backpack Bonding Assembly with Cabling
2x Node 5G
12x Long Multi-band SMA Antenna
4x Short Multi-band SMA antenna
1x 3.0A PTAP power supply
