MMV1630

Name: MMV1630
Brand: Avmatrix
SKU: MMV1630
Price: 3098418 NGN
Availability: OutOfStock

Avmatrix

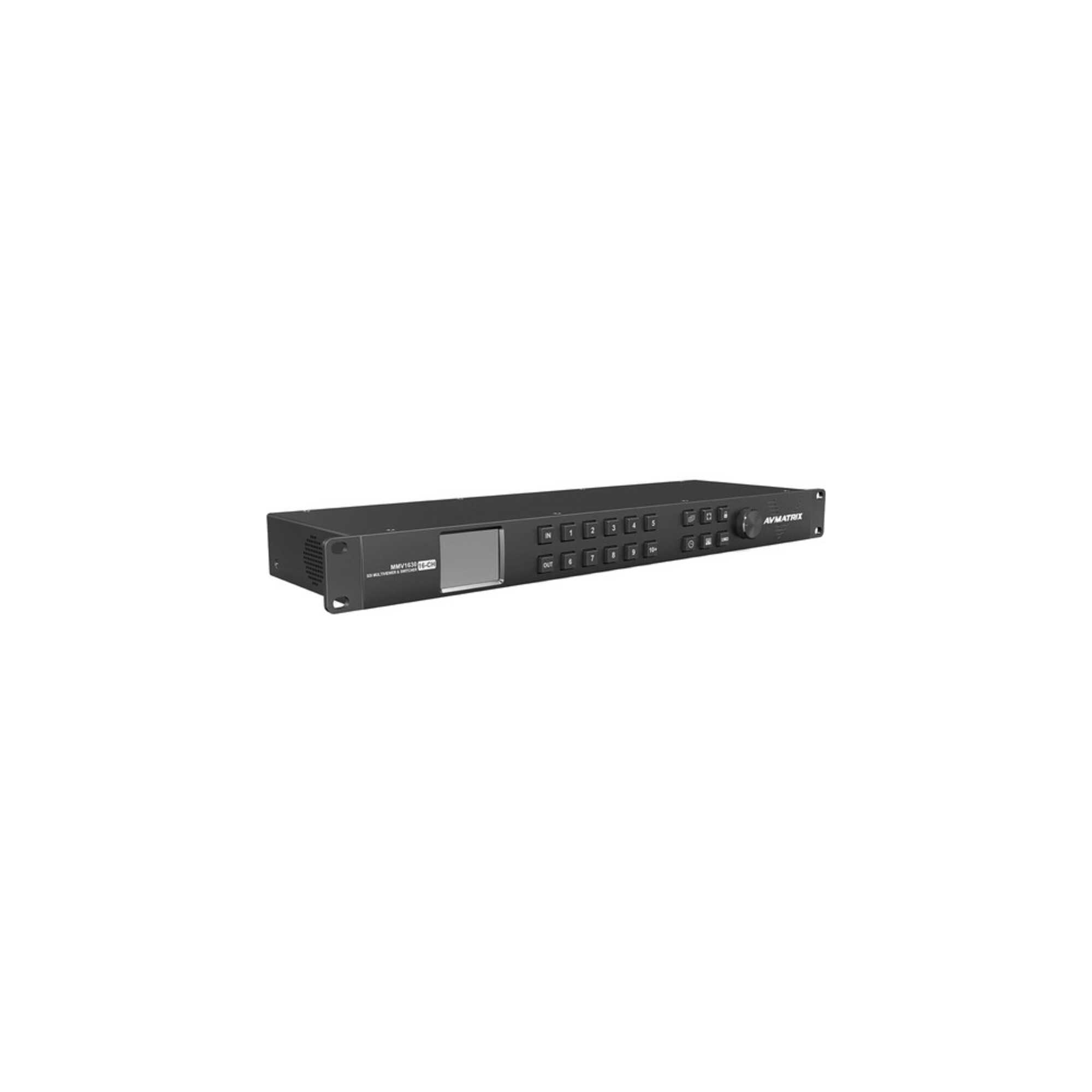

16-Channel 3G-SDI Multiviewer and Switcher (1 RU)

go to the technical sheet

₦ 3,098,418.00

₦ 2,882,249.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

The 1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can be selected from nine formats from 720p to 1080p and include 20 standard layouts. The signals are viewed simultaneously on one display and each window is completely independent with overlays such as signal status, audio meter, UMD, and time code.

Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet. A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios.

16 x 3G-SDI auto-detected inputs with loop outputs
2 x 3G-SDI and 1 x HDMI multiview scaling outputs with audio
Full screen and 20 preset layouts with clock display
Dual power design, redundant power

Multi-view monitoring
Inputs: 16 SD/HD/3G-SDI
Loop Outputs: 16 SD/HD/3G-SDI
Go out
2 SDI
1HDMI
Resolution
SDI input:
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98Hz
1920 x 1080PsF @ 30/29.97/25/24/23.98Hz
1920 x 1080i at 60/59.94/50Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98Hz
625i 50 PAL
525i 59.94NTSC

SDI/HDMI Output:
1080p at 60/50/30/25/24Hz
1080i at 60/50Hz
720p at 60/50Hz
SDI Auto Switching: Auto Selects SD, HD and 3G-SDI on input
SDI video rates: SD/HD/3G-SDI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M
Color space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI input)
YUV 4:2:2 (HDMI/SDI multi view output)
Switch
Inputs: 16 SD/HD/3G-SDI/DVB-ASI
Outputs: 16 SD/HD/3G-SDI/DVB-ASI
SDI format support
2048 x 1080p at 30/29.97/25/24/23.98Hz
2048 x 1080PsF at 30/29.97/25/24/23.98Hz
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98Hz
1920 x 1080PsF @ 30/29.97/25/24/23.98Hz
1920 x 1080i at 60/59.94/50Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98Hz
625i 50 PAL
525i 59.94NTSC
SDI Auto Switching: Auto Selects SD, HD and 3G-SDI on input
SDI video rates: SD/HD/3G-SDI
SDI Compliant: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
Color space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4
General
Controls: Front panel buttons and knob
Connectors: LAN (software and update)
RS-422 (reserve)
Screen: 2.2"/5.6cm LCD screen
Voltage: 12 to 20 Vdc
Power supply: PS-1, PS-2, power redundancy
Power Consumption: 36W
operating temperature: 32 to 140°F / 0 to 60°C
Storage Temperature: -22 to 158°F / -30 to 70°C
Humidity: 0 to 90%
Rack size: 1 R.U
Dimensions: 19.0 x 1.7 x 5.9"/48.3 x 4.4 x 14.9cm
The weight: 4.4 lbs / 2 kg
Packaging information
package weight: 7.5 lbs
Box dimensions: 21.9 x 10.5 x 3.3"
