FiDO-R-R0

Name: FiDO-R-R0
Brand: AJA
SKU: FiDO-R-R0
Price: 687.65 EUR
Availability: OutOfStock

AJA

AJA FiDO Single-Channel Fiber to dual 3G-SD/HD/SDI Output Mini Converter

go to the technical sheet

€ 687,65

€ 639,67 VAT excl.

Available in 24 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

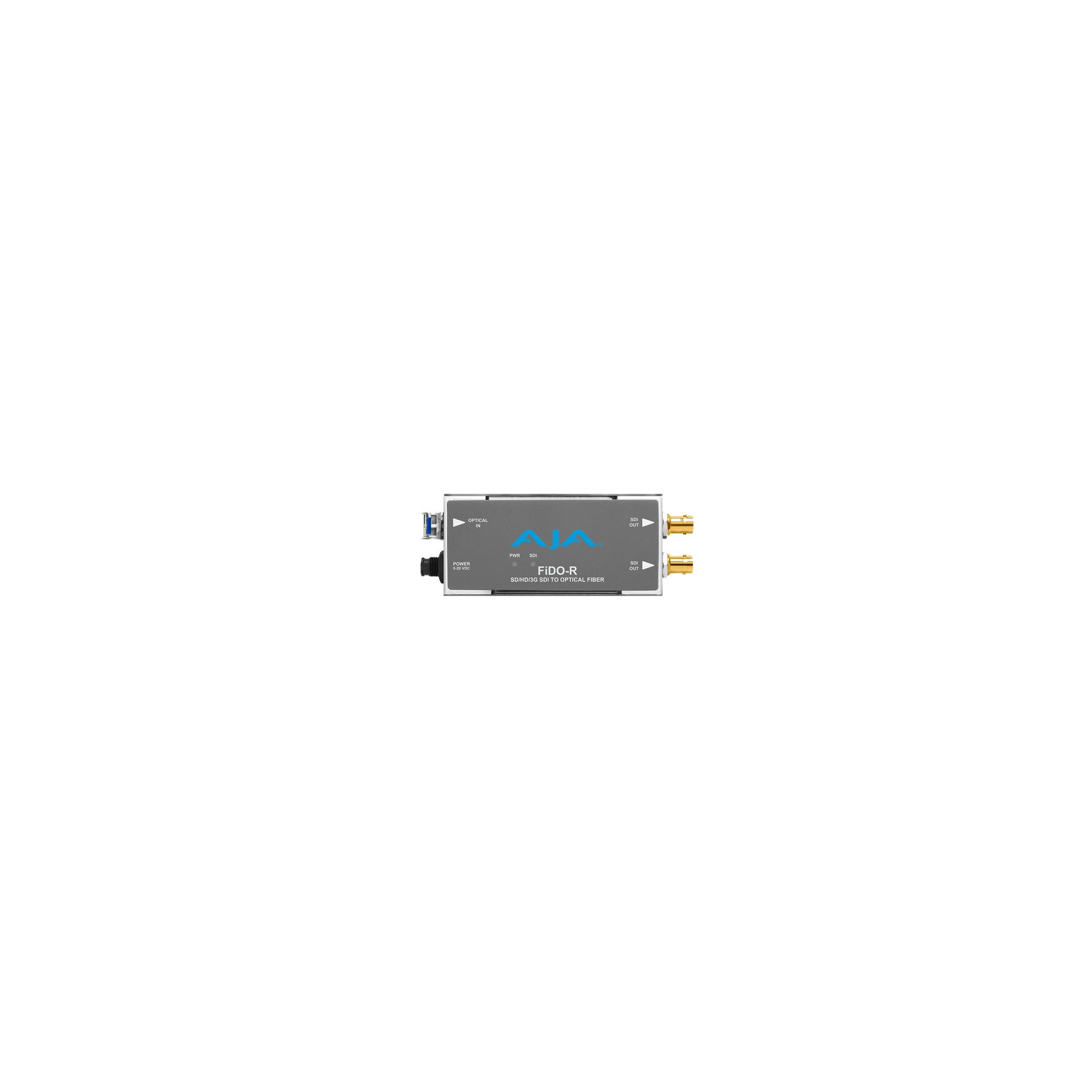

AJA FiDO Single-Channel Fiber to dual 3G-SD/HD/SDI Output Mini Converter.

FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single- mode fiber optic cable, with your choice of LC, ST, or SC connectors, depending on the converter model. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and suitable for indoor or outdoor use.

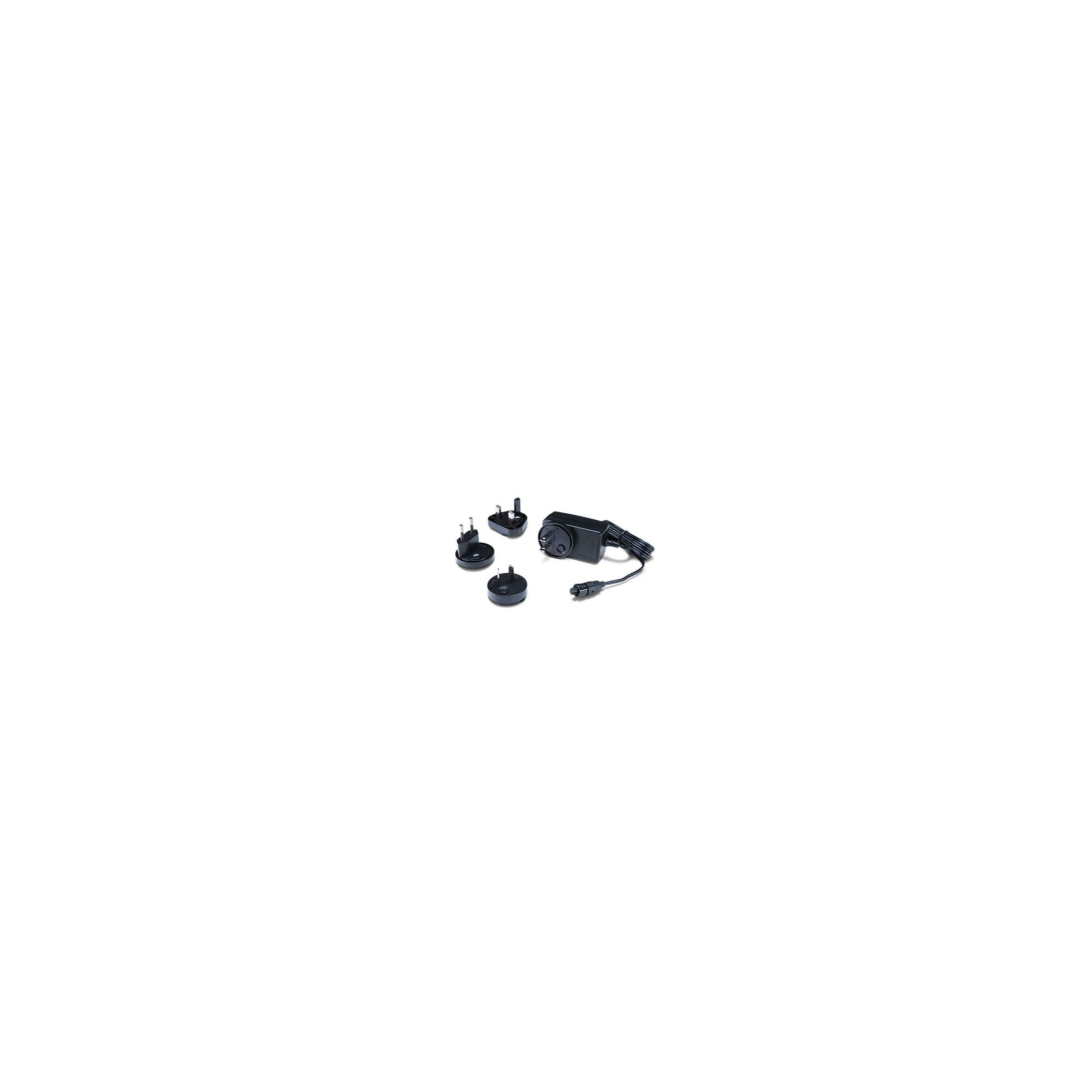

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Features:

1-Channel Single Mode LC Fiber to 3G-SDI Receiver
Simplex connection (LC connector)
3G/HD/SD-SDI OUTPUT
Dual, matching SDI outputs
Uses 5-20VDC power (DWP-U-R1 universal power supply included)
Five year warranty

Video Formats:

150 Mbps - 3 Gbps, format agnostic

Video Input Digital:

1-channel Single Mode LC Fiber Input, SMPTE-297
Nominal Wavelength: 1260 - 1620 nm
Optical Sensitivity: -18dBm (min)
Overload Power: -3dBm (min)

Video Output Digital:

1-channel Dual matching 3G-SDI BNC Outputs, SMPTE-259/292/424

Reclocking:

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked

Size (w x d x h):

4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

Weight:

0.5 lb (0.3 kg)

Power:

2 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment:

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
