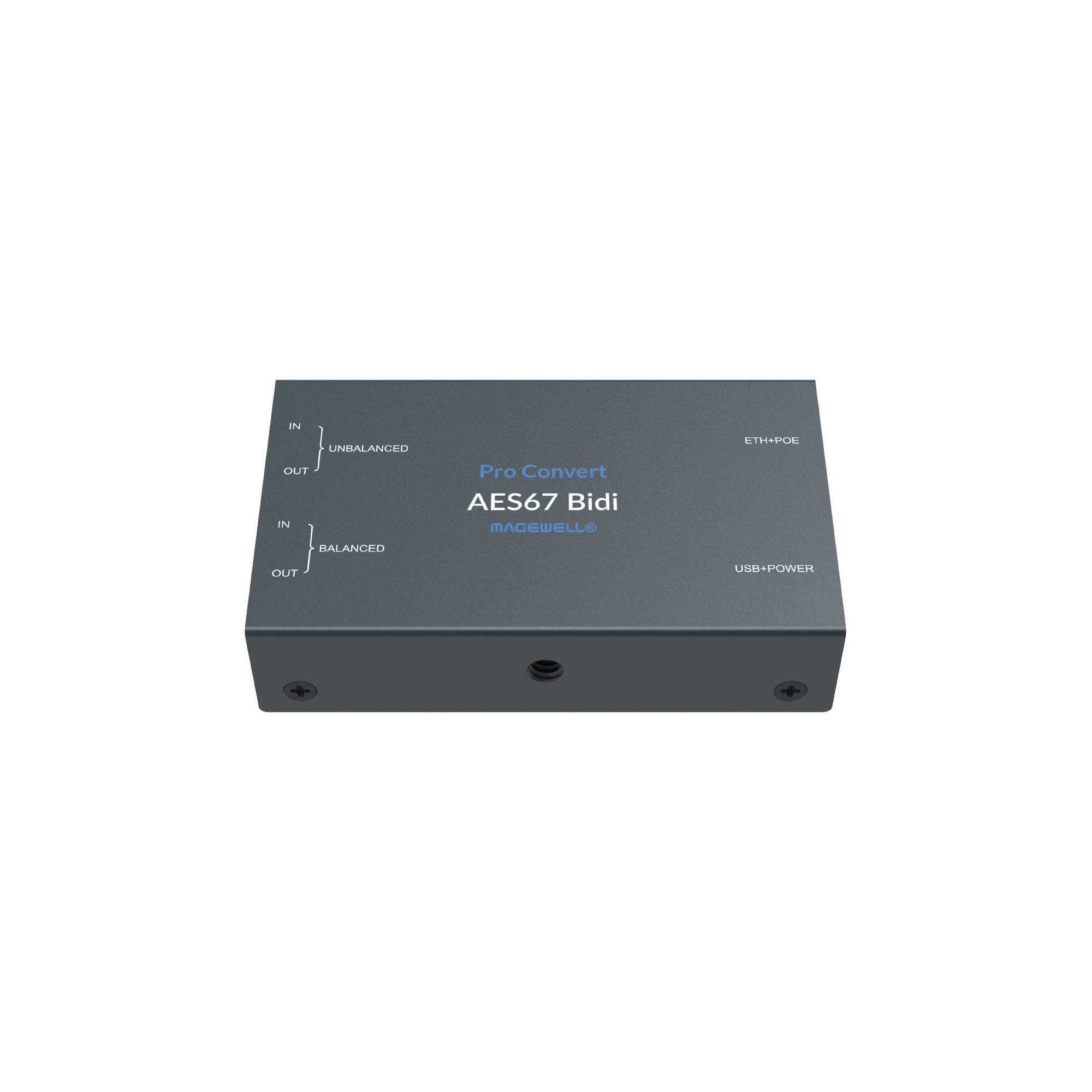

Pro Convert AES67

Name: Pro Convert AES67
Brand: Magewell
SKU: Pro Convert AES67
Price: 396.72 EUR
Availability: OutOfStock

Magewell

EAN: 6936572401416

Analog / digital audio converter to and from AES67 and Icecast IP streams

go to the technical sheet

€ 396,72

€ 369,04 VAT excl.

Available in 24 days

Not sure if this is the right product for you? Talk to a consultant

- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and others
- provides a flexible virtual audio matrix to allow any analog or IP-based input channel routing or mixing to any output
- Enables local and remote mixed-technology production workflows and ProAV installations

Pro Convert AES67 allows you to use the audio equipment you already own, your trusted equalizer compressors or analog power amplifiers, adapting them to the world of audio networking with the Magwell audio unit, processing receive and transmit analog and digital audio data . The ultra-compact Pro Convert devices are ideal for both studio and portable use in the field. Value-added features for live editing applications include WebUI for remote control production, a ¼-20 thread for mounting accessories, effectively broadcast audio online
- NDI / SRT / Icecast and audio over IP - Native AES67.
Units can be powered from a DC adapter or via Power over Ethernet (PoE) for further ease of deployment.

Main features:
Be compatible with ST 2110-30

3.5mm unbalanced / 4.4mm balanced input and output / USB audio class / Icecast / AES67 / NDI / SRT

Timing synchronization with nanosecond precision is provided using IEEE 1588-2008 Precision Time Protocol (PTP) version 2 (PTPv2)

Integrated audio A / D and D / A converters

Remote management via Magewell Cloud and web UI

Compatibility with a wide variety of TCP / IP devices, including PCs and audio processing software

Dual-power input options, power from a Power over Ethernet (PoE) switch, a PoE injector (802.3 af) or DC 5V via MicroUSB connector

3 System requirements Network supported web browser for web user interface PoE injector (802.3 af) or DC 5V via MicroUSB connector

Web UI configuration

Pro Convert allows it to be controlled via a web-based user interface. With the web user interface, you can monitor device operation status, input signal status, and configure session settings.

Check the status of the device, audio, streaming, Ethernet and many more.

Global settings (set parameters)

PTP configuration

Stream (NDI, SRT, Icecast TX / RX sessions)

Audio Matrix Tab - Switching matrix for selectively connecting input signals to desired output paths.

USB audio class

USB digital audio input up to 8 channels at 48 KHz
USB digital audio output up to 8 channels at 48 KHz
Wide Compatibility: AES67 BIDI is compatible with Windows systems,
Linux and Mac. Can work with
web conferencing software such as Zoom, Teams.

10/100/1000 Mbps with PoE (IEEE 802.3af) AES67

Receive up to 4 AES67 streams in 8 channel mode (up to active channels)
Multicast streams up to 8 endpionts within a LAN. Each connection contains up to 8 channels.
It is ideal for high performance multimedia networks that transmit professional audio streams with ultra low latency (less than 10ms). Supports 16- and 24-bit linear PCM input and output data, with sampling rates of 44.1kHz, 48kHz, 96kHz. And the codec supports operation with AES67-enabled Dante and Merging devices.

Icecast

1 x Icecast 2-channel input in AAC or MP3 formats
1 x 2 channel icecast output in AAC format
It can be used to create digital audio networks so you can listen to Icecast internet radios and stream local audio to a specific icecast server.

Input / reception functions

Reception of up to 46 audio channels

1 x 2 3.5mm unbalanced channels
1 x 2 balanced 4.4mm channels
1 x 4-channel 24-bit / 48k UAC input
Reception of 4 x 8 channel 24-bit AES67 streams both multicast and unicasted
It is optional to receive 1 x 4-channel 24-bit SRT stream or 1 x 4-channel 24-bit NDI® stream or 1 x 4-channel 24-bit Icecast stream

Output / Send functions

1 x 2 3.5mm unbalanced channels
1 x 2 4.4mm balanced channels
1 x 4-channel 24-bit / 48k UAC output
Multicast and unicast up to 8 8-channel 24-bit AES67 streams
1 x 4 channel 24-bit audio encoding for Icecast / SRT / NDI® streaming simultaneously

Audio routing and mixing functionality

Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

Other

Plug-and-play as a UAC device
Provide complete information about the device and signals in real time
Remote control via Web GUI and Magewell Cloud
Support USB RNDIS / ECM
Provide HTTP API

Power Adapter (US / EU / UK / AU / JP): x1
Power adapter (KR): x1
USB Type A to Type B Cable: x1
L bracket: x1
4.4mm to Dual XLR Male Cable: x1
4.4mm to Dual XLR Female Cable: x1
