DAC-91

Name: DAC-91
Brand: Datavideo
SKU: DAC-91
Price: 489.89 EUR
Availability: OutOfStock

Datavideo

EAN: 672255006870

3G/HD/SD-SDI 2-Channel Analog Audio Embedder

go to the technical sheet

€ 489,89

€ 455,71 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Allow users to embed 2 channels of analogue audio into SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.

Devices for System Integration

Datavideo

RMK-2

€ 420,20 VAT included

Available in 14 days

SDI Video Input

3G/HD/SD-SDI x 1

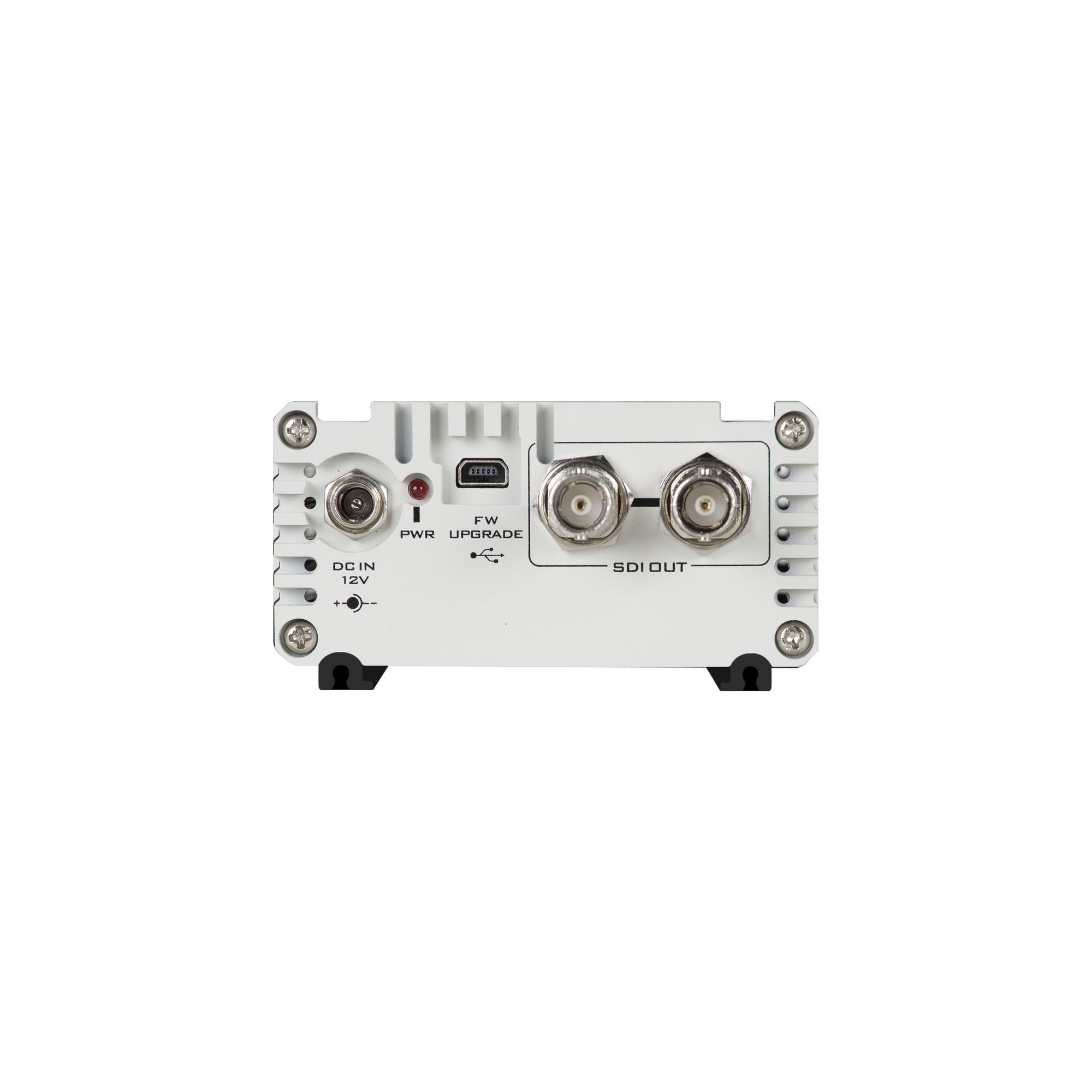

SDI Video Output

3G/HD/SD-SDI x 2

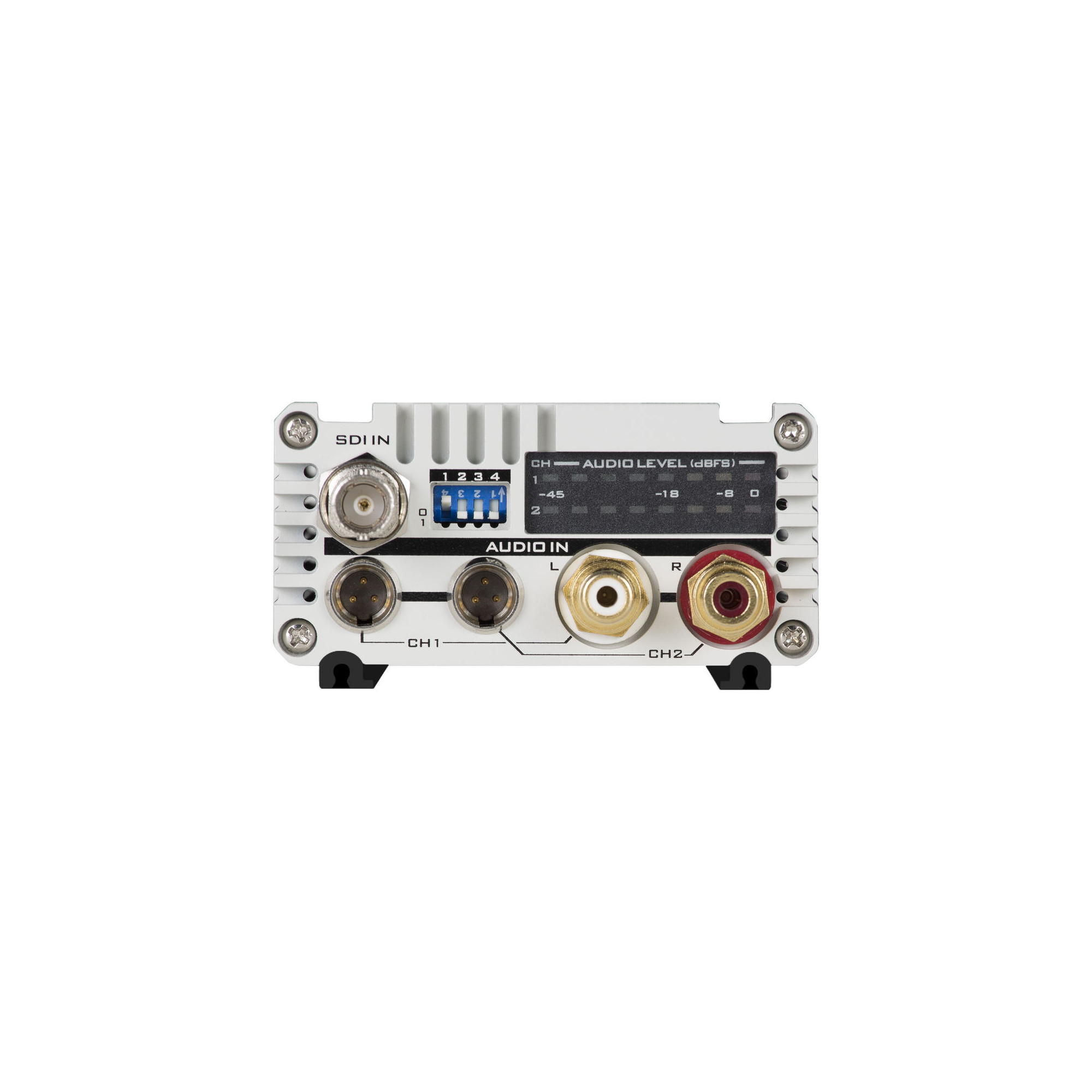

Analog Audio Input

Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2
* Mini XLR1 & RCA1 mixed to CH1
* Mini XLR2 & RCA2 mixed to CH2
Indicator

Power LED x 1 Audio Level LED : 2 rows
Updates and Configuration

Mini USB x 1
Audio Format Selection

SMPTE, EBU
Gain

Yes
Dimension (LxWxH)

112 x 85 x 45 mm
Weight

0.4 kg
Operating Temp. Range

0~40 °C
Power

DC 12V, 0.5A
What''s in the Box

1 x DAC-91 product
1 x AD Switch DC 12V
2 x Mini XLR to female XLR cable
1 x Thank You Card
