IPT-10G2-HDMI

Name: IPT-10G2-HDMI
Brand: AJA
SKU: IPT-10G2-HDMI
Price: 1877.09 EUR
Availability: OutOfStock

AJA

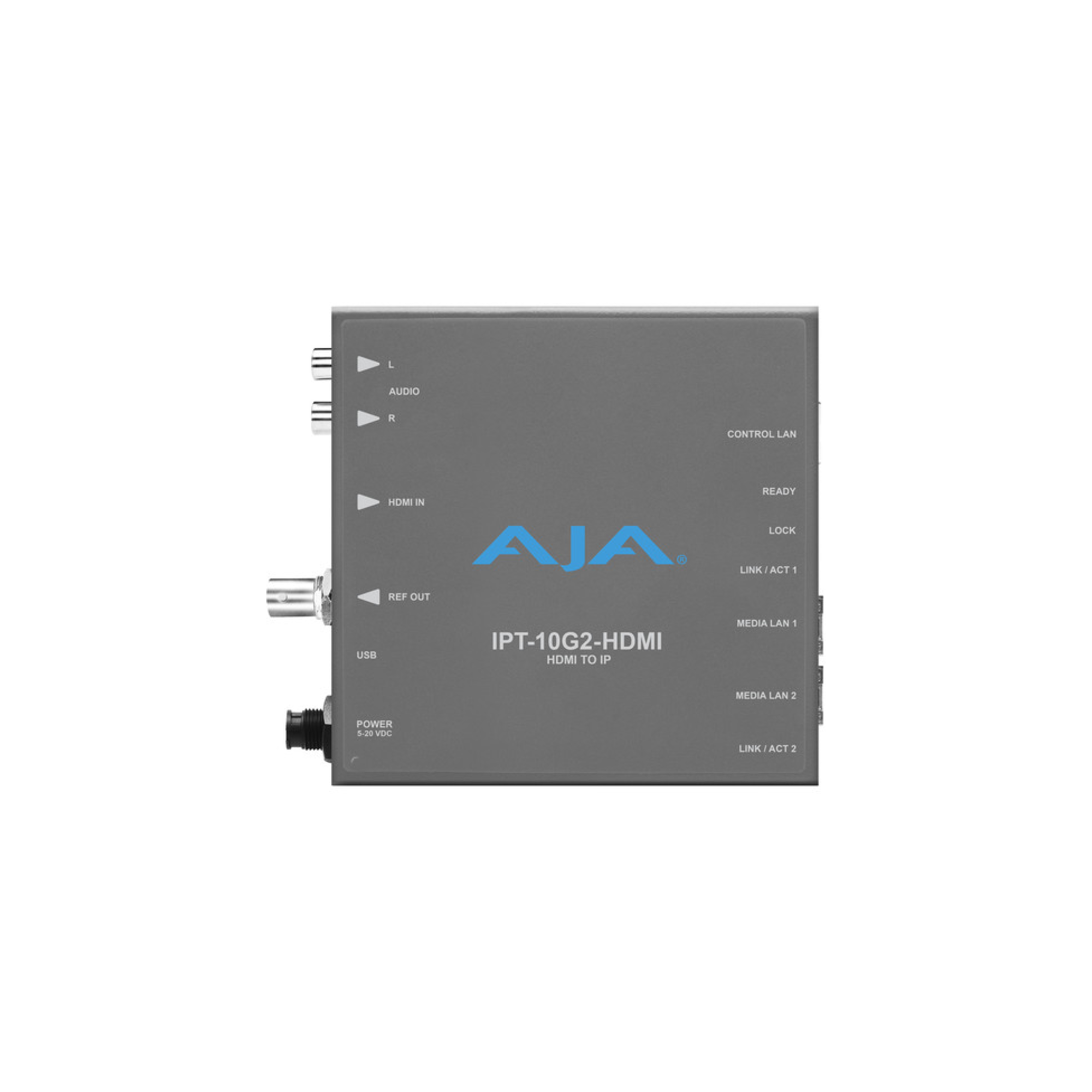

AJA IPT-10G2-HDMI HDMI to SMPTE ST 2110 Video & Audio Converter

go to the technical sheet

€ 1.877,09

€ 1.746,13 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

AJA IPT-10G2-HDMI HDMI to SMPTE ST 2110 Video & Audio Converter

Convert a single HD HDMI signal for highly efficient SMPTE ST 2110 IP transmission using the IPT-10G2-HDMI Mini-Converter from AJA.
Supporting up to 1080p60 video, this mini-converter provides two interfaces for use with separately available 10 GbE SFP+ modules.
Hitless SMPTE ST 2022-7 switching for critical transmissions is offered via the redundant interface design.

The IPT-10G2-HDMI Mini-Converter processes up to eight channels of SDI-embedded audio or analog stereo audio input via its RCA inputs.
Control options include a 1 GbE RJ45 LAN socket for customizable, browser-based control on any platform and on REST clients and a USB Mini-B port for initial configuration and updates.

Versatile power features include a universal power supply with a locking power connector and international plug adapters and a separately available D-Tap cable for powering the unit via battery on remote locations.
The AJA IPT-10G2-HDMI Mini-Converter features a durable, fanless housing that is compact enough to fit directly on your monitor or camera rig.

° Features
Converts an HD HDMI source to highly efficient SMPTE ST 2100 IP transmission
Two 10 GbE SFP+ cages for media LAN enable redundant, hitless switching
Single HDMI Type A input supports up to 1080p60, 4:2:2, 10-bit YCbCr video
Single 1 GbE RJ45 LAN control socket
Status lights on SFP+ and RJ45 sockets
Compact and durable fanless design
Full 10-bit pixel processing pipeline
Dual RCA analog audio inputs
Single USB Mini-B port for initial configuration and updates
Built-in server enables complete control from any web browser
Customizable control via AJA REST API

° Recommended 10 GigE SFP+ Modules:
Arista Networks SFP-10G-SR Compatible 10GBASE-SR
Fiberstore SFP-10GSR-85 10G SFP+ 850nm
Finisar FTLX1471D3BCL (for single mode 1310nm)
Mellanox MFM1T02A-SR 850nm 10G

Inputs / Outputs
Video Inputs: 1 x HDMI (HDMI 1.4b) Female
Audio Inputs: 2 x RCA Analog Female
Other I/O:
° 1 x RJ45 LAN Input/Output
° 1 x Mini-USB
° 1 x BNC Reference Output
Expansion Slots: 2 x SFP+ Slot

Format Support
Input Video Format:
° HDMI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
Input Audio Format: AES/EBU: 48 kHz / 24-Bit
Output Audio Format: Analog
Embedded Audio: HDMI Input: 8-Channel

Standards
Video Standard Compliance: SMPTE ST-2022-7/ST-2110
HDR Compatibility: Not Specified by Manufacturer

Hardware
Wi-Fi: None

Power
Power I/O: 1 x Proprietary (5 to 20 VDC) Input
Power Consumption: Power Supply: 100 to 240 VAC (13 W)

Environmental
Operating Temperature: 32 to 72°F / 0 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C
Operating Humidity: 10 to 90% (Non-Condensing)

General
Dimensions: 5.07 x 5.06 x 0.94" / 128.78 x 128.52 x 23.88 mm
Weight: 0.6 lb / 272.15 g

Packaging Info
Package Weight: 1.795 lb/814 g
Box Dimensions: 10.2 x 5.7 x 3.8"/26 x 15 x 10 cm
