2110 IP Presentation Converter

Name: 2110 IP Presentation Converter
Brand: Blackmagic
SKU: 2110 IP Presentation Converter
Price: 1765149 NGN
Availability: InStock

Blackmagic

EAN: 9338716009040

IP Converter with 3-Pin XLR Mic/Line In/Out, PoE over 10G Ethernet

go to the technical sheet

₦ 1,765,149.00

₦ 1,641,999.00 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

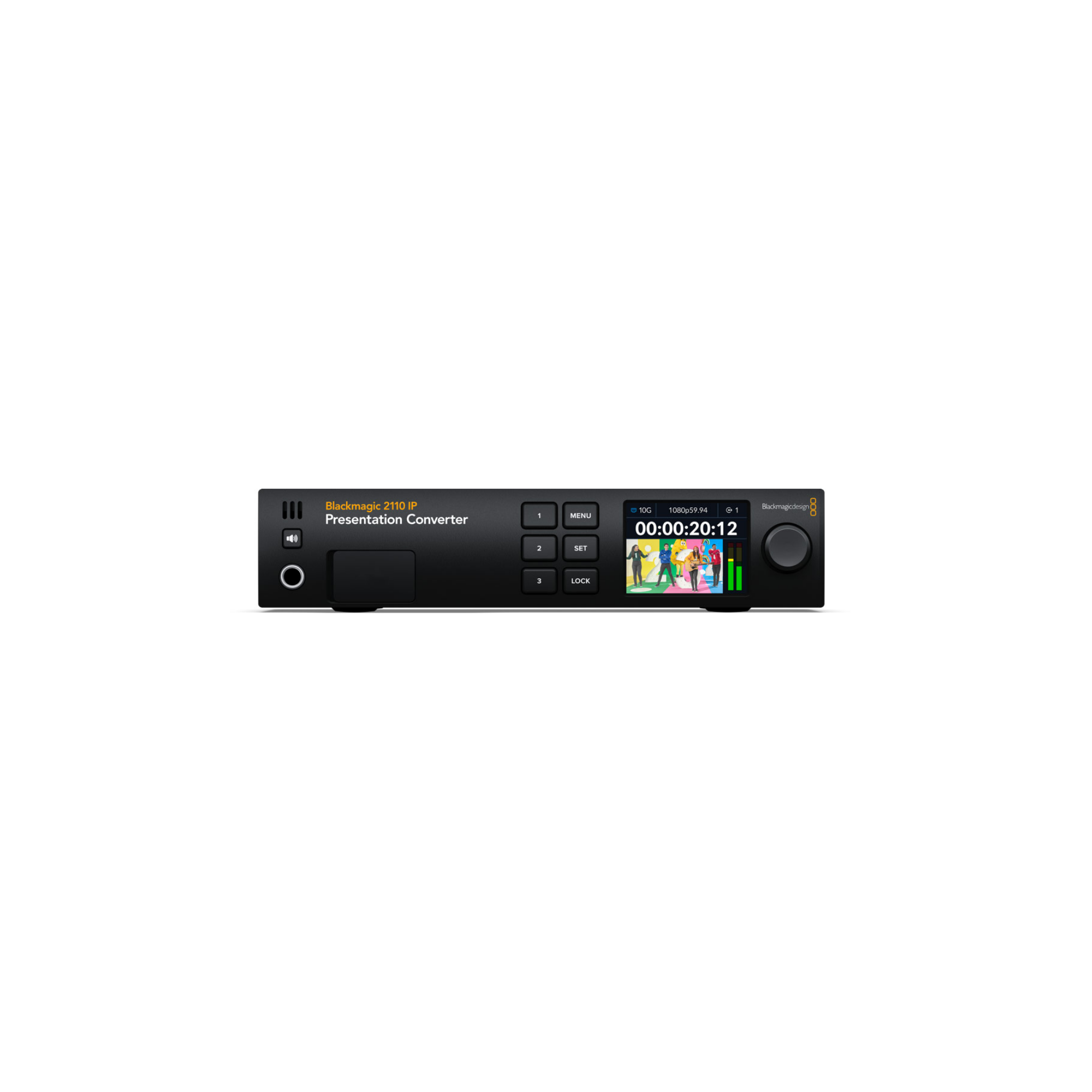

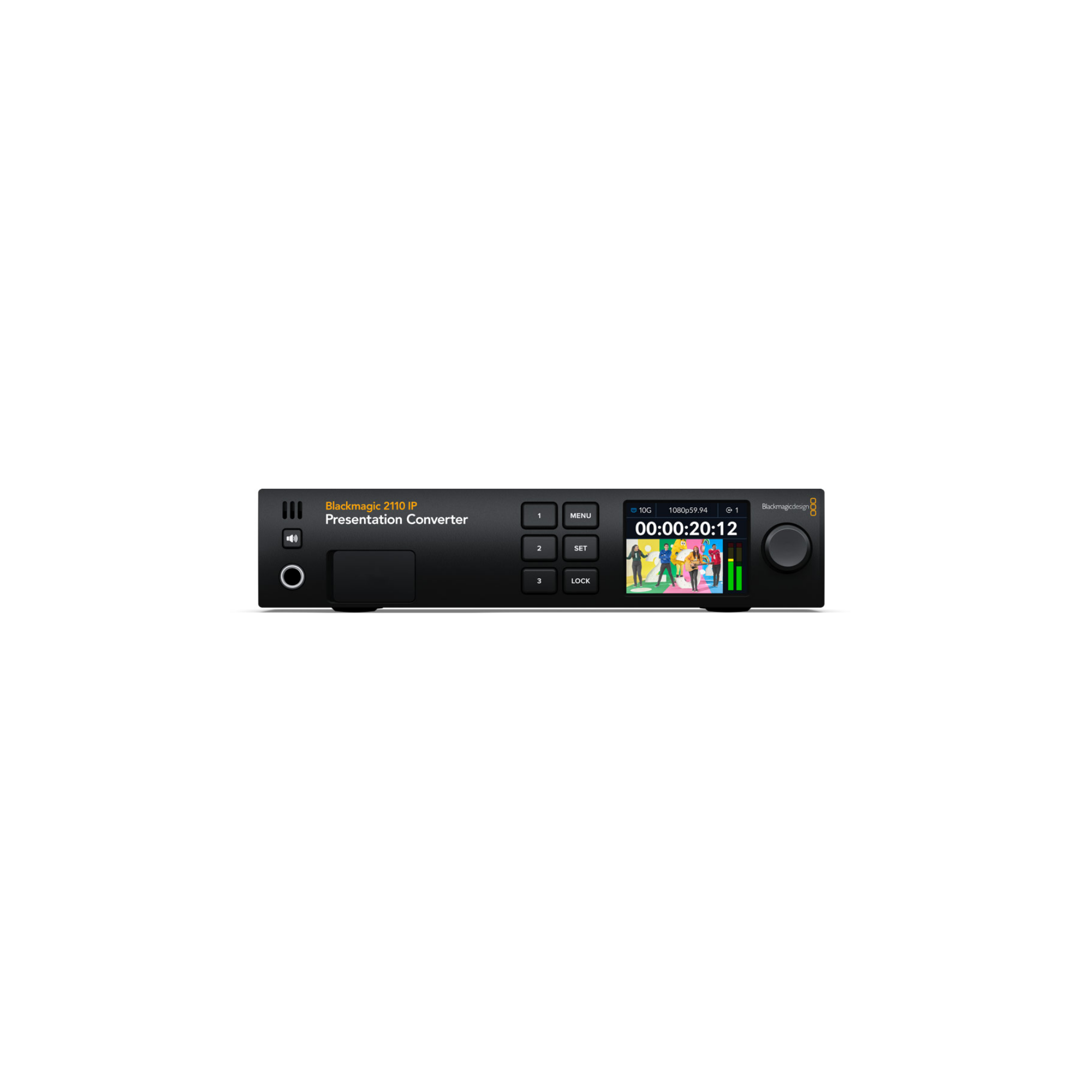

Blackmagic 2110 IP Presentation Converter with 3-pin XLR mic/line in/out, PoE over 10G Ethernet

Blackmagic 2110 IP Presentation Converter is designed for speaker podiums with connections for laptops, projectors and microphones all in the one converter.
Computers can connect via USB-C for both video and power and there is an HDMI output for projectors that can be switched to the video input or the 2110 IP return feed.
For audio, there are XLR microphone inputs and an XLR audio out for PA speakers.
The RJ-45 10G Ethernet video connection can power the whole converter, even when charging a USB computer!

The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

° Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.

° Uses Simple 10G Ethernet for Low Cost
Blackmagic 2110 IP Converters are available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables.
Using simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost.
The cables are simple and Ethernet switches for 10G Ethernet are very common.
In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras.
There are also models for optical fiber Ethernet.
Optical fiber at 10G speed is much lower cost than 25G or 40G Ethernet. You can even use 3G, 6G or 12G-SDI modules!

Connections
PC Video Inputs: 1 x front USB-C plus 1 x rear USB-C with 45W host charging capability.
HDMI 2.0 Video Inputs: 1
HDMI 2.0 Video Outputs: 1
SDI Video Outputs: 1 (Automatically standards converted to destination)
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs: 1 x 10G Ethernet
SMPTE ST-2110 IP Video Outputs: 1 x 10G Ethernet
Analog Audio Inputs: 2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power.
Analog Audio Outputs:
2x channels of professional balanced analog audio with 3-pin XLR connectors.
1 x 6.35 mm headphone jack.
SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/UHD/4K.
HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
HDMI Audio Outputs: 8 Channels embedded in SD/HD/UHD/4K.
USB: 2 x USB-C 3.1 Gen 1 (up to 5 Gb/s).
Ethernet: 1 x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.

SDI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, SMPTE ST2108-1, SMPTE ST2110-20, SMPTE ST2110-21, SMPTE ST2110-30, SMPTE ST2110-40.
SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
Multiple Rate Support: SDI video connections are switchable between SD/HD/2K/UHD and 4K.
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
SDI Video Sampling: 4:2:2, 4:4:4
SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes.
8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
SDI Color Space: REC 601, REC 709 and REC 2020
HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.

HDMI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
HDMI Color Precision: 8, 10 and 12-bit
HDMI Color Space: REC 601, REC 709 and REC 2020
HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics.
HDR Configuration: HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support: HDMI video connections are switchable between SD/HD/UHD and 4K.
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

IP Video Compliance
SMPTE 2110-20 (Uncompressed Video): IGMP v2
SMPTE 2110-21 (Traffic Shaping):
- Sender: Narrow
- Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM): Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Precision Time Protocol:
- IEEE 1588-2008 (PTP v2)
- ST 2059-1
- ST 2059-2
NMOS IS-04 Discovery and Registration:
- v1.3.2
- Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver capabilities

Control
Built in Control Panel: 6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.

Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.

Power Requirements
Power Supply: 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.

Environmental Specifications
Operating Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
