2110 IP Converter 3x3G

Blackmagic 2110 IP Converter 3x3G converts three 3G-SDI devices to 2110 IP video systems

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems.
That's because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems.

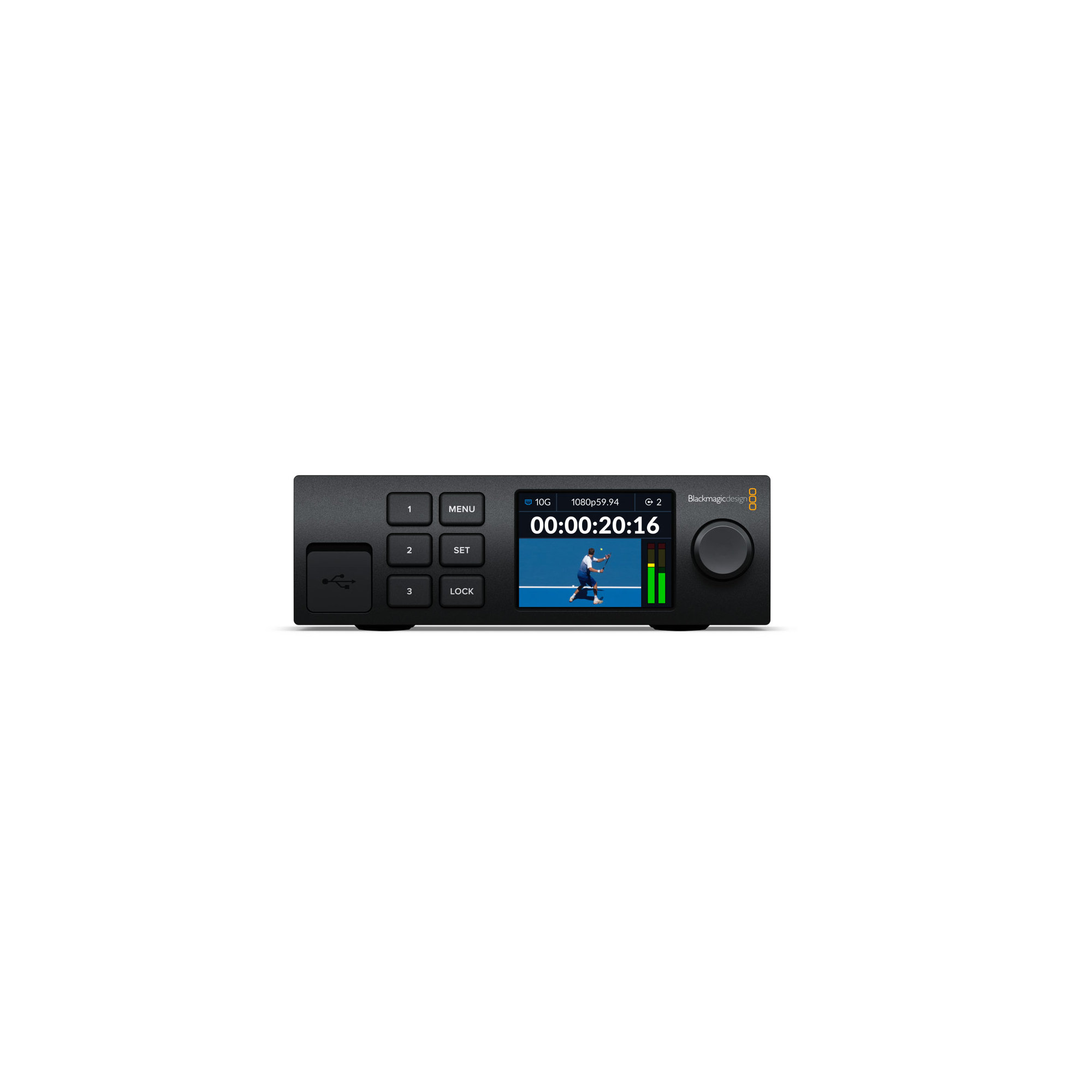

There's also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

° Rack Mount for Installation into Broadcast Systems
The Blackmagic 2110 IP Converter 3x3G has been designed to integrate any 3G-SDI equipment into 2110 IP broadcast systems.
Its rack mount design means it can be installed in equipment racks right next to the equipment you're converting.
The Universal Rack Shelf lets you install up to 3 Blackmagic 2110 IP Converter 3x3G units side by side for a total of 9 separate input and output channels in a single rack unit.
They can also be remote managed over Ethernet.
With conversion to and from 3G-SDI in the same unit, it can handle a wide range of equipment.
Simply add a Blackmagic 2110 IP Converter 3x3G to live production switchers, disk recorders, playback servers, streaming processors and more.

° Compact Rack Mountable Design
Unlike using a mess of mini converters, Blackmagic 2110 IP Converter 3x3G is rack mountable and includes a front panel with LCD, so you can walk up and change settings at any time! The front panel LCD also has the benefit of allowing live video monitoring of all input and output channels.
Plus, the LCD includes network diagnostics tools to assist in diagnosing problems in complex 2110 IP broadcast systems.
The LCD also includes routing menus for selecting the IP source for each of the 3G-SDI outputs.
It's just like a mini router! With active fan based cooling, the converters will stay cool, even when rack mounted side by side.
For redundancy, you also get both AC and PoE+ Ethernet power!

° Connect to any 3G-SDI Equipment
The Blackmagic 2110 IP Converter includes 3 x 3G-SDI outputs and 3 x 3G-SDI inputs with loop outputs.
Plus the 10G Ethernet connection supports 3 input and 3 output channels all at the same time.
The channels are independent so they can be completely different video standards! Each 3G-SDI input features re-sync, so you can connect any SDI source and the input video will be re-timed to the 2110 PTP clock automatically.
Plus there's a reference output so you can lock external SDI equipment to the 2110 PTP clock if you don't want the re-sync to be used.
The Blackmagic 2110 IP Converter eliminates annoying power bricks as it features 100-240V AC power as well as PoE+ on the 10G Ethernet port.

° 10G Ethernet for Multiple SMPTE 2110 IP Channels
Blackmagic 2110 IP Converter conforms to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP Converter supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP Converter supports multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.

° Supports Remote Administration for Settings and Updates
When you have a lot of equipment installed throughout complex broadcast systems, remote administration of the equipment is vital for diagnosing problems, changing settings and upgrading software.
The Blackmagic Converter Utility can be downloaded free of charge so you can update the converter software and change settings.
Plus it's available on both Mac and Windows.
The software can be connected directly to the USB port on the front panel, or for remote administration you can connect via the Ethernet connection and your IP network.
This means in large facilities you can update all the converter software from a single computer. That's great when the converters are located offsite!
