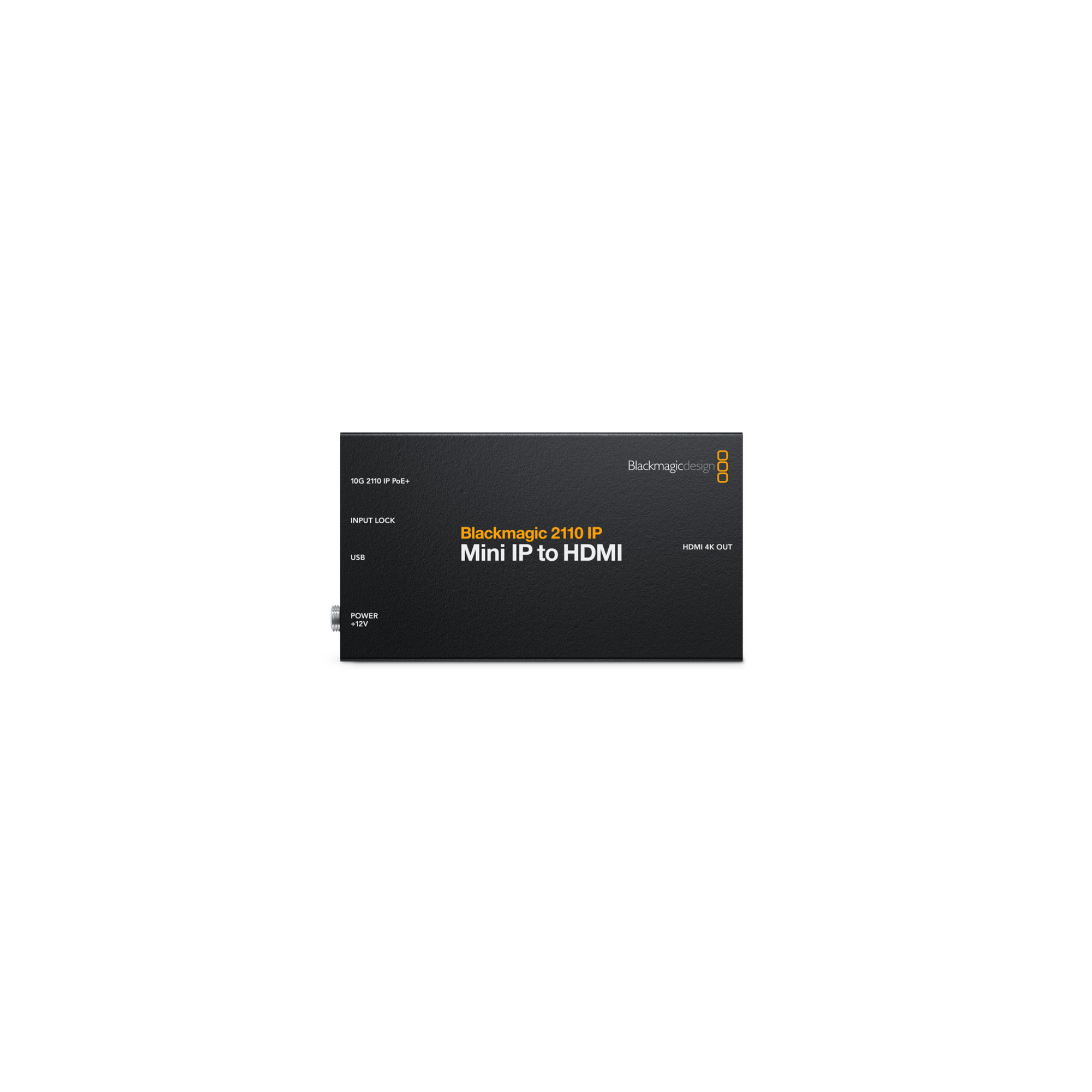

2110 IP Mini IP to HDMI

Blackmagic 2110 IP Mini IP to HDMI video/audio converter, supports HD and Ultra HD standards up to 2160p60

This model is designed for connecting a large screen television or computer monitor into SMPTE-2110 IP systems.
It's tiny design means you can mount it behind the display!
It works in all SD, HD and Ultra HD video standards up to 2160p60. So it's future proof!
It has a standard 10G RJ-45 Ethernet connection, so you can use regular CAT-6 Ethernet cables.
The converter can be powered via Ethernet (PoE), so you don't even need to connect the power!

The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

° Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.

° Uses Simple 10G Ethernet for Low Cost
Blackmagic 2110 IP Converters are available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables.
Using simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost.
The cables are simple and Ethernet switches for 10G Ethernet are very common.
In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras.
There are also models for optical fiber Ethernet.
Optical fiber at 10G speed is much lower cost than 25G or 40G Ethernet. You can even use 3G, 6G or 12G-SDI modules!
