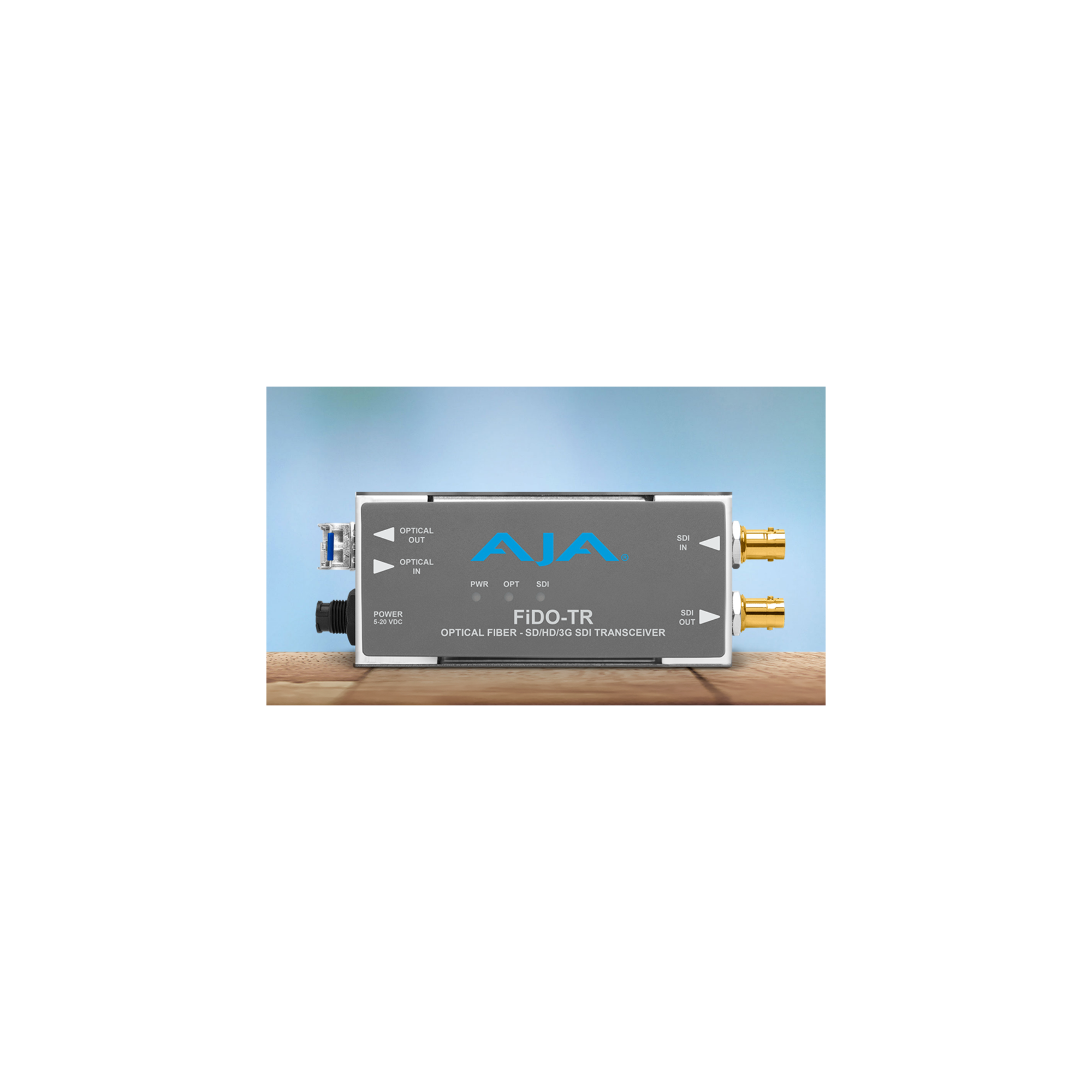

FiDO-TR-R0

Video Formats
100 Mbps - 3 Gbps, format agnostic

Video Input Digital
1-Channel independent 3G-SDI, SMPTE-259/292/424
1-Channel Single Mode LC Fiber connector, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Sensitivity: -18dBm (min)
Optical Power: -7dBm (min), -2dBm (max)
Overload Power: -3dBm (min)
Extinction Ratio: 7.5dB (Typ)

Video Output Digital
1-Channel independent 3G-SDI, SMPTE-259/292/424
1-Channel Single Mode LC Fiber connector, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Sensitivity: -18dBm (min)
Optical Power: -7dBm (min), -2dBm (max)
Extinction Ratio: 7.5dB (Typ)

Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked

Power
3 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment
Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

Size (w x d x h)
4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

1x FiDO-TR-R0
1x Universal Power Supply DWP-U-R1
