BarnColor 3G SDI - Blue

Name: BarnColor 3G SDI - Blue
Brand: Africa Broadcast Store Ltd
SKU: BarnColor 3G SDI - Blue
Price: 4850169 NGN
Availability: OutOfStock

BarnColor 4x3G SDI, color Blue (Power cable not included)

go to the technical sheet

₦ 4,850,169.00

₦ 4,511,784.75 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

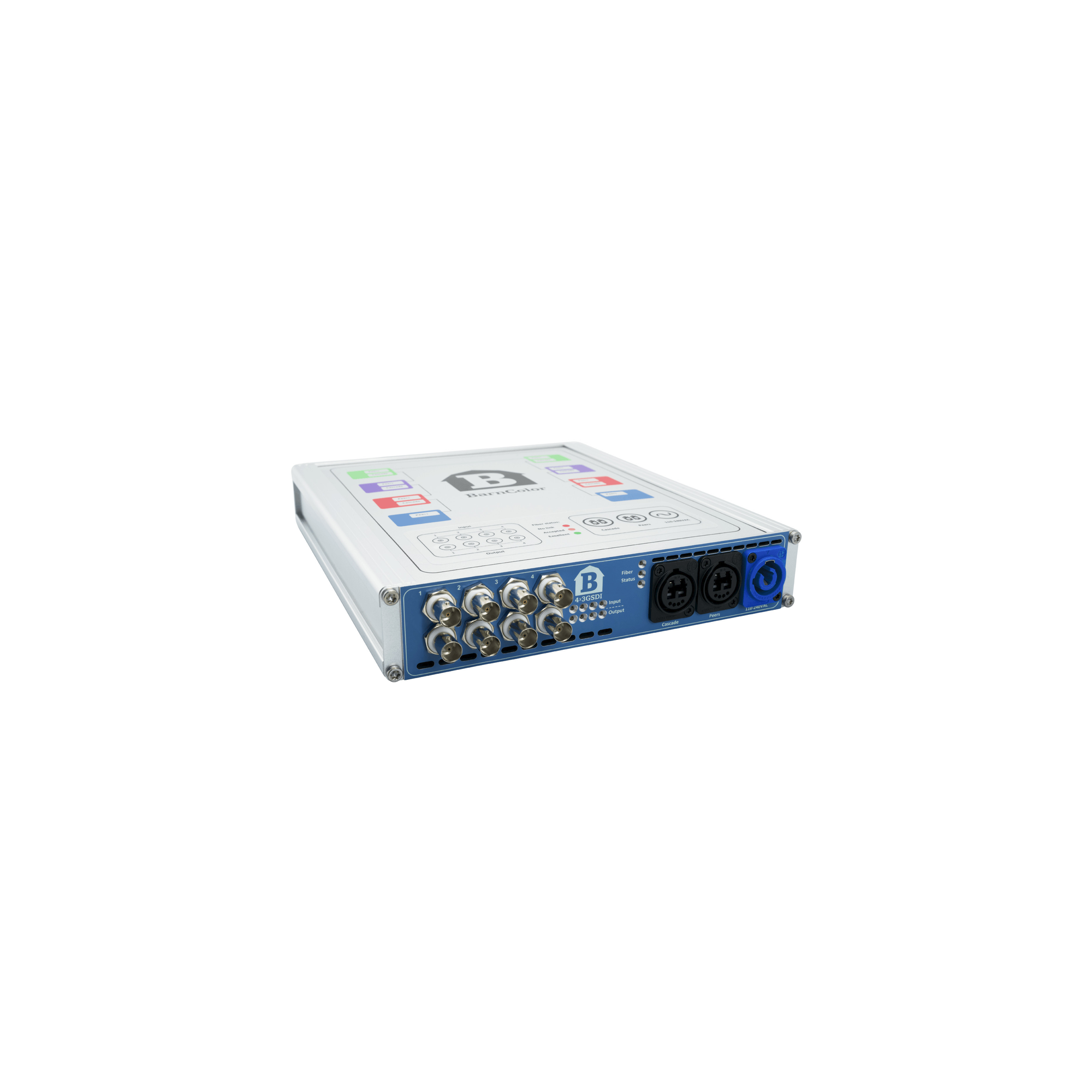

Barnfind BarnColor 4x3G SDI, color Blue (Power cable not included)

Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable.
BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns).
Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors can be daisy chained.
This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.
Can be combined with any models in different colors.

BNC-Ports:
- SMPTE 259M, 292M, 372M, 424M, DVB-ASI
- Multirate reclocking of outputs 270Mbps - 3Gbps
Fiber port:
- Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
- SMPTE 297M
Power plug:
- Neutrik powerCON or TRUE1
- 100-240VAC, 15Watt
Physical size:
- 223mm x 277mm x 44mm (8.8" x 10.9" x 1.7")
- 1.4 kg
