FiDO-T-R0

Name: FiDO-T-R0
Brand: AJA
SKU: FiDO-T-R0
Price: 1162074 NGN
Availability: OutOfStock

AJA

Aja 1-Channel 3G-SDI to Single-Mode LC Fiber Transmitter

go to the technical sheet

₦ 1,162,074.00

₦ 1,080,999.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

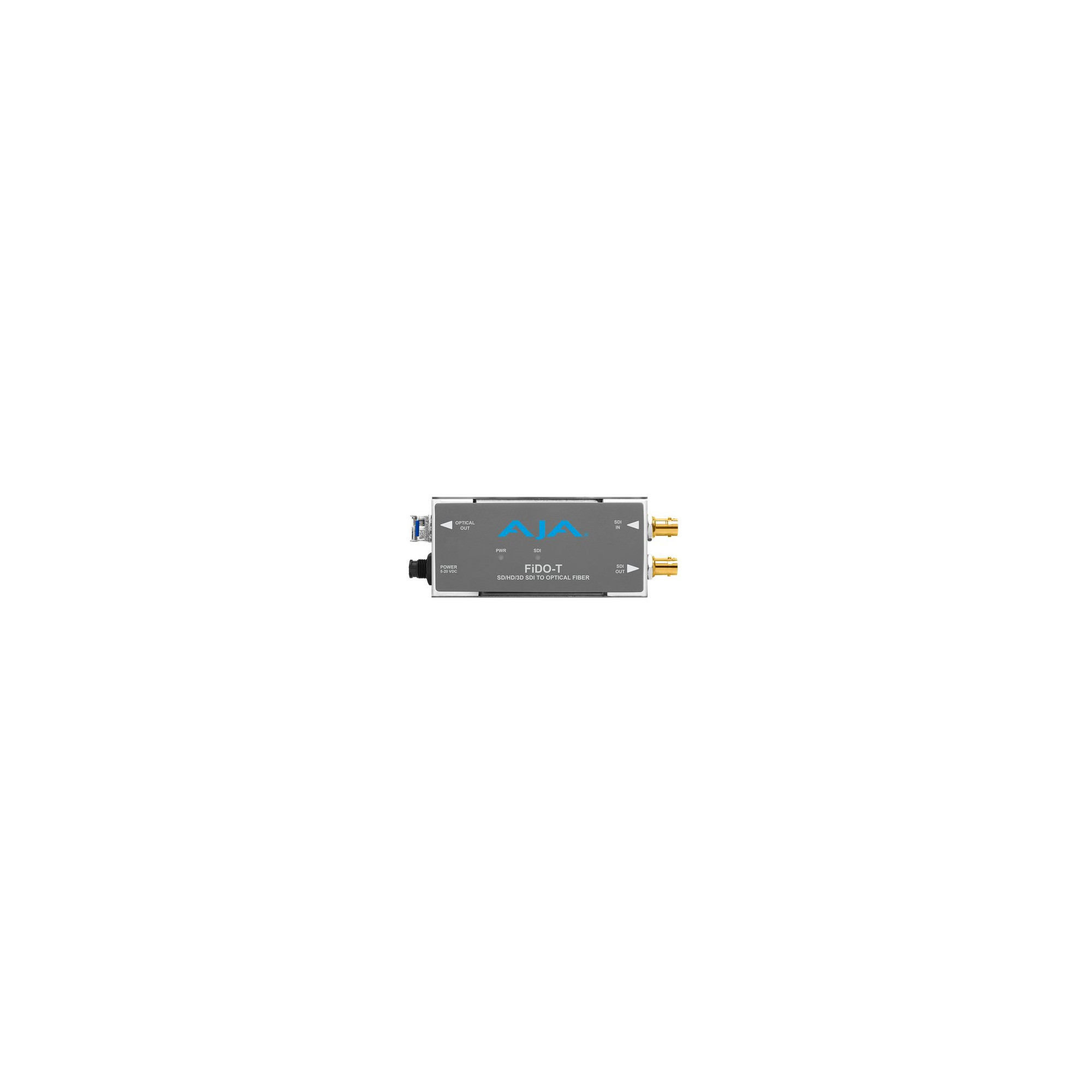

AJA FiDO-T- Single-channel SD/HD/3G SDI to Optical Fiber with looping SD/HD/3G SDI output.

FiDO-T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

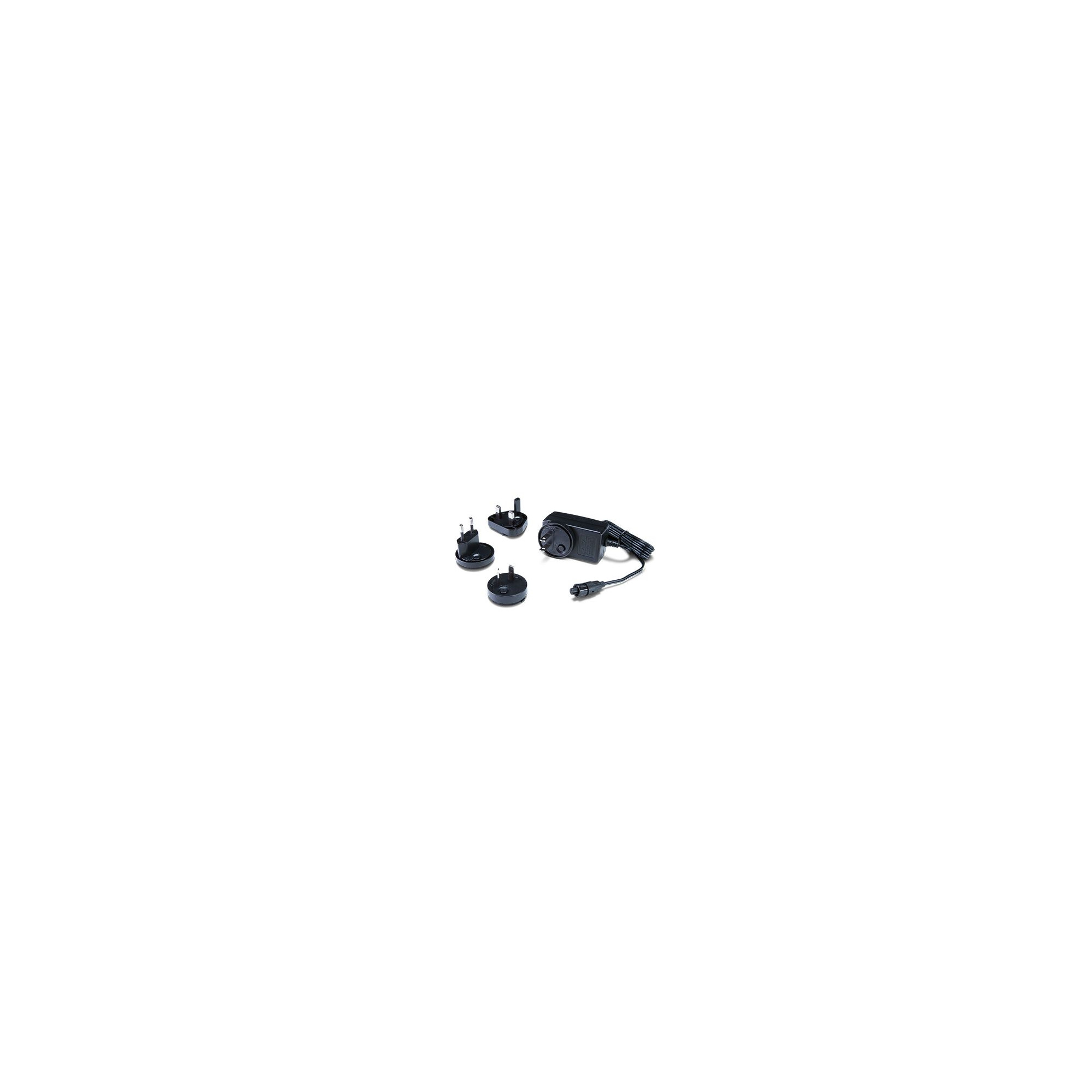

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Features:

1-Channel 3G-SDI to Single Mode LC Fiber Transmitter
Simplex connection (LC connector)
3G/HD/SD-SDI input
Looping SDI output
Uses 5-20VDC power (DWP-U-R1 universal power supply included)
Five year warranty

Video Formats:

150 Mbps - 3 Gbps, format agnostic

Video Input Digital:

1-channel independent 3G-SDI with SDI Loop out, SMPTE-259/292/424

Video Output Digital:

1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-channel Single Mode LC Fiber Output, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)

Reclocking:

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked

Size (w x d x h):

4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

Weight:

0.5 lb (0.3 kg)

Power:

2 watts max
Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment:

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
