Livetrak L-20R

Name: Livetrak L-20R
Brand: Zoom
SKU: Livetrak L-20R
Price: 1422439 NGN
Availability: OutOfStock

Zoom

EAN: 4515260020935

20-Input Digital Mixer & Multitrack Recorder- Rack 3U

go to the technical sheet

₦ 1,422,439.00

₦ 1,323,199.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

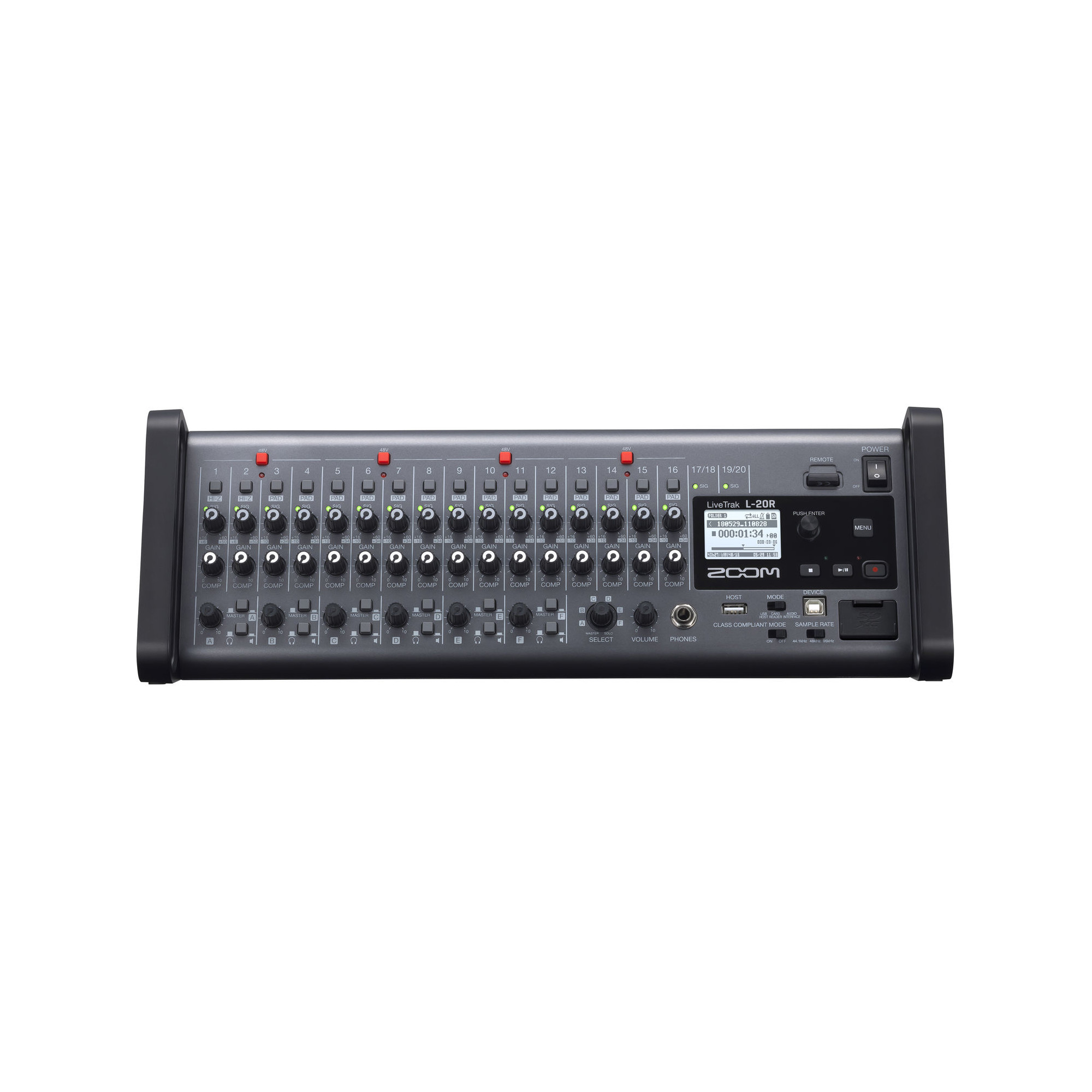

The highly flexible Zoom LiveTrak L-20R is a 20-input digital mixer and multi-track recorder well suited for live performances, studio recording, band rehearsals, podcasts, and more. Eschewing the faders of the similar L-20 without sacrificing much else, the L-20R is both portable and rackmountable, even supplying rack ears for mounting the mixer in your rack case.

The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, a one-knob compressor knob, and +48V phantom power. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. Two stereo inputs offer dual 1/4" and RCA inputs. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor.

The LiveTrak L-20R features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. Furthermore, by connecting remotely over iOS devices, musicians can adjust their own monitor mixes on stage.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/96 kHz. Files can easily be copied to a computer and used in a DAW. The L-20R can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. The Zoom LiveTrak L-20R ships with a power cord a BTA-1 Bluetooth cable to connect your master iPad (other iPads connect to the master via WiFi).

Zoom LiveTrak L-20R from Zoom on Vimeo.

Audio Recorders Wired microphones Microphones - Accessories Audio Equipments Cards and Storage media Sound Diffusion

Zoom

CBL-20

₦ 195,918.00 VAT included

Available 1 unit in 4 Days

Zoom

SGH-6

₦ 230,371.00 VAT included

Available 2 unit in 4 Days

Zoom

ZDM-1 Podcast Mic Pack

₦ 225,749.00 VAT included

Available 2 unit in 4 Days

Zoom

BTA-1

₦ 90,783.00 VAT included

Available 2 unit in 4 Days

Zoom

AD-19E

₦ 64,606.00 VAT included

Available 1 unit in 4 Days

Zoom

RKL-12

₦ 233,973.00 VAT included

Available 1 unit in 4 Days

Rode

NTG-2

₦ 487,458.00 VAT included

Available 3 unit in 4 Days

Audiotechnica

AT-897

₦ 520,138.00 VAT included

Available in 11 days

Rode

REPORTER

₦ 378,345.00 VAT included

Available 1 unit in 4 Days

Sennheiser

E845S

₦ 216,181.00 VAT included

Available in 11 days

Shure

SM58-LCE

₦ 274,016.00 VAT included

Available in 14 days

Sennheiser

E945

₦ 470,795.00 VAT included

Available 1 unit in 4 Days

Sennheiser

E865

₦ 565,664.00 VAT included

Available in 11 days

Rode

NTG-3 Black

₦ 1,390,135.00 VAT included

Available in 14 days

Rode

NTG-8

₦ 2,093,615.00 VAT included

Available 1 unit in 4 Days

Rode

NTG-4

₦ 557,763.00 VAT included

Available 1 unit in 4 Days

Shure

SM58SE

₦ 302,558.00 VAT included

Available in 14 days

Neumann

KM185

₦ 3,161,251.00 VAT included

Available in 14 days

Rode

Procaster

₦ 437,631.00 VAT included

Available in 14 days

Rode

NTG-1

₦ 466,925.00 VAT included

Available 1 unit in 4 Days

Audiotechnica

AT875R

₦ 335,990.00 VAT included

Available 3 unit in 4 Days

Sennheiser

E845

₦ 215,268.00 VAT included

Available 1 unit in 4 Days

Rode

NTG-3

₦ 1,390,135.00 VAT included

Available 3 unit in 4 Days

Sony

ECM-674

₦ 1,088,221.00 VAT included

Available 1 unit in 4 Days

Rode

NTG-4 PLUS

₦ 597,645.00 VAT included

Available in 14 days

Rode

Boompole

₦ 274,876.00 VAT included

Available 3 unit in 4 Days

Rode

Boompole Mini

₦ 231,446.00 VAT included

Available 2 unit in 4 Days

Audiotechnica

AT8202

₦ 124,161.00 VAT included

Available in 14 days

Sony

SF-64TG

₦ 189,521.00 VAT included

Available 4 unit in 4 Days

Sony

SF-G1TG

₦ 337,979.00 VAT included

Available 17 unit in 4 Days

Sennheiser

IE 4

₦ 244,508.00 VAT included

Available 1 unit in 4 Days

Zoom ZL20R Specs
Number of Inputs Mono (Mic/Line): 16 x Combo XLR-1/4"
Stereo (Line): 4 x 1/4" TS, 4 x RCA (2 x Stereo Pairs)
Control: 1 x 1/4"
Number of Outputs Master Out: 2 x XLR
Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/4" / 6.35 mm
Input Gain Pad Off: +16 to +60 dB
Pad On: -10 to +34 dB
Hi-Z ON: +6 to +50 dB
Input Impedance XLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z On)
Maximum Input Levels Mono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +14 dBu
Phantom Power 48 V
Maximum Output Levels Master Out: +14.5 dBu
Monitor A-F (TRS): +14.5 dBu
Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms
Output Impedances 100 Ohms
Buses Master: 1
Monitor: 6
Send EFX: 2
Channel Control Channel Strip
Comp: Yes, Channels 1 to 16
Low Cut: 40 to 600 Hz, 12 dB/oct
EQ
High: 10 kHz, ±15 dB, Shelving
Mid: 100 Hz to 8 kHz, ±15 dB, Peaking
Low: 100 Hz, ±15 dB, Shelving
Level Meters 12-Segment
Effects 20 Types
Recorder Maximum Simultaneous Recording Tracks:
22 at 44.1/48/96 kHz
Maximum Simultaneous Playback Tracks: 20
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-Bit, Mono/Stereo
Recording Media:
16 MB to 2 GB SD Cards
4 to 32 GB SDHC Cards
64 to 512 GB SDXC Cards
Audio Interface 44.1 / 48 kHz Recording: 22 Channels
Playback: 4 Channels
Bit Depth: 24-Bit
Interface: USB 2.0
System Requirements (Windows) Windows 7 SP1 or Later / 8.1 / 10 (32-/64-Bit)
Intel Core i3 or Later
USB 3.0/USB 2.0
System Requirements (Mac) Mac OS X 10.11 and Later
Intel Core i3 or Faster
USB: USB 3.0/USB 2.0
System Requirements for Mobile iOS 9, 10, and 11
Sampling Frequencies 44.1 / 48 / 96 kHz
Frequency Characteristics 44.1 kHz: 20 Hz to 20 kHz (±1.0 dB)
96 kHz: 20 Hz to 40 kHz (±3.0 dB)
Equivalent Input Noise -128 dB (IHF-A) at +60 dB/150 Ohms
Display LCD with Backlight (128×64 Resolution)
Power Supply AD-19 AC Adapter: 12 VDC / 2 A
