DL16S

Name: DL16S
Brand: Mackie
SKU: DL16S
Price: 1454743 NGN
Availability: OutOfStock

Mackie

EAN: 0066396105431

16 In/8 Out Stage Box with 16 MIDAS Mic Preampli, ULTRANET and ADAT Interfaces

go to the technical sheet

₦ 1,454,743.00

₦ 1,353,249.00 VAT excl.

Available in 14 days

Manuale: Download

Not sure if this is the right product for you? Talk to a consultant

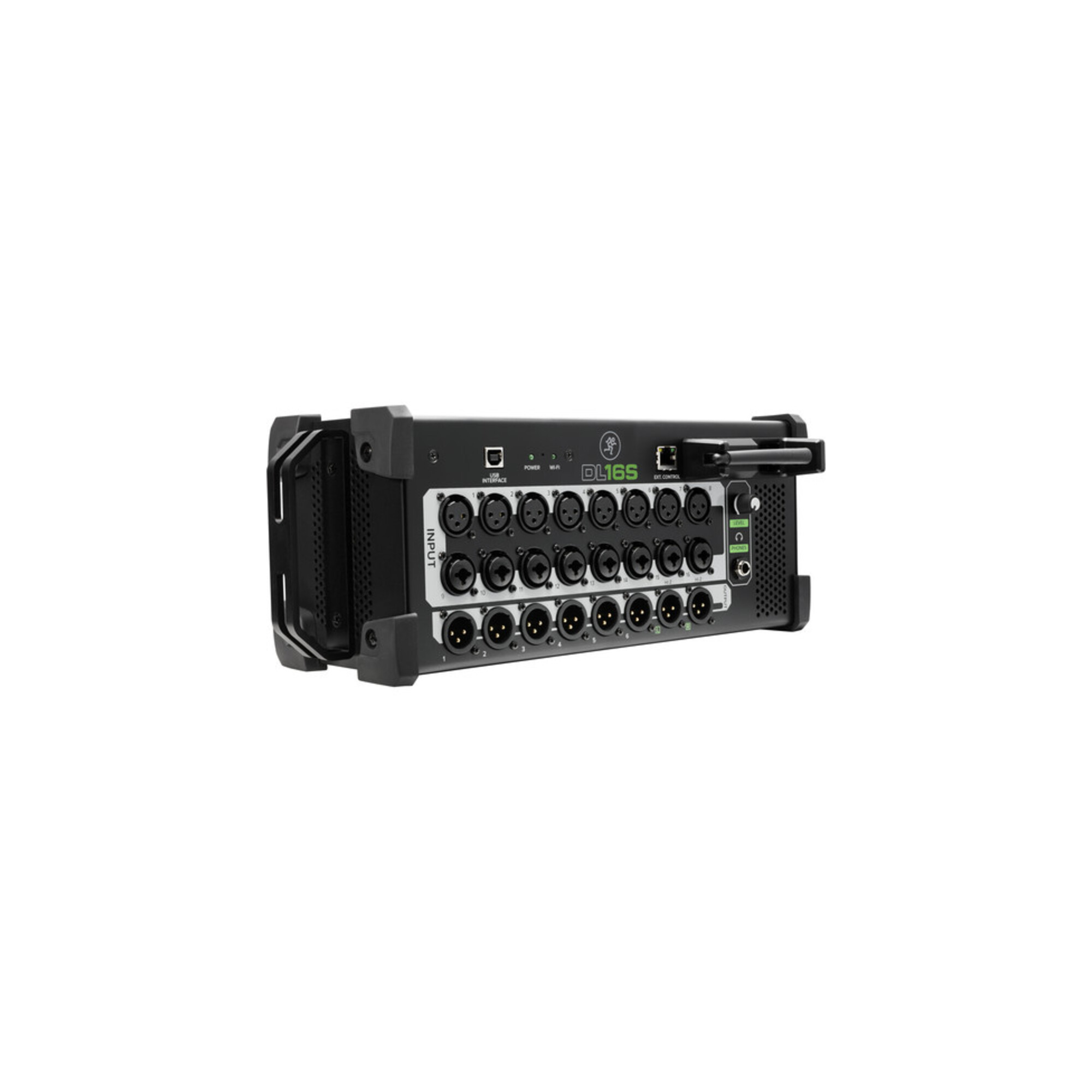

The Mackie DL16S is a 16-channel wireless digital live sound mixer with integrated Wi-Fi, well suited for musicians, engineers, clubs, bars, coffee shops, and more.
The mixer features 16 Onyx+ recallable preamps available on 8 XLR inputs and 8 combo XLR-1/4" inputs, while 8 fully-assignable outputs are available on XLR connectors, plus there is a dedicated 1/4" headphone output.

The DL16S offers sophisticated signal processing with a 4-band PEQ, HPF, gate, compression, and an RTA/spectrograph for each of the 16 input channels.
Each of the 13 output busses offer a 4-band PEQ, HPF/LPF, a 31-band GEQ, compressor/limiter, alignment delay, and RTA/spectrograph. Additionally, there are six VCAs, six mute groups, and four stereo FX processors with professional-quality reverb, delay, chorus, flange, and more.

The steel construction and large rubber corners ensure the DL16S can handle the rigors of on-the-road wear and tear.
The integrated handle provides an easy carry option for quick deployment, while the built-in Wi-Fi antenna allows you to connect to the DL16's network for seamless wireless control. For greater range, an Ethernet connector allows you to connect directly to a wireless router or network switch.

The Mackie DL16S utilizes the Master Fader control app, which operates on an iOS or Android device, as well as Mac and Windows computers (with the soon-to-be released Master Fader 5.1).
Navigate quickly with the overview and view groups, and quickly set up channels with factory and user presets, plus recall Onyx+ mic preamp settings.
Up to 20 devices can be connected, allowing musicians to create their own headphone mix, while the Access Limiting setting prevent unwanted adjustments for the FOH engineer.

The integrated 16x16 USB 2.0 audio interface allows you to record the show for a later mixdown or perform a virtual sound check, plus you can play intermission music, backing tracks, and more directly into a dedicated stereo return channel.
With a low cost and a high channel and feature count, the Mackie DL16S makes for a budget-friendly yet professional studio recording environment.

Complete Wireless Control, Built-In Wi-Fi
16 Mic Inputs with Onyx+ Recallable Pres
8 Fully Assignable XLR Outputs
4-Band PEQ, HPF & Dynamics on Each Input
13 Output Busses w/ EQ & Alignment Delay
31-Band Graphic EQ on Output Busses
6 x VCAs & 6 x Mute Groups
4 FX Processors with Reverbs & Delays
16x16 USB 2.0 Interface

Sound Diffusion

Mackie

DL16S Carry Bag

₦ 231,393.00 VAT included

Available in 14 days

Download

Manuale

Download (3.06MB)

Mixer Capacity
Number of Analog Input Channels: 16
Number of Mic Preamps: 16
Number of Analog Output Channels: 8
Max I/O Capacity: 16 x Input / 8 x Output

Mix Routing
6 Stereo Aux Sends
6 Subgroup Groups
Groups 6 x VCA Group
6 x Mute Group
Fader: None

Signal Processing
Gain/Trim Range
Mic: 0 dB to 60 dB (in 3 dB steps)
Line: -20 dB to 40 dB (in 3 dB steps)
Dynamics Processing
Input Channels: Compressor, Gate
Bus, Master: Compressor, Limiter

Gain/Trim Range
Mic: 0 dB to 60 dB (in 3 dB increments)
Line: -20 dB to 40 dB (in 3 dB increments)
Dynamics Processing Input Channels: Compressor, Gate
Bus, Master: Compressor, Limiter

EQ - Equalization
Input Channels: 4-band Parametric
Output Bus: 4-band Parametric
Graphic EQ: 31 bands
Filters: High-Pass

Outputs
High-Pass
Low-Pass

Built-in Effects
Stereo Reverb
Stereo Delay
Stereo Chorus
Stereo Flanger
Audio Delay: Yes

Digital Audio
Sample Rate: 48 kHz
AES3 Output: 48 kHz
Multitrack Recording: 48 kHz
Audio Streaming: 48 kHz

Bit Depth
AD/DA Conversion: 24-bit
AES3 Output: 24-Bit
Recording: 16 / 24-Bit
Audio Streaming: 16 / 24-Bit
Latency: 1.5 ms (analog input to analog output)

Performance
Reference dBFS Level: +22 dBu = 0 dBFS
Frequency Response: 20 Hz to 20 kHz -1 dB

Maximum Input Level
XLR Input: +21 dBu
1/4" Input: +30 dBu

Output Level
Headphone Output: +18 dBu (2901653168)
Output: +21 dBu (2901653168)

Analog Dynamic Range
Input to Output: 109 dBA at unity gain
Output: 111 dBA

I/O Impedance
AES3 Output: 110 Ohm
XLR Mic Input: 3 Kilohm
1/4" Input: 30 Kilohm
XLR Output: 600 Ohm
Monitor Output: 240 Ohm (balanced) - 120 Ohm (unbalanced)

Crosstalk
Adjacent Inputs:
< -105 dB at 1 kHz (minimum gain)
< -80 dB at 1 kHz (maximum gain)
Adjacent Outputs:
< -100 dB at 1 kHz
EIN: -127 dBu (2901653041)
Noise Floor: -90 dBu A-weighted
SNR: 92 dBA at unity gain (reference +4 dBu)

THD
Mic input to main output: < 0.005% (-1 dBFS)

Connectivity
Analog inputs
8 x XLR balanced input
8 x XLR-1/4" TRS combo balanced inputs
Analog outputs
8 x XLR balanced output
1 x 1/4" TRS headphone output
Phantom power: +48V
Digital I/O
1 x RJ45 (Wi-Fi router, 100 Mb/s)
1 x AES3 XLR output
MIDI I/O: None
USB: 1 x USB-B 2.0 (host connection)
Wireless connectivity: None
External display connection: None
Recording
Maximum multi-track recording: 16 tracks
Media support: HDD
File format supported: WAV
File system support
Hard disk: FAT32

Compatibility
OS Compatibility
Windows 7
Windows 8
macOS 10.8.4
macOS 10.9
iOS 7.1 or later

Mobile Device Compatibility
iPad 3rd generation, 4th generation, 2
iPad Mini with Retina
iPad Air
iPhone

Power
AC Input Power: 100 to 240 VAC, 50/60 Hz
AC Power I/O: IEC
Power Consumption: 100 W (maximum)

Physical Dimensions
Rack-mountable: Yes
Rack-mount Dimensions: 3 RU (with included hardware)
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions: 14.1 x 5.6 x 5.8" / 35.8 x 14.2 x 14.7 cm
Weight: 6.2 lb / 2.8 kg

Packaging Information
Package Weight: 10.65 lb / 4.83 kg
Box Dimensions: 17.3 x 10 x 10" / 44 x 25 x 25 cm
