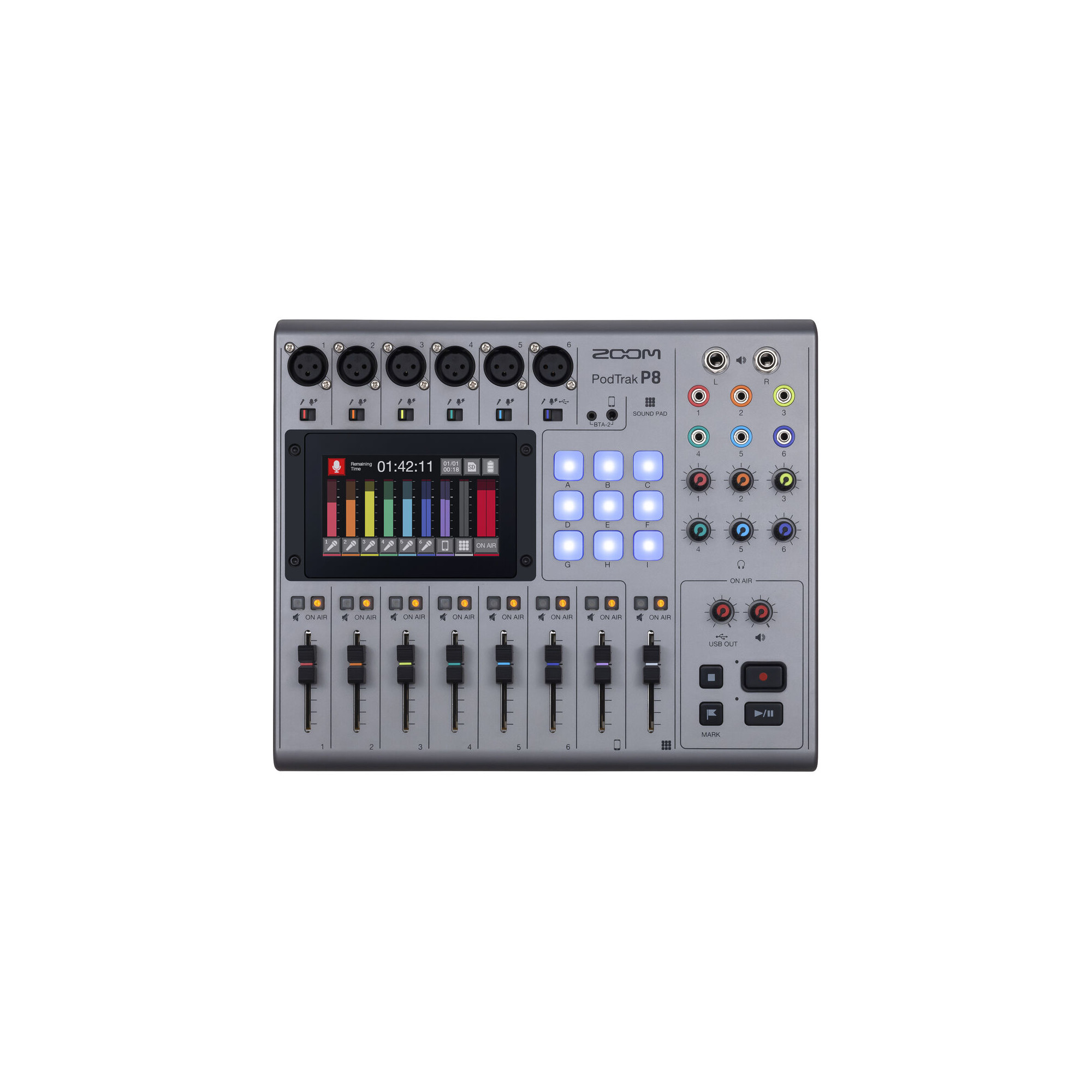

PodTrak P8
Zoom
From the intuitive, tactile controls to the powerful audio processing and editing functions, the PodTrak P8 is well equipped to help you record, stream, and export pristine audio for complex panel podcasts. Dynamic and condenser mics, customizable sound pads, call-ins via your smartphone or computer, and independent headphone outs, the PodTrak P8 can manage everything you need a podcast production station to do.
Extra touches including per-channel tone controls, compression/de-essing, limiters, low-cut filters, and noise reduction—all stellar tools for achieving professional-sounding tracks, an integrated mix-minus function to prevent echo and feedback for remote guests, and multiple powering methods make the PodTrak P8 a truly powerful all-in-one solution for podcasting.
AT-897
REPORTER
E845S
SM58-LCE
E945
E865
NTG-3 Black
NTG-8
NTG-4
SM58SE
KM185
Procaster
NTG-1
AT875R
E845
NTG-3
ECM-674
NTG-4 PLUS
ZDM-1 Podcast Mic Pack
BTA-2
IE 4
Zoom PodTrak P8 Specs
Form Factor Tabletop
Channels of I/O Analog:
8 Inputs / 2 Outputs at 44.1 kHz
Max Sample Rate/Resolution 44.1 kHz / 16-Bit
Number of Mic Preamps 6
Input Level Adjustment 6 x via Touchscreen
Number of Headphone Mixes 1 x Master
5 x Guest
Solo/Mute Mute per Input Channel
Pad None
Sample Pads 9 x Assignable
Display and Indicators 1 x Touchscreen (Menu Navigation, Metering, Multifunction)
8 x LEDs (Mute)
Connectivity
Host Connection 1 x USB Type-C (Class-Compliant USB 2.0)
Analog I/O 6 x XLR 3-Pin Balanced Mic Input
6 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
2 x 1/4" TRS Balanced Monitor Output
1 x 1/8" / 3.5 mm TRRS Unbalanced Aux In/Out
Phantom Power +48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital I/O None
Memory Card Slot 1 x SDXC
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB (at 44.1 kHz)
Gain/Trim Range Mic Inputs:
0 dB to +70 dB
Max Input Level XLR Mic Inputs:
+5 dBu (at 0 dBFS)
1/8" / 3.5 mm Aux Inputs:
+2.5 dBu
Max Output Level Monitor Outputs:
+5.5 dBu
Headphone Output Power 20 mW per Channel into 32 Ohms
Impedance XLR Mic Inputs:
3 Kilohms
1/8" / 3.5 mm Aux Inputs:
3 Kilohms
1/4" Monitor Outputs:
320 Ohms
1/8" / 3.5 mm Headphone Outputs:
27 Ohms
EIN -124 dBu (150-Ohm Source, +70 dB Gain)
Digital Audio
Sample Rates 44.1 kHz
Bit Depths 16-Bit
Compatibility
OS Compatibility macOS
Windows
iOS
Compatible Software (Not Included) Any Core Audio Compliant Software
Included Software None
Required Hardware Available USB 2.0 Port
USB Cable (Not Included)
Power
Power Requirements AC/DC Power Adapter (Included), Battery, or USB Bus Power
AC/DC Power Adapter 5 VDC at 1 A
Power Consumption 5 W
Battery Type 4 x AA
Approximate Battery Life 2 Hours (AA Alkaline, Phantom Off, Recording, with Headphones)
3.5 Hours (AA NiMH, Phantom Off, Recording, with Headphones)
6.5 Hours (AA Lithium, Phantom Off, Recording, with Headphones)
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 11.6 x 9.8 x 2.4" / 29.5 x 24.8 x 6.1 cm
Weight 3.1 lb / 1.4 kg
