1402VLZ4

Name: 1402VLZ4
Brand: Mackie
SKU: 1402VLZ4
Price: 506.06 EUR
Availability: OutOfStock

Mackie

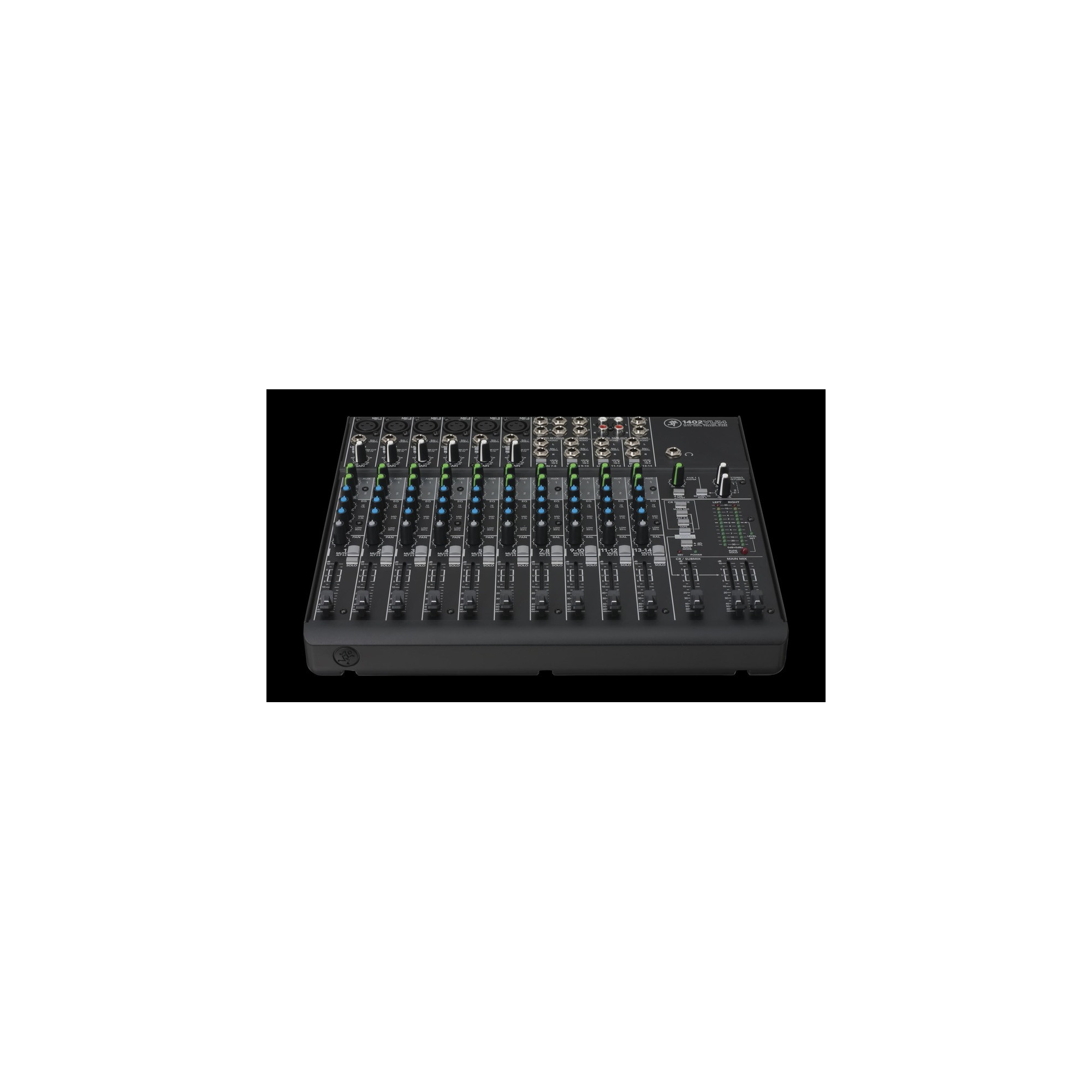

Mackie 1402VLZ4 14-Channel Compact Mixer

go to the technical sheet

€ 506,06

€ 470,75 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back.
The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

The Workhorse Analog Mixer
When you need more channels, more routing, and more tonal control without the size, 1402VLZ4 is a top choice.
With all the pro features and studio-grade sound quality, 1402VLZ4 is ready to rock.

6 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz - 50kHz)
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
14 high-headroom line inputs with +4/-10 operation control
3-band EQ (80Hz, 2.5kHz, 12kHz)
18 dB/oct 75Hz low-cut filter on mic input channels
2 aux sends, level, pan and PFL solo on each channel
60mm long-wearing log-taper faders
2 stereo returns for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary control resist dust and grime
"Built-Like-A-Tank" rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
Rack-mountable design using optional rack ear kit
Multi-voltage power supply for worldwide use

Mixer
Number of Analog Input Channels : 14
Number of Mic Preamps: 6
Analog Output Channels:
1 x Stereo Master Output
1 x Stereo Control Room/Monitor Output
1 x Stereo Bus/Subgroup Output
2 x Aux Send Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Signal Processing
EQ Parameters:
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Built-In Effects: None
Performance
Frequency Response:
Mic Input to Main Output:
20 Hz to 50 kHz +0/-1 dB (Unity Gain)
10 Hz to 100 kHz +0/-3 dB (Unity Gain)
Max Input Level
Mic Input:
+22 dBu
Tape Input:
+16 dBu
Line Input:
+22 dBu
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
2.5 Kilohms
Insert Return:
2.5 Kilohms
Line Input:
= 10 Kilohms
Tape Output:
1.1 Kilohms
Main Output:
120 Ohms
Crosstalk
Master Fader Off:
-100 dBu at 1 kHz (20 Hz to 20 kHz)
Muted:
-90 dBu at 1 kHz (20 Hz to 20 kHz)
Channel Fader Off:
-90 dBu at 1 kHz (20 Hz to 20 kHz)
CMRR: > -70 dB (1 kHz)
EIN: -128.5 dBu at Max Gain (150-Ohm Input)
Noise Floor: -101 dBu (Master Level at -8, Channel Levels at -8)
-91 dBu (Master Level at Unity, Channel Levels at -8, 95 dB SNR, Ref +4 dBu)
-86 dBu (Master Level at Unity, Channel Levels at Unity)
THD:
Mic Input to Insert Send:
< 0.0007% at +35 dB Gain (1 kHz)
Power
AC Input Power: 100 to 120 VAC, 50 / 60 Hz (T 500 mA 250 V)
Power Consumption: 25 W
Physical
Rack Mountable: No
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions: 12.5 x 14 x 3.2" / 317 x 356 x 81 mm
Weight: 9.5 lb / 4.5 kg
Packaging Info
Package Weight: 12.8 lb/ 5.81 kg
Box Dimensions: 16.1 x 15.1 x 6.7"/ 41 x 38.35 x 17 cm
