ATDM-0604A

Name: ATDM-0604A
Brand: Audiotechnica
SKU: ATDM-0604A
Price: 902.25 EUR
Availability: OutOfStock

Audiotechnica

EAN: 4961310139995

Digital SmartMixer® with 4 microphone channels, 2 mic / line, 1 stereo

go to the technical sheet

-2.5%

Save 2.5%

€ 902,25

€ 839,30 VAT excl.

€ 925,38

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

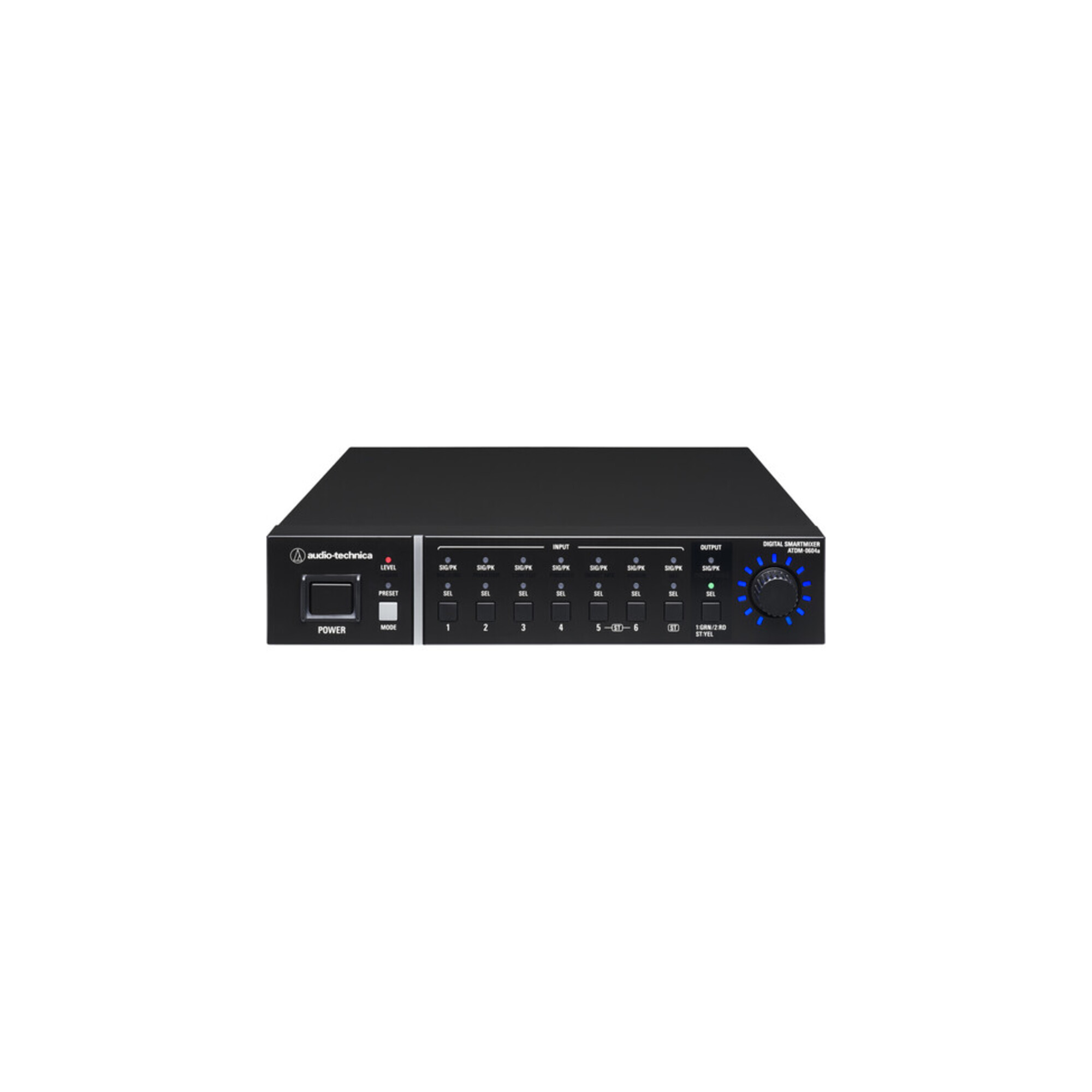

Audio professionals looking for a compact yet feature-rich digital mixer will be impressed with the Audio-Technica ATDM-0604a, an automated digital SmartMixer with advanced features suitable for meetings, legal proceedings, conferences, soft codec applications, radio and TV broadcasts and other applications that involve the use of multiple microphones or other multimedia inputs.

Building on the success of the original, the ATDM-0604a offers improved echo and noise cancellation performance, remote LED control of ES954 hanging microphone arrays, support for up to eight mixers sharing audio buses, extended compatibility with Audio-Technica LINK enabled products and microphone / line support on input channels. In addition, the ATDM-0604a includes remote web functionality via Windows PC, Mac, iOS or Android devices. The Audio-Technica ATDM-0604a includes eleven Euroblock connectors, rack mounting hardware, rack screws, a power cord and four rubber feet.

What's new
Improved echo and noise cancellation performance
Remote LED control of the ES954 hanging microphone array via the GPO terminal
Cascade connectivity for up to eight mixers sharing audio bus and SmartMix controls
Expanded compatibility with a wide variety of Audio-Technica LINK enabled products
Microphone / line level support for input channels 1 through 6
At first sight
6 mic / line inputs and 1 unbalanced stereo input
2 balanced outputs and 1 unbalanced stereo output
USB audio in / out (1 stereo in, 1 stereo out)
Remote LED control of ES954 hanging microphone array using the GPO terminal
SmartMixer with selectable gain sharing or gate mode
High performance echo canceller for each input channel
Noise cancellation that can be assigned to any output channel
Integrated 4-band equalizer and compressor / de-esser for each input channel
Eight 8-band feedback suppressors that can be assigned to mic / line inputs and any output channel
12-band PEQ, built-in compressor and limiter for each output channel
The dedicated Audio-Technica LINK terminals are compatible with a wide range of Audio-Technica LINK enabled products
Audio input / output settings can be configured from the front panel in applications without a computer
Advanced settings can be configured using the web browser or the Smart Mixer Manager app GUI in applications with a computer
External remote control based on IP protocol

Frequency characteristics
20 Hz to 20 kHz (Mic -16 dBu): ± 1.0 dB Da
20 Hz to 20 kHz (Mic -60 dBu): + 1.0 / -2.0 dB Da
20 Hz to 20 kHz (24 dBu line): ± 1.0 dB Da
20 Hz to 20 kHz (-40 dBu line): + 1.0 / -2.0 dB
Dynamic range: 110 dB or more, (A / ST weighted)
Signal to Noise Ratio (SNR): 90dB or more, (A / ST weighted)
Free height: 20dB or more
Input Noise: Input Referred Noise: -126 dBu or less (Rs = 150 Ohm, DIN)
Common mode rejection ratio: 80dB or more, 1kHz
Residual Noise: -86 dBu or less, (A-weighted)
Maximum gain: 64 dB
Channel separation: -80 dB or less (1 kHz units)
THD: 0.03% or less (1 kHz units)
Analog inputs
Mic 1-6: 0 dBu (maximum)
Mic 1-6 Unity: -40 dBu
Line 1-4: +10 dBu (maximum)
Line 1-4 Unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV
Line 5-6: +24 dBu (maximum)
Line 5-6 Unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV
Stereo: +10 dBV (Maximum)
Stereo Unity: -10 dBV / -20 dBV
Analog outputs
Unbalanced: +10 dBV / -13 dBV (Maximum)
Unbalanced Unit: -10 dBV / -33 dBV
Balanced (1 / L and 2 / R) +24 dBu / 20 dBV / +10 dBV (Maximum)
Balanced (1 / L and 2 / R Unity) +4 dBu / 0 dBV / -10 dBV
Phantom power: +48 VDC
Pad: -24dB
I / O connector: Stereo input: Euroblock connector (3-pin)
Mic / Line Input 1-6: Euroblock connectors (3-pin)
Unbalanced output: Euroblock connector (3-pin)
Balanced output 1 / L and 2 / R: Euroblock connectors (3-pin) Pin)
GPO: Euroblock connectors (3 pin)
Indicators: Signal / peak: 1 point (red / yellow / green)
peak: -5 to 0 dB (red)
Peak hold time: 2 seconds
Remote controller
IP Protocol: 1 x RJ-45
IP address: 192.168.33.102 (factory setting)
Communication speed: 100 Mb / s
Network: IP protocol: RJ-45
Input / output connection
IP protocol: 2 x RJ-45
Communication speed: 100 Mb / s
USB
USB:
channel type B: 1 stereo channel input, 1 stereo channel output (24 bit)
Communication speed: high speed (480Mb / s)
A / D / A converter: Resolution: 24 bit
Dynamic range: 115 dB
Temperature and humidity: Operating temperature range: 32 to 104 ° F / 0 to 40 ° C
Operating humidity: 25 to 85% (non-condensing)
Power Supply: from 100 to 240 VAC, 50/60 Hz
Power Consumption: 17W
Size: 8.6 x 14 x 1.8 "/ 21.8 x 35.6 x 4.4cm
The weight: 4.2 lbs / 1.9 kg
