R20
Zoom

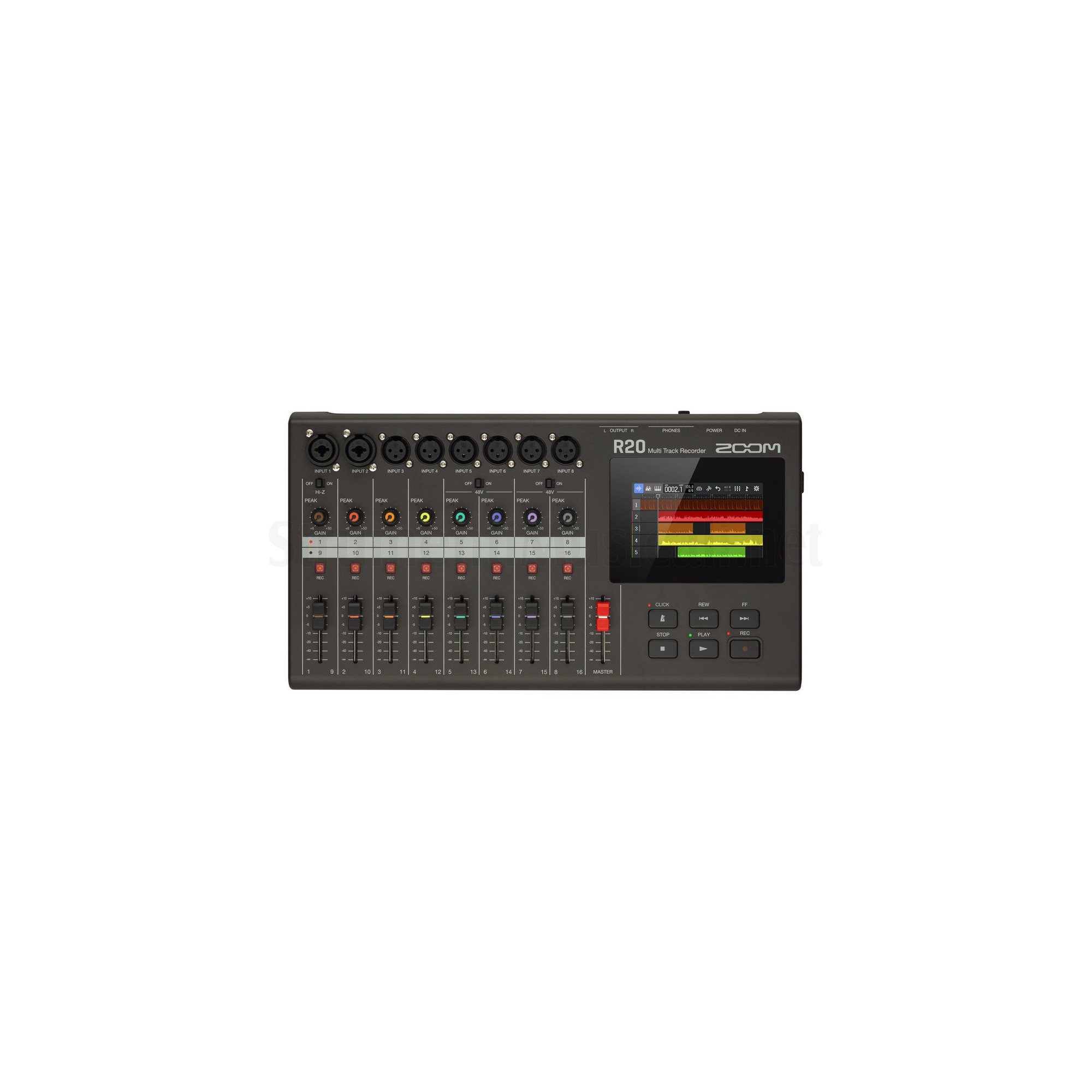

The other only hardware controls are the six transport buttons. That's because the Zoom R20 features a 4.3 "touchscreen for DAW-style multitrack editing, the first for Zoom portable MTRs. The screen displays audio regions just like your favorite DAW software and you can split, copy, paste, repeat and move regions with the touch of a finger The tracks are color-coded and match the colors of the input channels.
The recorder features a selection of studio-quality effects, such as a 3-band equalizer, compressor, limiter, noise gate and reverb, as well as guitar and bass amp modeling. If you like to use a studio holder to build backing tracks to practice, you'll love the 150 built-in rhythm loops and 18 synth sound sources, which can be played via MIDI and edited on a piano roll interface. The R20 records on SDXC cards with a capacity of up to 1TB. Next to the card slot, there is a USB-C connector for using the R20 as an audio interface for your computer or iOS device. On Windows and Mac systems, it functions as an 8 in / 4 out audio interface, providing 2 inputs and outputs each on iOS devices.
Another USB port allows you to connect an optional Bluetooth adapter to establish a wireless connection to a smartphone and remotely control the recorder via the R20 Control app.
4.3 "color LCD touchscreen display
Easy to use interface inspired by a DAW
Record up to 16 tracks (8 simultaneously)
Eight XLR mic preamps, including two combo mic / line / instrument jacks
Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
Built-in editing and built-in effects
Preloaded drum loops
The optional Bluetooth BTA-1 allows for wireless control via the R20 control app
USB-C audio interface (multitrack mode: 8 in / 2 out, stereo mode: 2 in / 2 out)
Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
New Lockable AC Adapter (ZAD-1220)
Up to 24bit / 44.1kHz audio in BWF compatible WAV
Compatible with Guitar Lab software for Mac / Windows PC
Dimensions: 378 x 206 x H58mm
Weight: 1.33kg
