6060-OC-U-W00

Name: 6060-OC-U-W00
Brand: DPA
SKU: 6060-OC-U-W00
Price: 470.9 EUR
Availability: OutOfStock

DPA

EAN: 5713055021184

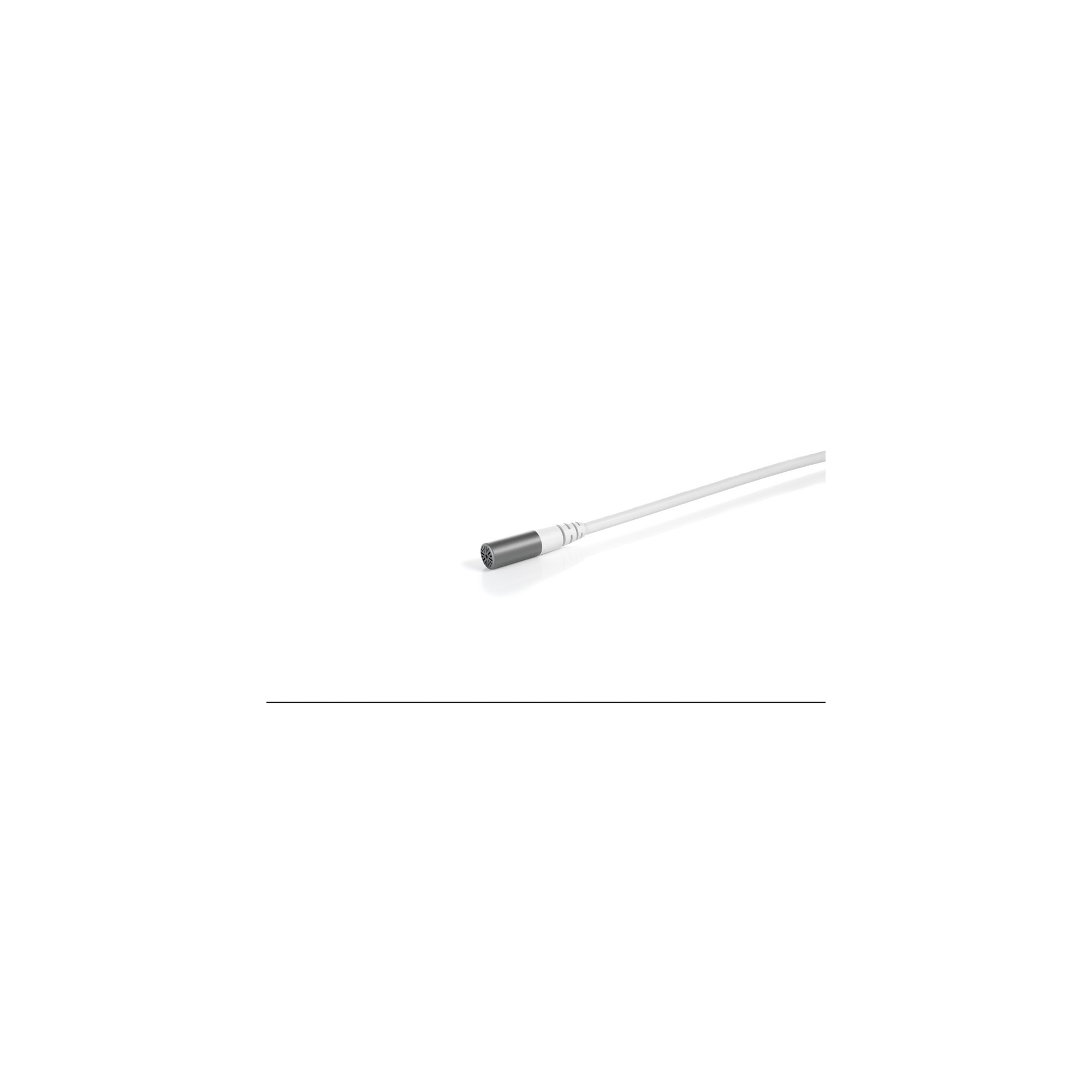

6060 Series Subminiature Microphone with MicroDot Connector(Normal Spl, White)

go to the technical sheet

-2.5%

Save 2.5%

€ 470,90

€ 438,05 VAT excl.

€ 482,98

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.
Sound Pressure Level (SPL)
Normal SPL (6060/4060/4160/4660)
Color White
MicroDot connector

Amazing 3 mm CORE capsule technology
Renowned DPA sound in a 60% smaller package
Stainless steel, PVD-coated mic housing
Modular adapter system fits most professional wireless systems

Cables & Connectors Microphones Wireless Microphones - Accessories Audio

DPA

DAD6003

€ 98,00 VAT included

Available in 14 days

DPA

DAD6010

€ 121,07 VAT included

Available in 14 days

DPA

DAD6019

€ 97,58 VAT included

Available 3 unit in 4 Days

DPA

DAD6034

€ 121,07 VAT included

Available 2 unit in 4 Days

DPA

DAD6001-BC

€ 131,70 VAT included

Available 2 unit in 4 Days

DPA

DUA9301-B

€ 57,41 VAT included

Available in 14 days

DPA

SCM0030-B

€ 31,84 VAT included

Available in 14 days

DPA

CM2218B00

€ 45,29 VAT included

Available in 14 days

Specifications
Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Effective frequency response
20 Hz - 20 kHz
Frequency range, ±2 dB
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 24 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 1%
123 dB SPL RMS, 126 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, THD 10%
134 dB SPL peak
Rated output impedance
From MicroDot: 30 - 40 O. From DAD6001-BC: 100 O
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
Connector
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color
Black or beige
Weight
8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter
3 mm (0.12 in)
Cable length
1.8 m (5.9 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
