BP4071

Name: BP4071
Brand: Audiotechnica
SKU: BP4071
Price: 1141.38 EUR
Availability: OutOfStock

Audiotechnica

Condenser Shotgun Microphone (15,5 ")

go to the technical sheet

-2.5%

Save 2.5%

€ 1.141,38

€ 1.061,75 VAT excl.

€ 1.170,65

Available in 11 days

Not sure if this is the right product for you? Talk to a consultant

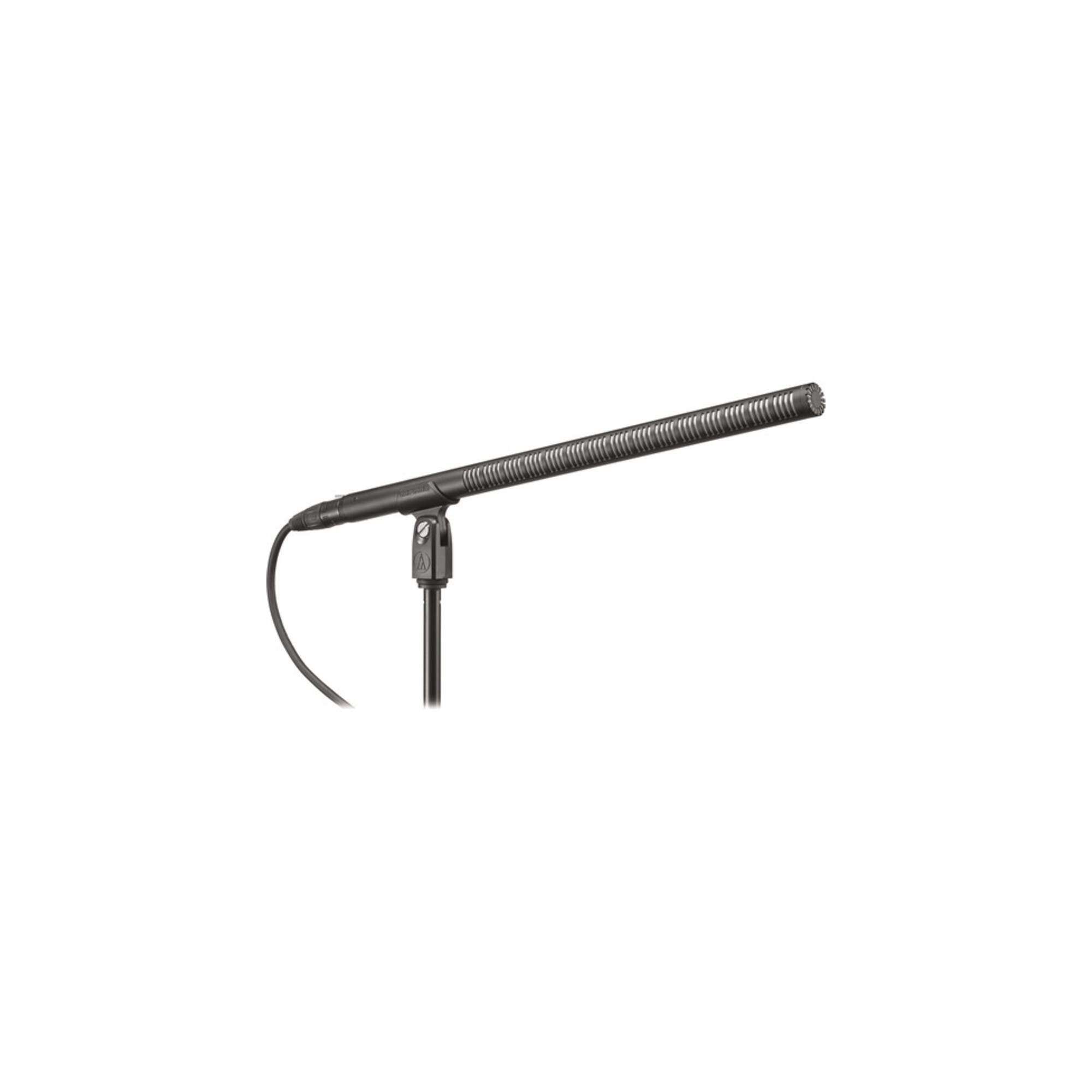

The BP28 from Audio-Technica is a 14" shotgun microphone that combines the directional characteristics of shotgun microphones with a highly sensitive, large-diaphragm condenser mic capsule that delivers accurate and natural sounding speech and dialog. The BP28's high directivity, low noise, and transparent audio reproduction make it well suited to broadcast, video, feature film, and theater applications.

The BP28 sports a 28mm diameter body to accommodate the large capsule, but manages to keep the interference tube relatively short; in addition, the mic incorporates a directional (gradient) element into the tube to further reduce pickup from the rear. Lightweight, yet durable, aluminum housing means the mic is still relatively easy to position and handle on a boom during active productions.

Features at a Glance
Large-diaphragm microphone capsule provides extremely high sensitivity (-28 dBV), wide dynamic range (135 dB), and high-SPL capability (153 dB, with pad engaged) for studio-quality results and highly accurate, natural-sounding speech and vocals with a very-low noise floor
14" length provides highly directional pickup pattern
Patented acoustic port design maintains directionality across the entire frequency range
Switchable 80 Hz high-pass filter & 10 dB pad
Transformer-coupled output provides a smooth sonic character
Rugged housing made of lightweight structural-grade aluminum alloy

Microphone
Primary applications: Broadcast, Audio for video, Location sound
Form Factor: Shotgun Microphone / Stand / Stand Holder
Expected sound sources: Voice, speech / voiceover
sound field: Mono
Operating principle: Line gradient
Condenser capsule
Polar model: Lobar, Supercardioid
Orientation: Final address
Circuit: Solid state
Pad: -10dB
High Pass Filter: 80Hz, 18dB / Octave
Adjustment gain: None
Indicators: None
Edge Controls: High Pass Filter, Pad
Windshield: Foam (included)
Performance
Frequency range: 20Hz to 20kHz
Maximum SPL
143 dB SPL
153 dB SPL (with pad)
Impedance: 250 Ohm
Sensitivity: -28dB
Dynamic range: 135dB
A-weighted 86 dB signal-to-noise ratio (1 kHz)
Equivalent Noise Level: 8 dB A-weighted
THD: 1%
Connectivity
Output connectors (analog): 1 x 3-pin XLR male (on microphone)
Power
Operating voltage: 11 to 52V
Operating current consumption: 3.4 mA
Physicist
Mounting: Clip adapter / microphone holder (included)
Mounting Thread Size: 5/8 "-27 female (3/8" -16 female with adapter included)
Case Included: Hard Case
Filters included: None
Construction material: Aluminum
Dimensions: 1.1 x L: 14 "/ diameter: 28 x L: 355 mm
The weight: 7.9 ounces / 223g
Packaging information
Package weight: 3,045 lbs
Box Dimensions: 28.4 x 3.7 x 3.4 "

Microphone
sound field: Mono
Operating principle: Line gradient
Condenser capsule
Pad: -10dB
High Pass Filter: 80Hz, 12dB / Octave
Adjustment gain: None
Windproof: Sponge (included)
Performance
Frequency range: 20Hz to 20kHz
Maximum SPL: 141dB SPL
Impedance: 50 Ohm
Sensitivity: -29dB
Dynamic range: 128dB
Signal-to-Noise Ratio: 81dB
Equivalent Noise Level: 13dB
THD: 1%
Connectivity
Output connectors: 1 x 3-pin XLR
Power
Operating voltage: 48V
Operating current consumption: 4.8 mA
Physicist
Mounting: Clip adapter / microphone holder (included)
Mounting Thread Size: 5/8 "-27 female (3/8" -16 female with adapter included)
Case Included: Hard Case
Dimensions: 0.83 x L: 15.55 "/ ø: 21 x L: 369 mm
The weight: 4.8 ounces / 136g
Packaging information
package weight: 1.75lbs
Box Dimensions: 19.5 x 4.6 x 2.5 "
