AT-4060A

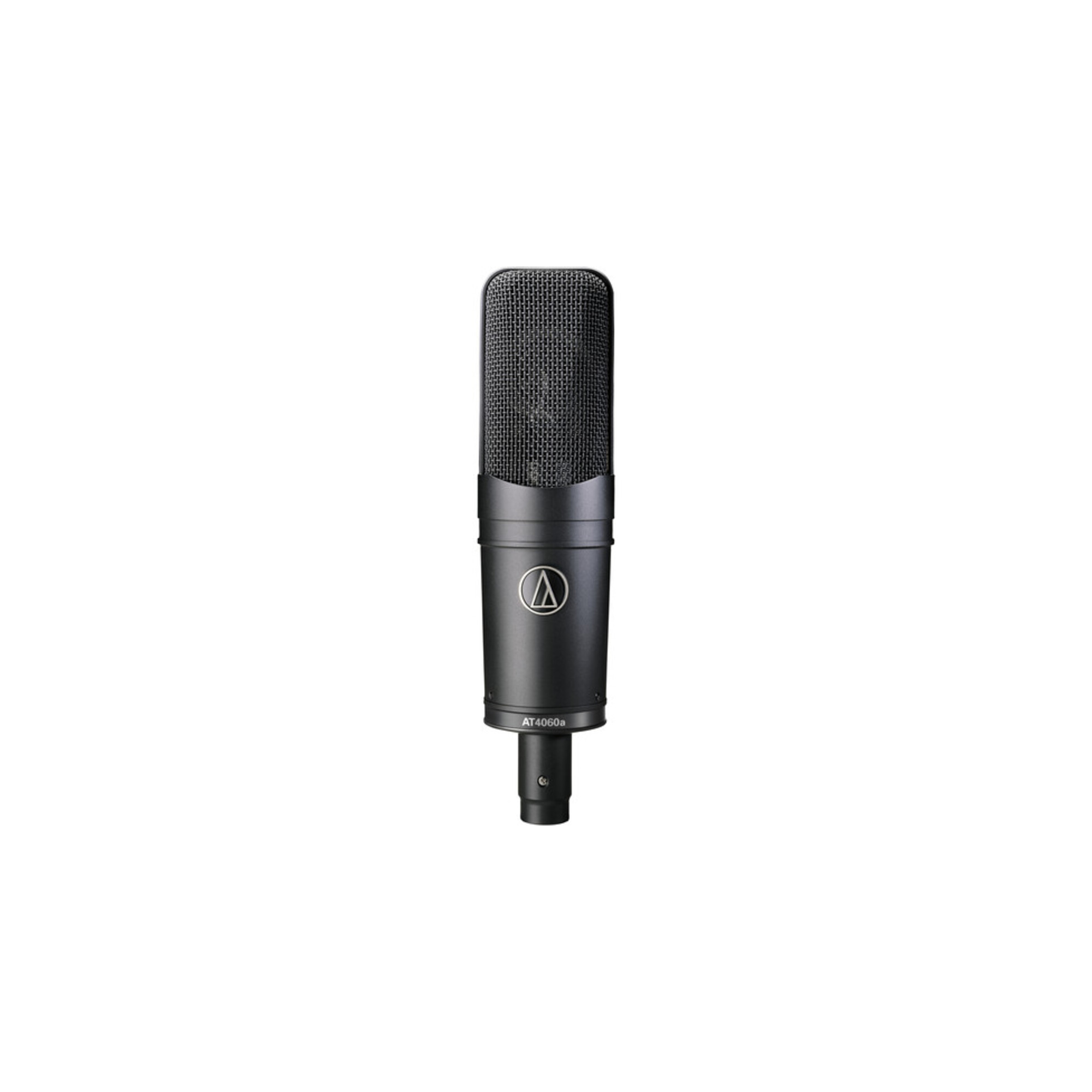

The AT4060a Cardioid Condenser Microphone is designed for use in demanding studio applications. The tube is hand-selected, individually aged and tested, then employed in a uniquely configured circuit for enhanced tube performance. Specially tuned elements improve the dynamic range and the allow the AT4060a to handle high SPLs without sacrificing high-frequency characteristics. Floating-construction mounting of the elements provides isolation from noise and vibration. The AT4060a operates in conjunction with the included tube microphone powering unit, featuring low-impedance output and a ground-lift switch.

-Vintage tube sound with the versatile performance necessary for the most demanding studio applications
-Hand-selected tubes are individually tested and aged to maintain peak performance
-Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
-Wide dynamic range, low self-noise and high max SPL capability
-Large coupling transformer provides superior low-frequency linearity
-Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
-The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved -remain constant over years of use
-Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity




In the Box
-Audio-Technica AT4060a Cardioid Condenser Microphone
-AT8560a Tube Microphone Powering Unit
-AT8447 Shock Mount for 5/8"-27 Threaded Stands
-Rack-Mount Adapters for Tube Microphone Powering Unit
-Protective Microphone Carrying Case
-Limited 1-Year Warranty



Audio-Technica AT4060A Specs
Microphone
Primary Applications: Studio Recording
Form Factor: Stand/Boom Mount
Sound Field: Mono
Capsule: 1 x Condenser
Polar Pattern: Cardioid
Orientation: Side Address
Circuitry: Tube
Pad: None
High-Pass Filter: None
Tone Adjustment: None
Gain Adjustment: None
Indicators: None
On-Board Controls: None
Windscreen: None
Performance
Frequency Range: 20 Hz to 200,000 Hz
Maximum SPL:
150 dB SPL (1 kHz, 1% THD)
149 dB SPL Peak (1 kHz, .5% THD)
Impedance: 200 Ohms
Sensitivity: -34 dBV/Pa / 19.9 mV (Open Circuit Voltage)
Dynamic Range: 131 dB (1 kHz, at Max SPL)
Signal-to-Noise Ratio: 75 dB (1 kHz, at 1 Pa/94 dB SPL)
Connectivity
Output Connectors (Analog): 1 x XLR 3-Pin (on Power Supply)
Headphone Connector: None
Cable Length: 24.9' / 7.6 m
Power
AC Input Power: 120 VAC, 60 Hz
Physical
Color: Black
Mounting: Shockmount (with Included Hardware)
Mounting Thread Size: 5/8"-27 Female
Included Case: Hard Case
Included Filters: None
Dimensions: 2.1 x L: 8.5" / diameter: 53.4 x L: 215 mm (Microphone)
diameter: 5.2 x H: 1.8 x W: 8.3" / diameter: 131.5 x H: 46 x W: 212 mm (Power Supply)
Weight: 22.8 oz / 645 g (Microphone)
45.9 oz / 1.3 kg (Power Supply)
Packaging Info
Box Dimensions: 11.61 x 11.61 x 5.51"
