4671-OC-H-B00

4671-OC-H-B00

DPA

5713055018948
DPA CORE Heavy-Duty Low-Sensitivity Omni Lavalier Microphone
go to the technical sheet
  • -2.5%
Save 2.5%
€ 633,66

€ 589,45 VAT excl.

€ 649,90
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

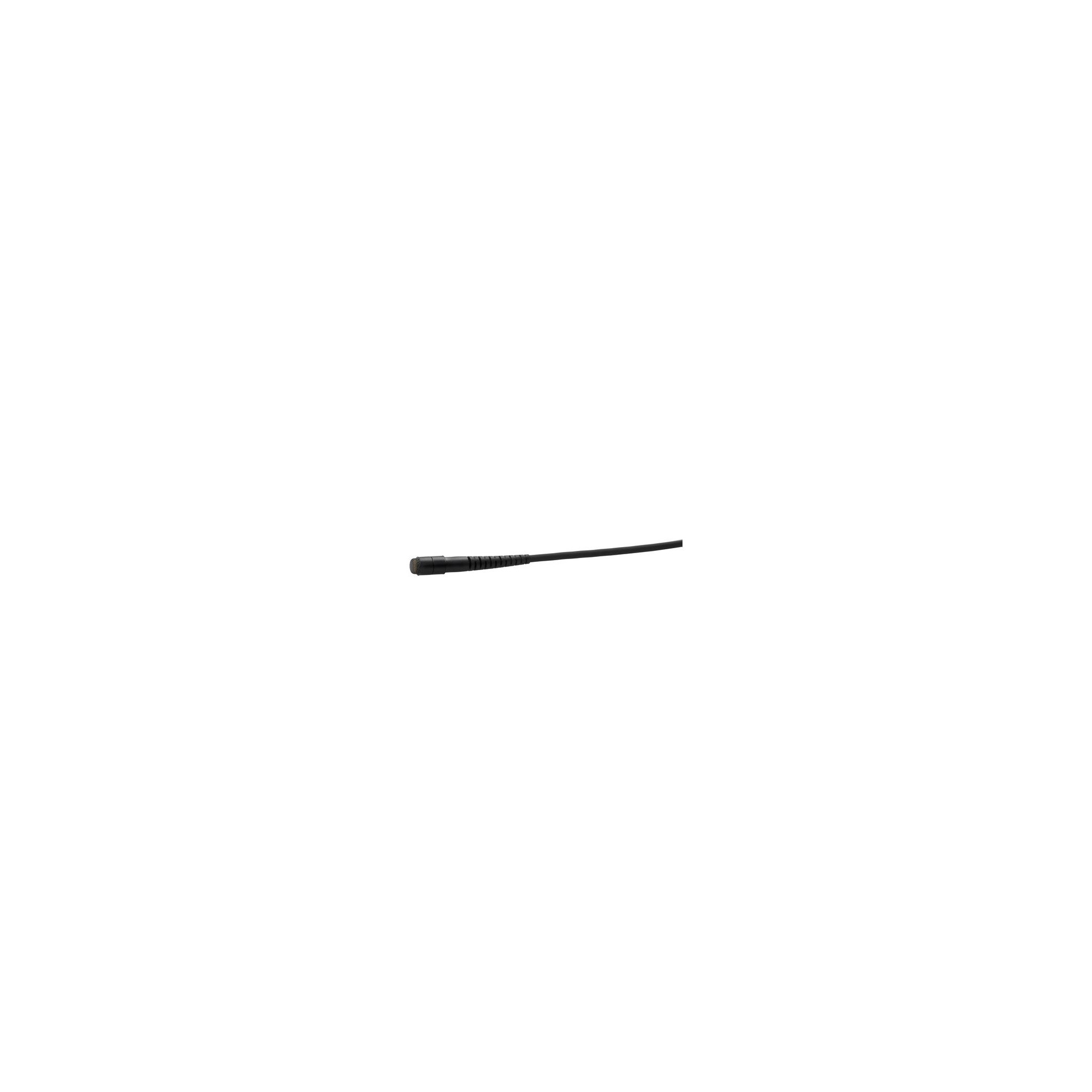

DPA Microphones 4671 CORE Heavy-Duty Low-Sensitivity Omni Lavalier Microphone with Presence Boost (Black).

The black DPA 4671 CORE is a miniature, moisture-resistant lavalier microphone with heavy-duty construction designed for use with wireless systems for broadcast, performance, and electronic news gathering (ENG) applications. The low-sensitivity electret-condenser capsule can handle loud presenters, speakers, and performers and delivers crisp, clear, and intelligible audio, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.

The 4671 is a heavy-duty version of the mic built with stainless-steel housing, a thicker 2.2mm cable, and reinforced strain relief enabling the microphone to withstand rough conditions is a variety of difficult working environments.

The capsule uses DPA's CORE technology to deliver a 97 dB dynamic range with a 14 dB reduction in noise over the Legacy model. The mic features a fixed protective EQ grid with a low-cut filter at 100 Hz and a high-boost of approximately +5 dB in the 4 to 6 kHz range. This EQ curve gives the mic improved clarity for chest-placement, making the 4671 popular for journalists and news crews.

With an SPL rating of 144 dB, the microphone is more than capable of handling loud speakers, vocalists, and presenters. The 4671 CORE is powered by 5 to 10V plug-in power from a wireless transmitter and features a modular design using a Microdot output connector.

Compatible Wireless Transmitters:

- Various: Works with various transmitters via a compatible adapter (available separately).
- The modular design allows you to adapt the 4671's Microdot connector to a wide variety of transmitters simply by purchasing the compatible adapter—saving you the expense of buying another microphone.

In the Box

- DPA Microphones 4671 CORE Heavy-Duty Low-Sensitivity Omni Lavalier Microphone with Presence Boost (Black)
- Limited 2-Year Warranty

Microphone
Form Factor: Lavalier
Sound Field : Mono
Operating Principle: Pressure Operated
Capsule : Condenser
Diaphragm : 0.2" / 5.4 mm
Polar Pattern : Omnidirectional
High-Pass Filter: 100 Hz
Windscreen : Foam (Available Separately)

Performance
Frequency Range : 100 Hz to 15 kHz
Maximum SPL: 137 dB SPL Peak (Plug-In Power, 1% THD), 144 dB SPL Peak (Plug-In Power, 10% THD)
Impedance : 40 Ohms
Sensitivity: 6 mV/Pa at 1 Hz
Dynamic Range : 111 dB A-Weighted
Equivalent Noise Level : 56 dB A-Weighted
THD: < 1%

Connectivity
Output Connectors: 1 x Microdot 1-Pin Male (Lockable)
Headphone Connector: None
Cable Length : 5.9'' / 1.8 m

Power
Operating Voltage: 5 to 10 V
Operating Current Consumption : 1.5 mA

Physical
Color : Black
IP Rating: IP58
Operating Temperature: -40 to 113°F / -40 to 45°C
Operating Humidity : 0 to 90%
Dimensions : 0.2 x L: 0.7" / diameter: 5.4 x L: 17.6 mm
Weight : 0.5 oz / 14 g (with Cable)
