Audiotechnica

Condenser stylus microphone, omnidirectional, AT8405a support, windproof
go to the technical sheet
  • -2.5%
Save 2.5%
€ 626,75

€ 583,02 VAT excl.

€ 642,82
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant

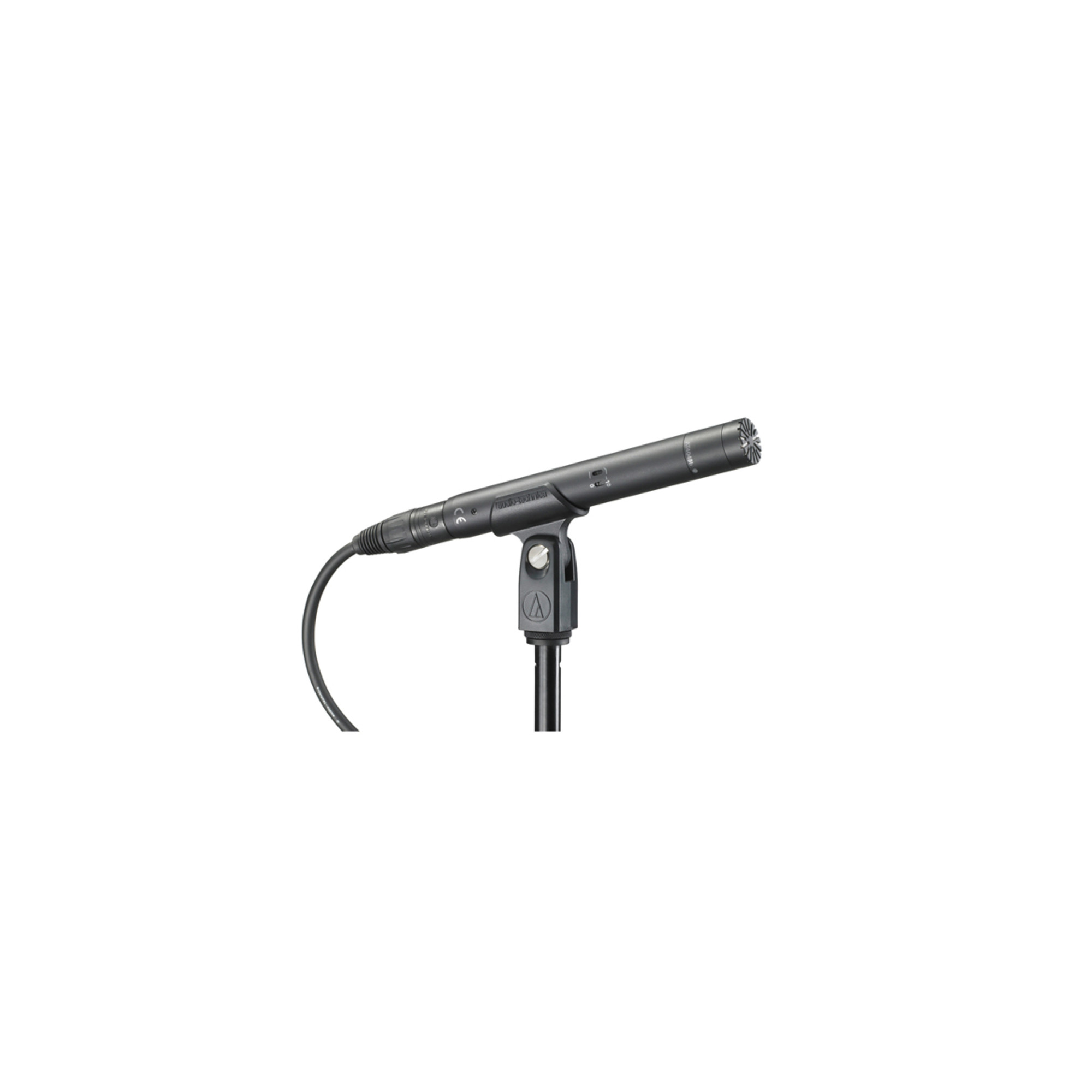

Condenser microphone for recording percussion, wind instruments such as flute and piccolo or for recording strings such as cello and violin.

The AT4049b microphone has an interchangeable capsule and is therefore suitable for use in a wide variety of applications.

It has an omnidirectional polar pattern that you can easily change by replacing the capsule (supplied) with one of the others available in the catalog (not supplied):
AT4051b-ELE - CARDIOID capsule
AT4053b-ELE - HYPERCARIDIOID capsule


It has transformerless balanced outputs for a clean signal even at high levels and to avoid distortion typical of transformer coupled outputs.

• Specifically designed to meet the most demanding acoustic requirements in the fields of professional recording, broadcast and sound reinforcement.
• The balanced output without transformer guarantees a clean signal even in the case of high output levels.
• Transformerless circuitry virtually eliminates low frequency distortion and provides premium response to fast transients.
• The sturdy turned brass housing guarantees long-lasting reliability.
• State-of-the-art design and production techniques ensure compliance with the strict standards of reliability and consistency of product quality.

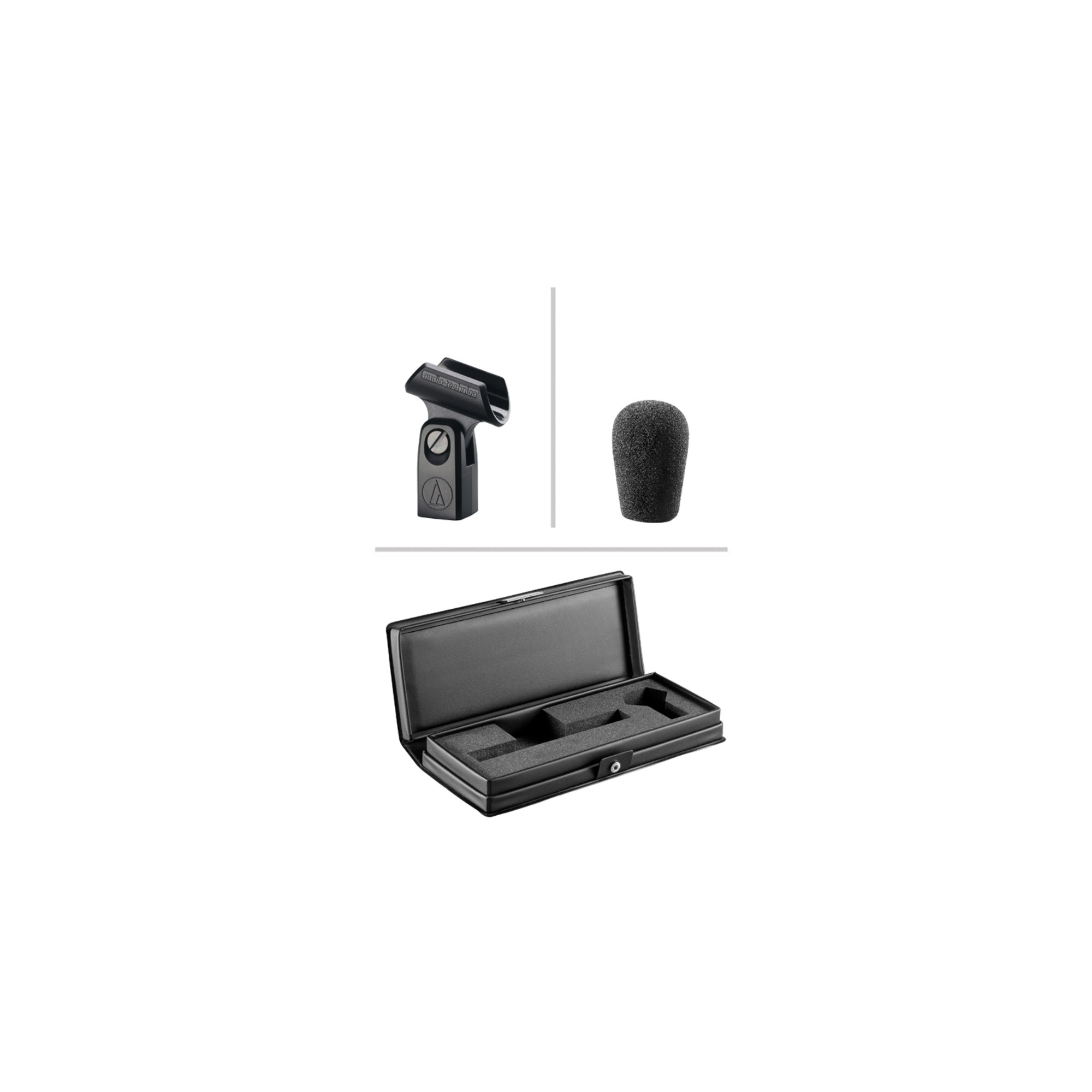

Included accessories:
Rod holder AT8405a
Windproof AT8159
Custody

Capsule: Externally polarized condenser
Polar feature: Omnidirectional
Frequency Response: 20-20,000Hz
High Pass Filter: 80Hz, 12dB / octave
Open circuit sensitivity
- 34 dB (19.9 mV) ref. 1V @ 1 Pa *
Impedance: 50 ohms
Maximum applicable sound pressure
145 dB SPL, 1 kHz @ 1% T.H.D .;
155 dB SPL, with 10 dB attenuator
Intrinsic noise: 16 dB SPL
Dynamic range (typical): 129 dB, 1 kHz @ maximum SPL
Signal to Noise Ratio: 78 dB, 1 kHz @ 1 Pa *
Phantom power requirements: 48V DC, 4.8 mA typical
Switches: linear / filtered; attenuator 10 dB (nominal)
Weight (without accessories): 130 g
Dimensions: 155mm length x 21mm diameter (max)
Connector: Integrated XLR3M
Optional interchangeable capsules
AT4051b-EL (cardioid);
AT4053b-EL (hypercardioid)

Included accessories:
Rod holder AT8405a
Windproof
Soft case

* 1 Pascal = 10 dynes / cm2 = 10 microbars = 94 dB SPL
