AT-5045

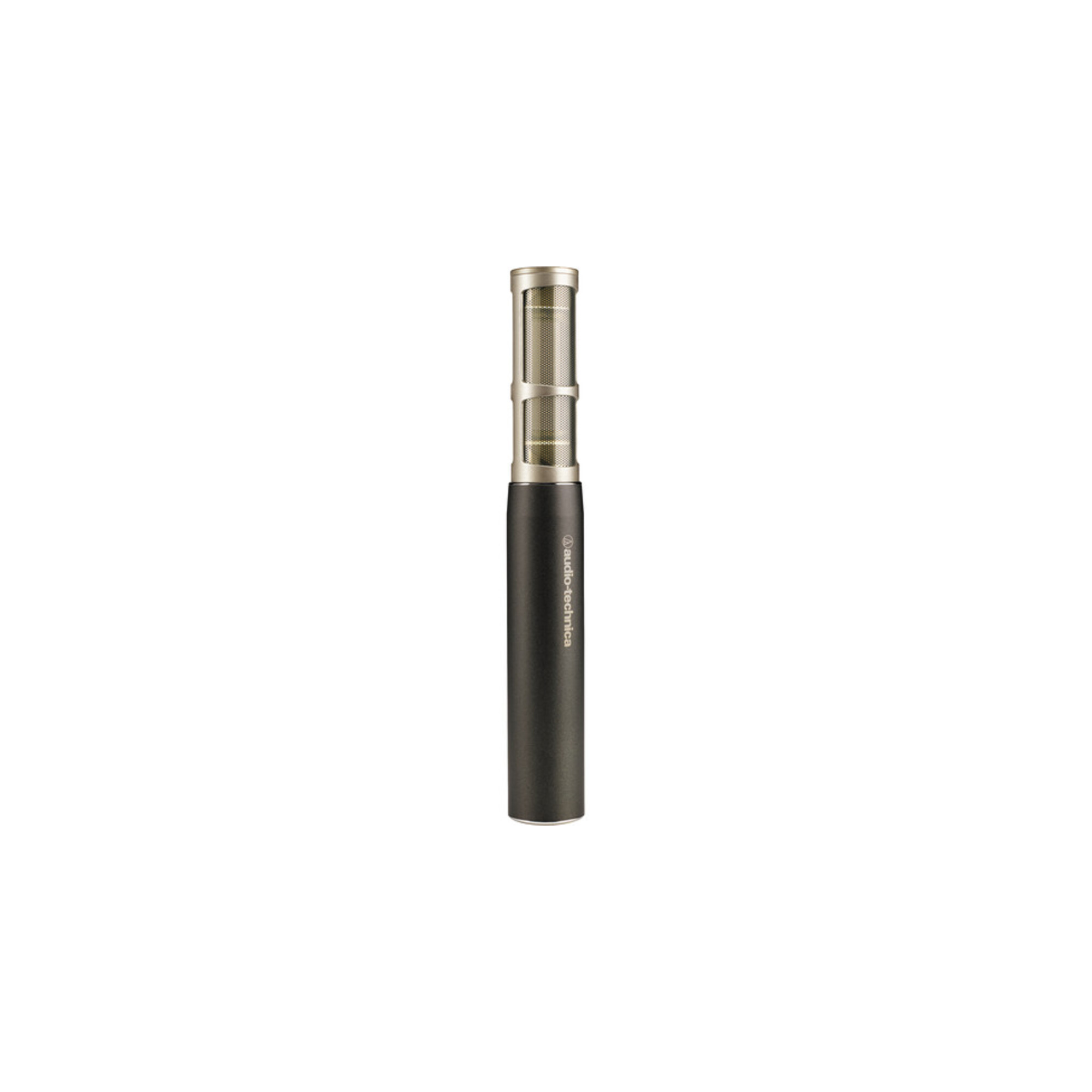

The AT5045 Cardioid Condenser Instrument Microphone from Audio-Technica offers the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body. It provides an aluminum and brass enclosure for durability and low reflectivity as well as discrete components for optimized functionality. The capsule assembly and circuitry are mounted as a single block within a floating internal shockmount, decoupling the capsule from the microphone body for vibration isolation. There is a transformer coupled output with low noise and 149 dB SPL handling throughout. Additional features include a cardioid polar pattern, a wide frequency response of 20 Hz to 20 kHz, and a high dynamic range of 141 dB. The microphone can be used for recording percussion, drums, acoustic guitar, other acoustic instruments, strings, and similar applications. The package include one isolation clamp, one windscreen, and a protective carrying case.

Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings, and other acoustic instruments
Side-address, stick design microphone with large diaphragm surface area
Discrete components for optimized performance
Transformer-coupled output provides smooth sonic character
Low noise with high-SPL capability
Advanced internal shockmounting decouples the capsule from the microphone body
Aluminum and brass housing for durability
Isolation clamp provides secure mounting, versatile positioning, and effective dampening of unwanted mechanical noise
Includes custom hard-shell carrying case with die-cut foam compartments for protection

In the Box
-Audio-Technica AT5045 Cardioid Condenser Instrument Microphone
-AT8481 Isolation Clamp for 5/8"-27 Threaded Stands
-AT8165 Windscreen
-Protective Carrying Case
-Limited 5-Year Warranty



Microphone
-Capsule: Condenser
-Polar Pattern: Cardioid
-Performance
Frequency Range: 20 Hz to 20 kHz
-Maximum SPL: 149 dB SPL
-Impedance: 100 Ohms
-Sensitivity: -35 dB
-Dynamic Range: 141 dB
-Signal-to-Noise Ratio: 86 dB
-Equivalent Noise Level: 8 dB
-THD: 1%
-Connectivity
-Output Connectors: 1 x XLR 3-Pin
-Power
-Operating Voltage: 48 V
-Operating Current Consumption: 1.4 mA
-Physical
-Dimensions: 0.98 x L: 6.97" / diameter: 25 x L: 177 mm
-Weight: 6.95 oz / 197 g
-Packaging Info
-Package Weight: 2,6 kg
-Box Dimensions: 44,5 x 31 x 19,3 cm
