AT-5047

The Audio-Technica AT5047 is a cardioid studio condenser microphone designed to provide engineers and musicians with accurate, low-noise reproduction of voices and instruments in high-end facilities, project studios and home recording setups. It features four rectangular 2-micron gold vapor-deposited diaphragms that offer twice the surface area of the 1-inch circular diaphragms commonly used in large diaphragm condenser microphones. The transformer-coupled output of the AT5047 provides a constant impedance for reliable performance with your preamp.

A wide frequency response of 20Hz to 20kHz, combined with the ability to handle a maximum SPL of 148dB, means you can capture a variety of sources, from soft and nuanced to loud and cheeky, with detail and precision. . Producing only 6 dB of self-noise, the microphone contributes to a clean and clear signal.

The AT5047 is assembled by hand and housed in a durable aluminum and brass housing. Comes with a custom hard and shockproof carrying case.

The cardioid polar pattern rejects off-axis sounds
Four rectangular 2-micron, vapor-deposited gold diaphragms work together to double the surface area of a typical 1 "circular diaphragm.
The transformer coupled output provides a constant load output impedance
Frequency response from 20Hz to 20kHz
The maximum SPL of 148 dB can handle extremely noisy sources
The 6 dB low noise output keeps the signal path clean
The aluminum and brass housing is smooth and durable
Hand assembled and discreetly inspected for optimum quality
Includes shockproof and rigid carrying case



In the box

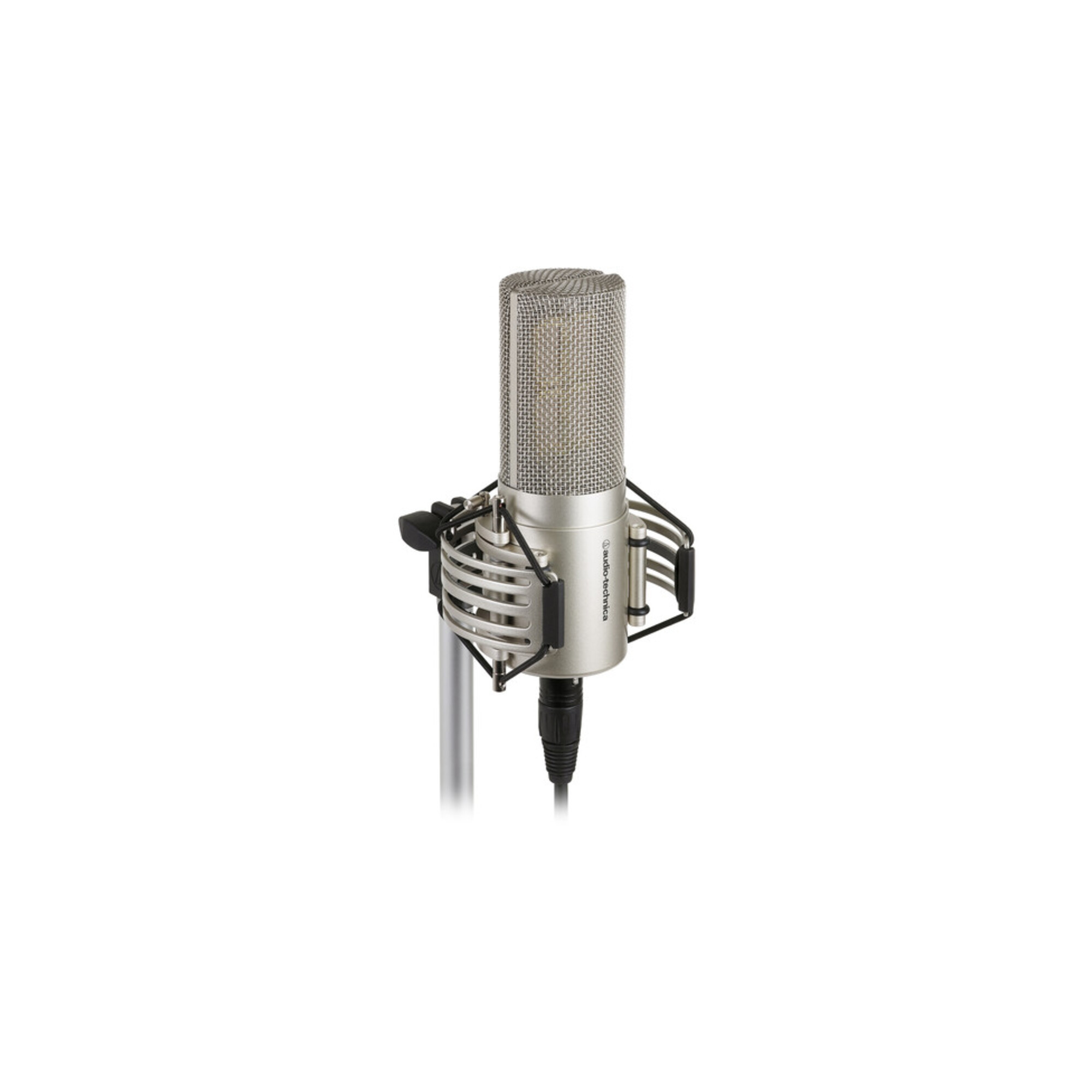

Audio-Technica AT5047 Cardioid Studio Condenser Microphone
AT8480 Shockproof support
Adapter for 3/8 "to 5/8" support.
Protective carrying case
5-year limited warranty



Audio-Technica AT5047 Specifications
Microphone
sound field: Mono
Operating principle: Pressure gradient
Capsule: Condenser
Polar pattern: cardioid
Circuit: Solid state
Pad: None
High Pass Filter: None
Performance
Frequency range: 20Hz to 20kHz
Maximum SPL: 148dB SPL
Impedance: 150 Ohm
Sensitivity: -29dB
Dynamic range: 142dB
Signal-to-Noise Ratio: 88dB
Equivalent Noise Level: 6dB
Connectivity
Output connectors (analog): 1 x 3-pin XLR
Power
Operating voltage: 48V
Physicist
Dimensions: 2.24 x L: 6.51 "/ diameter: 57 x L: 165.3 mm
The weight: 1.3 lbs / 592g
Packaging information
Package Weight: 7.1lbs
Box dimensions: 17 x 12 x 8 "
