AT8022

Name: AT8022
Brand: Audiotechnica
SKU: AT8022
Price: 510.73 EUR
Availability: OutOfStock

Audiotechnica

X/Y Stereo Microphone:powered with AA battery or phantom power

go to the technical sheet

-2.5%

Save 2.5%

€ 510,73

€ 475,10 VAT excl.

€ 523,83

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

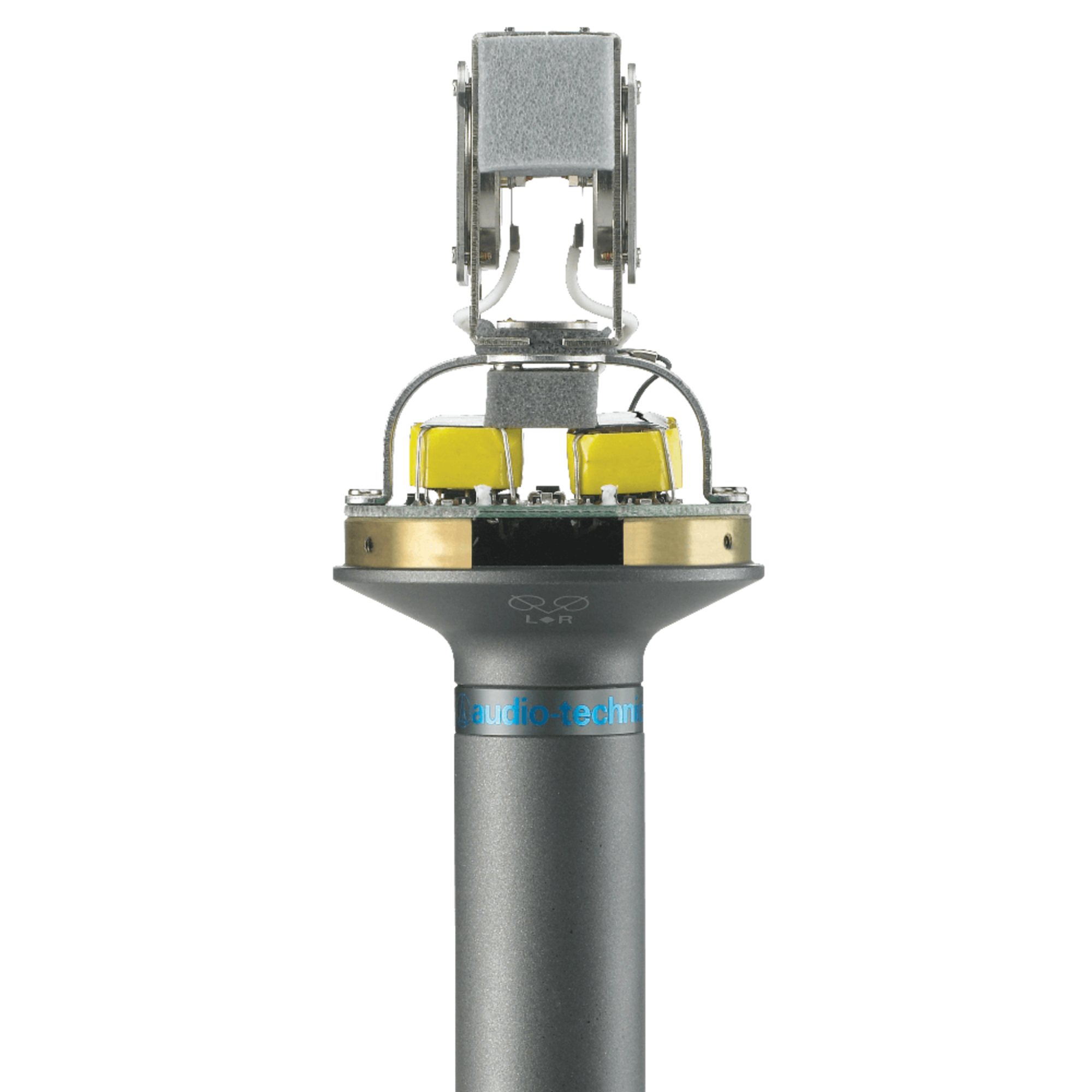

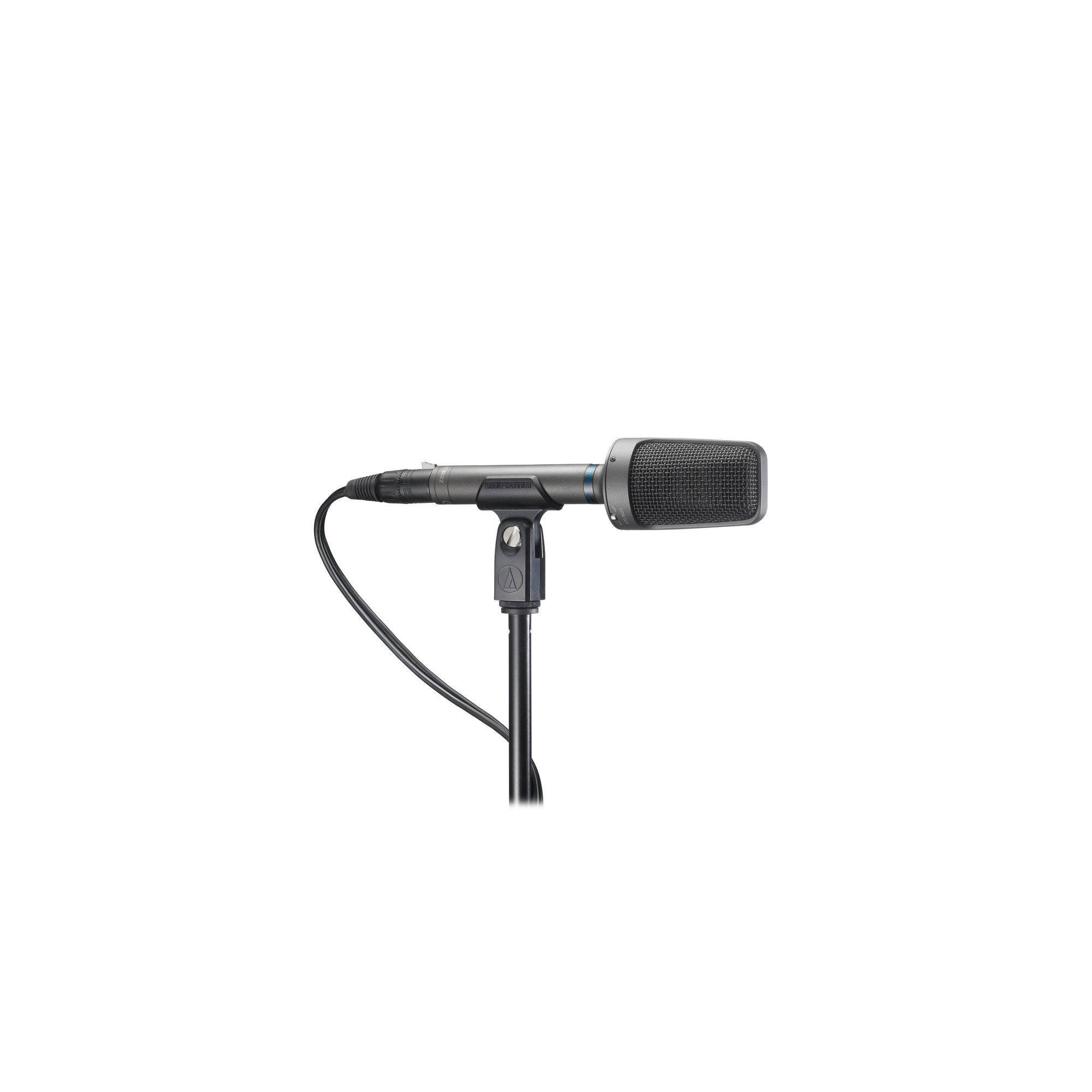

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

ELEMENT Fixed-charge back plate permanently polarized condenser
POLAR PATTERN X/Y Stereo
FREQUENCY RESPONSE 20-15,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY Phantom: -38 dB (12.5 mV) re 1V at 1 Pa
Battery: -38 dB (12.5 mV) re 1V at 1 Pa
CHANNEL BALANCE <2.5 dB
IMPEDANCE Phantom: 250 ohms
Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL Phantom: 128 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) Phantom: 109 dB, 1 kHz at Max SPL
Battery: 101 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 75 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical (each channel)
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT / LIFE 0.7 mA / 700 hours typical
(alkaline)
SWITCH Battery On/Off; Flat, roll-off
WEIGHT 247 g (8.7 oz)
DIMENSIONS 186.0 mm (7.32") long,
47.6 mm (1.87") head diameter
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR Integral 5-pin XLRM-type
CABLES Balanced: 2.0 m (6.5'') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end;
Unbalanced: 0.6 m (2.0'') long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end

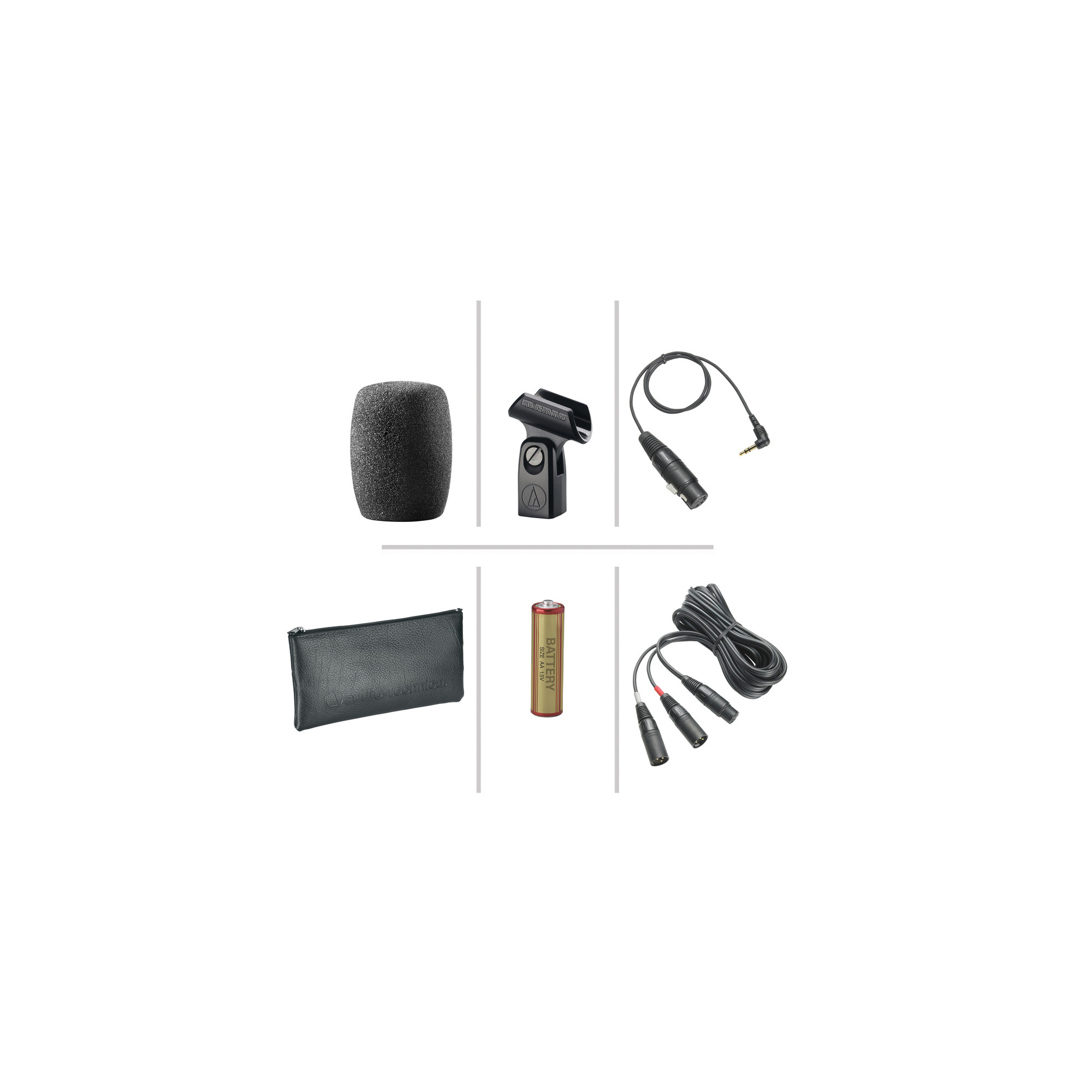

ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch
AUDIO-TECHNICA CASE STYLE S12
