Audiotechnica

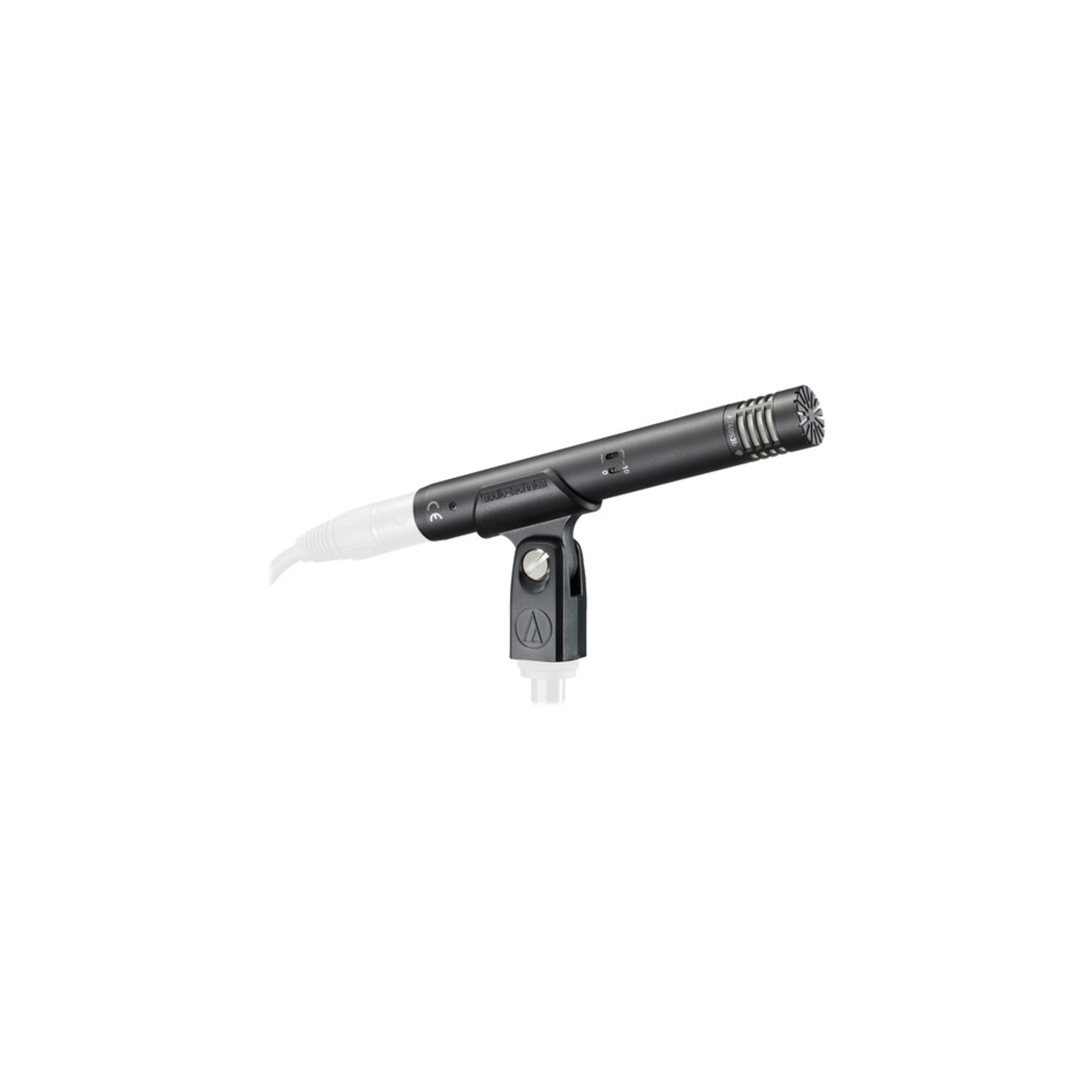

Microphone Condenser stylus, hypercardioid with interchangeable capsule
go to the technical sheet
  • -2.5%
Save 2.5%
€ 626,75

€ 583,02 VAT excl.

€ 642,82
Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
CONDENSER MICROPHONE, HYPERCARDIOID
Condenser microphone for recording the hi-hat of the drums (hi-hat), for percussion in general and for the banjo.

The AT4053b microphone has an interchangeable capsule and is therefore suitable for use in a large variety of applications.

It has a hypercardioid polar pattern that you can easily change by replacing the capsule (supplied) with one of the others available in the catalog (not supplied):
AT4049b-ELE - OMNIDIRECTIONAL capsule
AT4051b-ELE - CARDIOID capsule

It has transformerless balanced outputs for a clean signal even at high levels and to avoid distortion typical of transformer coupled outputs.

• Specifically designed to meet the most demanding acoustic requirements in the fields of professional recording, broadcast and sound reinforcement.
• The balanced output without transformer guarantees a clean signal even in the case of high output levels.
• Transformerless circuitry virtually eliminates low frequency distortion and provides premium response to fast transients.
• The sturdy turned brass housing guarantees long-lasting reliability.
• State-of-the-art design and production techniques ensure compliance with the strict standards of reliability and consistency of product quality

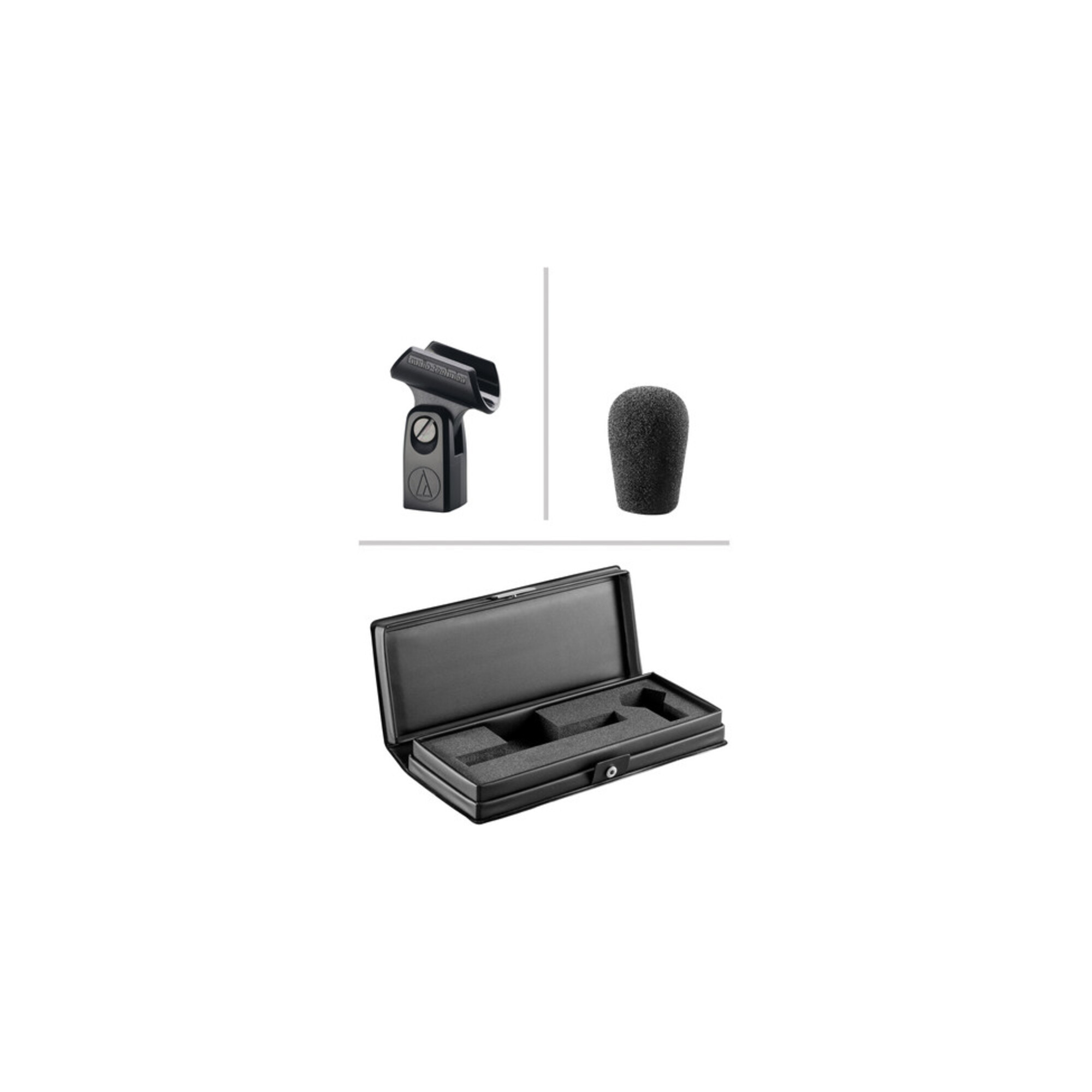

Included accessories:
Rod holder AT8405a
Windproof AT8159
Custody

Capsule: Externally polarized condenser
Polar feature: Hypercardioid
Frequency Response: 20-20,000Hz
High Pass Filter: 80Hz, 12dB / octave
Open circuit sensitivity
- 34 dB (19.9 mV) ref. 1V @ 1 Pa *
Impedance: 50 ohms
Maximum applicable sound pressure
145 dB SPL, 1 kHz @ 1% T.H.D .;
155 dB SPL, with 10 dB attenuator
Intrinsic noise: 16 dB SPL
Dynamic range (typical): 129 dB, 1 kHz @ maximum SPL
Signal to Noise Ratio: 78 dB, 1 kHz @ 1 Pa *
Phantom power requirements
-48V DC, 4.8mA typical
Switches: linear / filtered; attenuator 10 dB (nominal)
Weight (without accessories): 127 g
Dimensions: 155mm length x 21mm diameter (max)
Connector: Integrated XLR3M
Optional interchangeable capsules
-AT4049b-EL (omnidirectional);
-AT4051b-EL (cardioid)
Accessories included:
Rod holder AT8405a
Windproof
Soft case

* 1 Pascal = 10 dynes / cm2 = 10 microbars = 94 dB SPL
