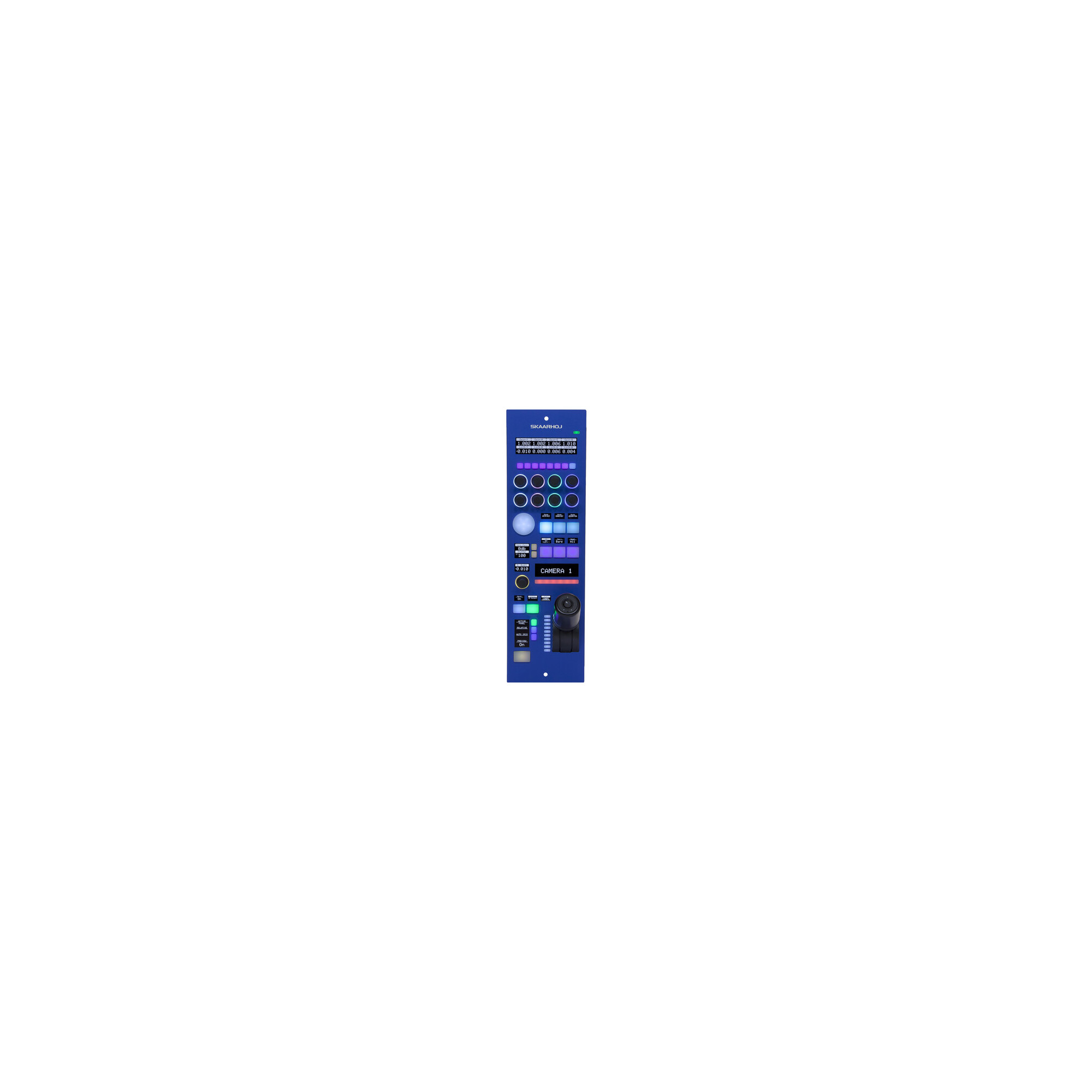

RCP V2 Joystick SDI Blue Pill

General
Controls:
- 13 x Elastomer Button
- 8 x Elastomer Four-Way Button with Display
- 1 x Elastomer Four-Way Button
- 1 x Joystick Top Button
- 1 x Joystick Fader
- 1 x Joystick Wheel
- 1 x Opto-Isolated Input (to GND)
- 1 x Elastomer Joystick, Left-Right
- 1 x Elastomer Joystick, Up-Down
- 8 x Encoder Knob w/LED Ring
- 1 x Encoder Knob
Display:
- 8 x OLED 64 x 32 Pixels, Gray
- 18 x OLED 64 x 32 Pixels
- 1 x OLED 128 x 32 Pixels
- 4 x OLED Display Tiles

Display
Panel Type: OLED
Touchscreen: No

Inputs/Outputs
USB I/O: 1 x Micro-USB 2.0 Female Input
Video I/O:
- 1x BNC Input ( Direct Shading of Blackmagic Cameras )
- 1x BNC Output ( Direct Shading of Blackmagic Cameras )
Other I/O:
- 1 x RJ45 Gigabit Ethernet
- 1 x DB-9 GPIO
- 1 x 2.1 mm DC Power Input

Wireless
Wireless: Yes

Power
Power Source: AC Adapter with Power Brick (Included), PoE (Built-In)
DC Input Power: 12 VDC at 1.25 A

Physical
Cable Length: 5'' / 1.5 m
Dimensions: 14 x 4.6 x 4" / 355 x 118 x 102 mm
Weight: 2.78 lb / 1.26 kg

1x RCPv2 Joystick with SDI and Blue Pill Inside
1x 12 VDC Power Adapter
1x Power Cable (5''/1.5 m)
