DS100

DSP FM Transmitter 100W RFE

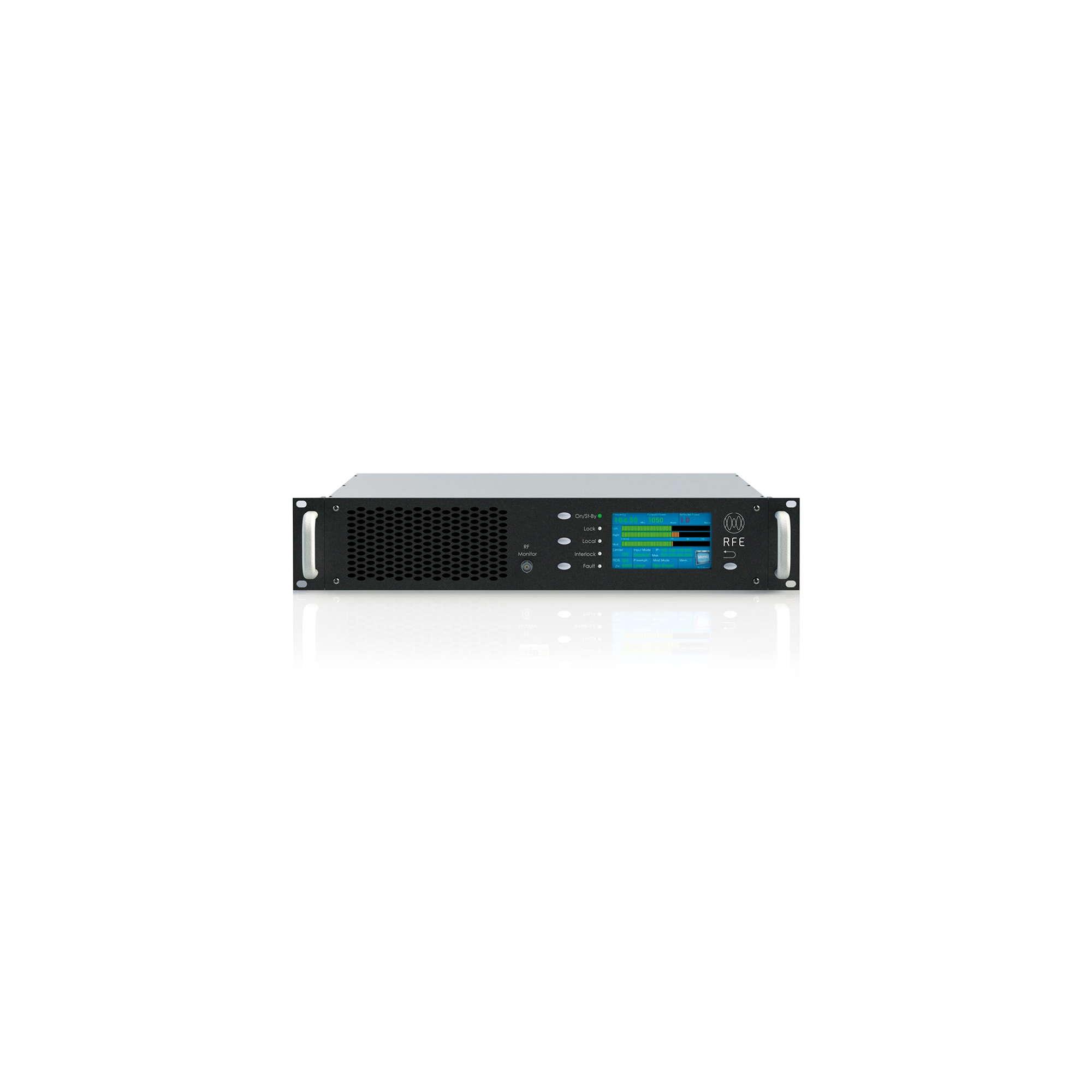

100W DSP Based Compact FM Transmitter 87.5 – 108 MHz. 2U.
Power controls: Continuously adjustable from front panel or Web and /or within a selectable time range.
Audio Sources: L+R input, Digital AESEBU, MPX. DSP based Digital Audio with UAQ (Ultimate Audio Quality), Digital Stereo Coder, Digital Limiter with AMC (Automatic Modulation Control).
Large LCD Color Touch Screen. Featuring for FREE: Configurable Internal Audio Changeover between audio sources, WEB TCP/IP board, SNMP v1, ICS Intelligent Cooling System (up to 40% cooling energy savings), MES Maximized Efficiency System, Standard Tropicalization of the main boards, 4-Band equalizer and basic audio processor with selectable presets in styles such as Pop, Jazz, Rock, etc. (it is not possible to modify the curves or save new ones).
AC Input Power: 90-260 VAC 50/60 Hz Extend Range with PFC. Single Phase.
Output Connector: N.
