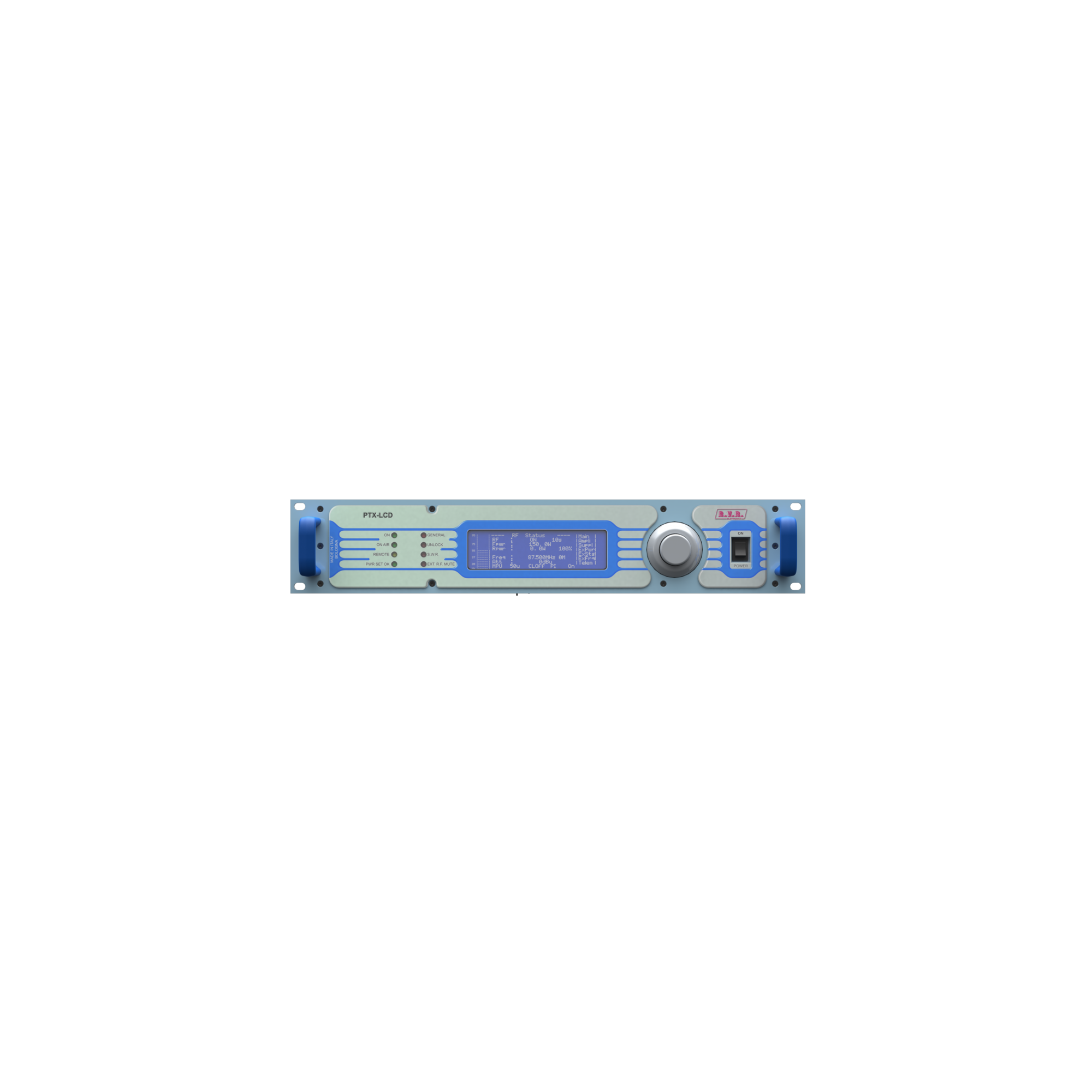

PTX30LCDS

RVR 30W Compact stereo transmitter

AUDIO PERFORMANCE: clear and transparent sound comparable to CD sound quality made possibile thanks to a noise/signal ratio as high as 90dB, low distortion and stereo separation as high as 60dB!

PRIMARY APPLICATION: optimal for use as an independent exciter. Adjustable power output from 0 to 100%.

HARDWARE FEATURES: compact and indeformable thanks to the stainless steel chassis, in 2 rack units only.

INTERFACE CONTROL: totally microprocessor-controlled, easily programmed from menu through a large LCD and useful optical ENCODER.

INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. S/PDIF, TOSLINK, AES/EBU digital audio inputs now are available as standard.

RELIABILITY/CONTINUITY: business continuity is guaranteed by an incredible range and variety of controls, such as Fold-Back control for effective VSRW (Voltage Standing Wave Ratio) protection and IAMLC (Intelligent Automatic Modulation Level Control) to keep modulation level steady.

EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.

REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
