TEX3003A-TFT

Name: TEX3003A-TFT
Brand: RVR
SKU: TEX3003A-TFT
Availability: OutOfStock

RVR

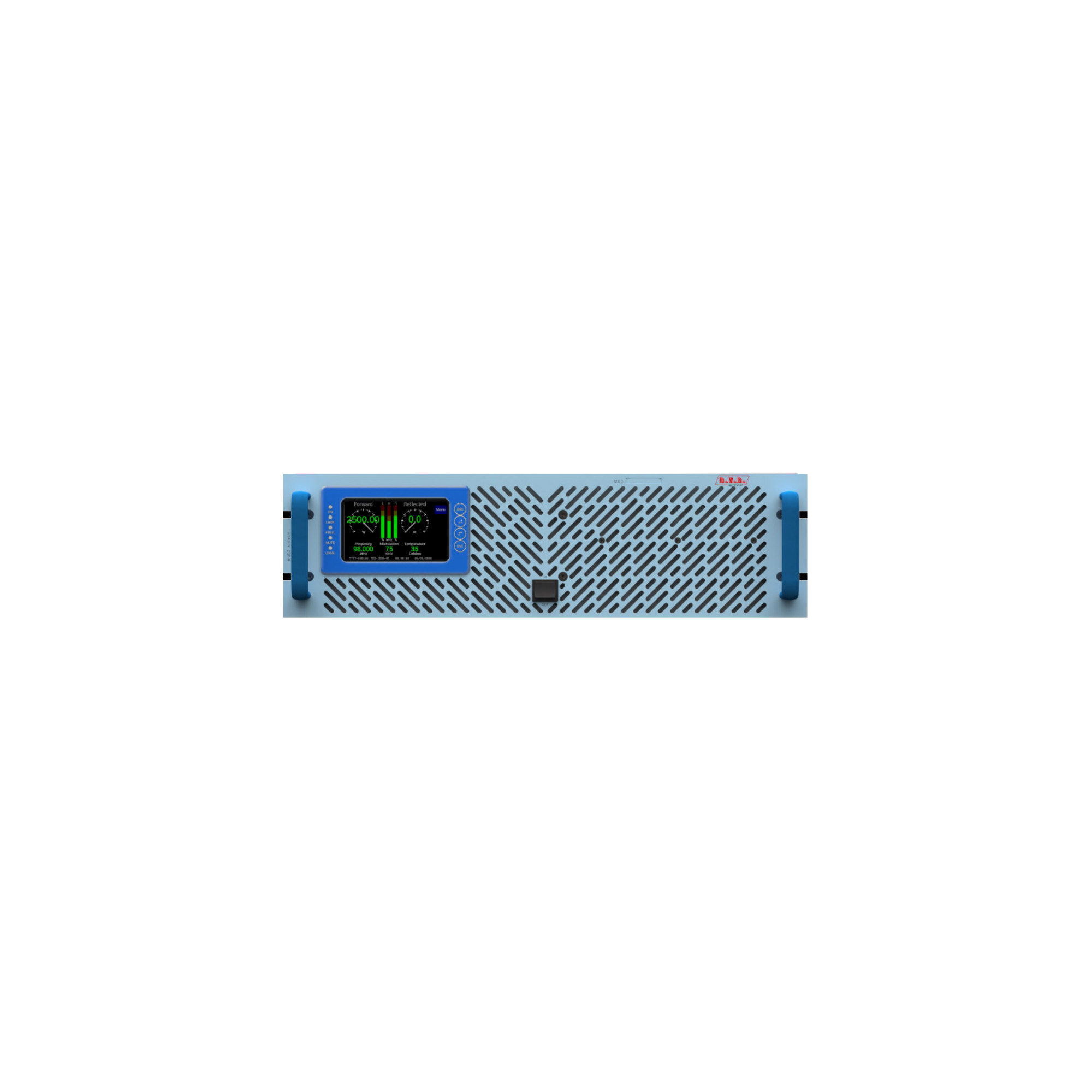

Compact FM Stereo Transmitter TFT Edition 3000W

go to the technical sheet

Available in 15 days

Manufacturer: go to website

Compact FM Transmitter RVR 3000W - Mono - Stereo - Multiplex. It represents the cutting edge technology in full compliance with EC, FCC and CCIR standards.
Easy to configure using the buttons on the front panel equipped with a large LCD display.
This transmitter is able to provide strong continuous power with the highest reliability on the market and is therefore the ideal choice for use in stand-alone applications.

It is characterized by:
° Adjustable output power from 10 to 100%.
° Standard frequency range: 87.5 - 108 MHz, but a special configuration for other bands is possible on request.
° Low distortion and intermodulation values.
° Automatic APC power control that ensures reliable operation.
° Inputs: Analog Stereo L&R, Mono, MPX. (Optional)
° Optional: AES/EBU (MPXd)
° Auxiliary input for SCA / RDS signals.
° RDS encoder option with basic or advanced functionality (option)
° WEB, SNMP2, GSM, serial remote controls (option)

New Features:
° Planar technology on the RF Section for extended durability
° Enhanced ventilation with patented open-cell polimeric air filter
° New control board for ventilation and temperature operations
° Heatsink and re-engineered air cooling system
° New patended power supply for better performances
° New RF Filter with isolated cells for better electro-magnetic compatibility
° Audio management section directly from the front panel
° Embedded RTC Option for automatic power change at specific hours
° Unit noise drastically reduced

GENERALS
Frequency range: 87,5 - 108 MHz
Rated output power 3000 W (± 1dB) Continuously variable by software from 0 to maximum
Modulation type: F300E
Operational Mode: Mono, Stereo, MPX
Working temperature: °C -5 to +60
Working Humidity: max 95% Without condensing
Working Altitude mt 3000 With adequate air evacuation system in site
Frequency programmability: kHz 10
Frequency stability Working Temp.: From -5°C to 50°C ppm ±1
Modulation capability Refered: @ 0dBu for 75kHz kHz 150 Meets or exceeds all FCC and CCIR rules
Pre-emphasis mode: µS 0, 50, 75 Selectable by rear panel dip switches

POWER REQUIREMENTS
AC Supply Voltage: VAC 230 ±15%
AC Apparent Power Consumption: VA 4277
Active Power Consumption: 4285 W
Power Factor: 0,998
Overall Efficiency: Typical 70%
Connector: VDE 16A

MECHANICAL DIMENSIONS
Phisical Dimensions
Front panel width: mm 483 (19”) 19” EIA rack
Front panel height: mm 132 (3 1/2”) 3HE
Overall depth: mm 564
Chassis depth: mm 517
Weight Approx.: 27.5 Kg
Cooling Forced, with internal fan
Acoustic Noise: < 75 dBA

AUDIO INPUTS
Left / Mono
Connector: XLR F
Type: Balanced
Impedance: 10 k or 600 Ohm Selectable by rear panel dip switches
Input Level /Adjust: -12 to +12 dBu Continuosly variable

Right
Connector: XLR F
Type: Balanced
Impedance: 10 k or 600 Ohm Selectable by rear panel dip switches
Input Level /Adjust: -12 to +12 dBu Continuosly variable

MPX
Connector: BNC
Type: Unbalanced
Impedance: 10 k ohm Selectable by rear panel dip switches
Input Level / Adjust -12 to +12 dBu For 75 KHz FM, externally adjustable

SCA/RDS
Connector 2 x BNC
Type Unbalanced
Impedance 10 k Ohm
Subcarier Level @ 0 dBu dB: -17 to -40 For 75 KHz FM, externally adjustable

AES/EBU (optional)
Connector: XLR F
Type: Balanced
Impedance: 110 Ohm
Input Level / Adjust dB: fs 0 to -10 For 75 KHz FM, externally adjustable

TOS/Link (optional)
Connector: TOS-LINk
Type: Optical

OUTPUTS
RF Output
Connector: 7/8”
ImpedanceX: 50 Ohm
RF Monitor Connector: BNC
Impedance: 50 Ohm
Output Level: 0 ± 4 dBm Referred to the RF output

Pilot output
Connector: BNC For RDS and isofrequency synchronizing purpose
Load Impedance Ohm >5 k
Output Level: Vpp 1
