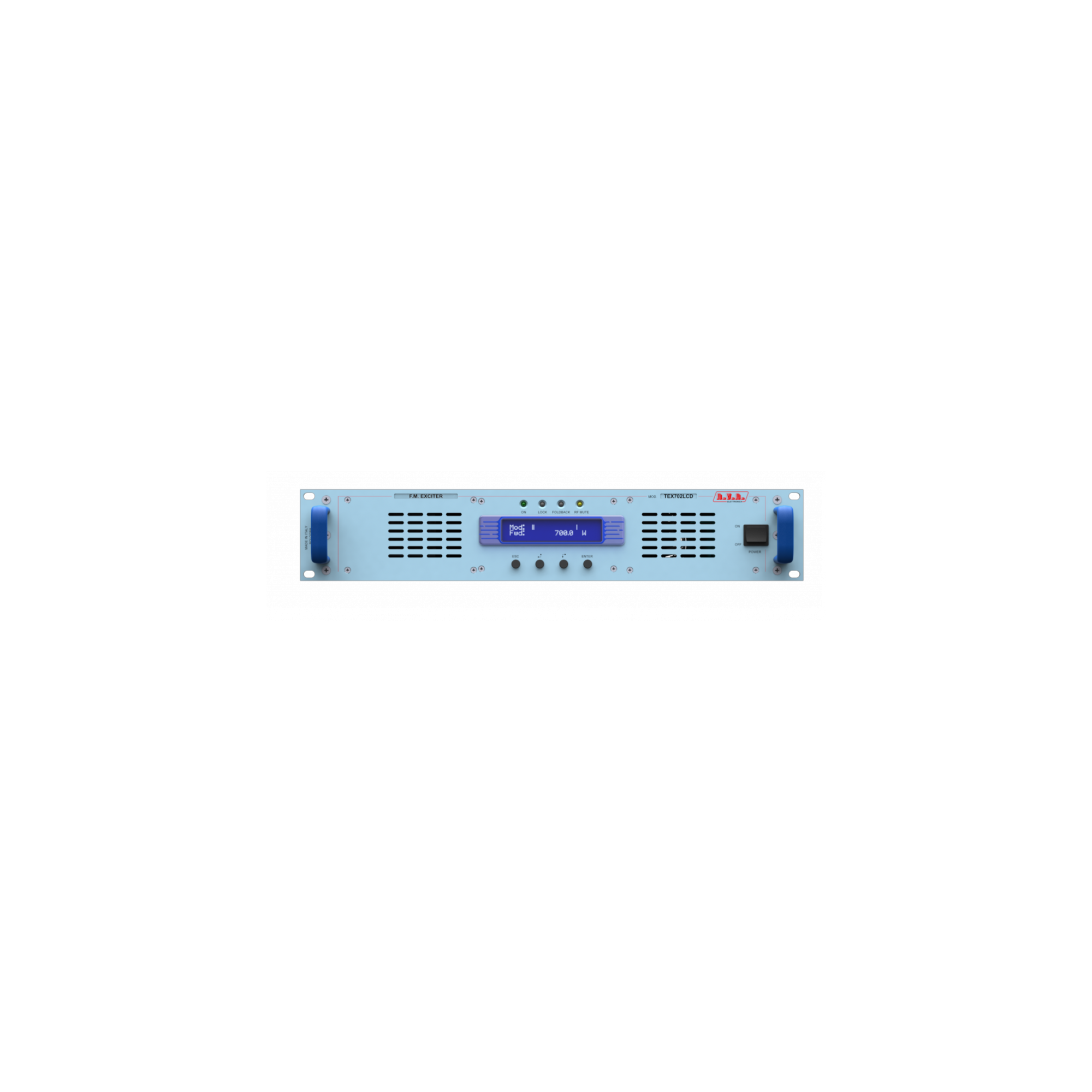

TEX702LCDTLW-E

RVR 700W Compact stereo transmitter

PRIMARY APPLICATION: high quality at a very attractive price. Ideal for use as transmitters in stand-alone applications.
Adjustable power output from 10 to 100%.

HARDWARE FEATURES: compact, non-deformable and light thanks to the stainless steel chassis, in 2 rack units only.

USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation without preselect voltage.
Four pushbuttons for user/device interaction and software that offers a simple, intuitive interface.

RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.

AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.

OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.

EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance.

INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.

INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals.

RDS APPLICATION: built-in RDS encoder with UECP standard functions (option).

REMOTE CONTROL: built-in telemetry system via GSM modem, battery and battery charger or via WEB or via SNMP (option).

REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
